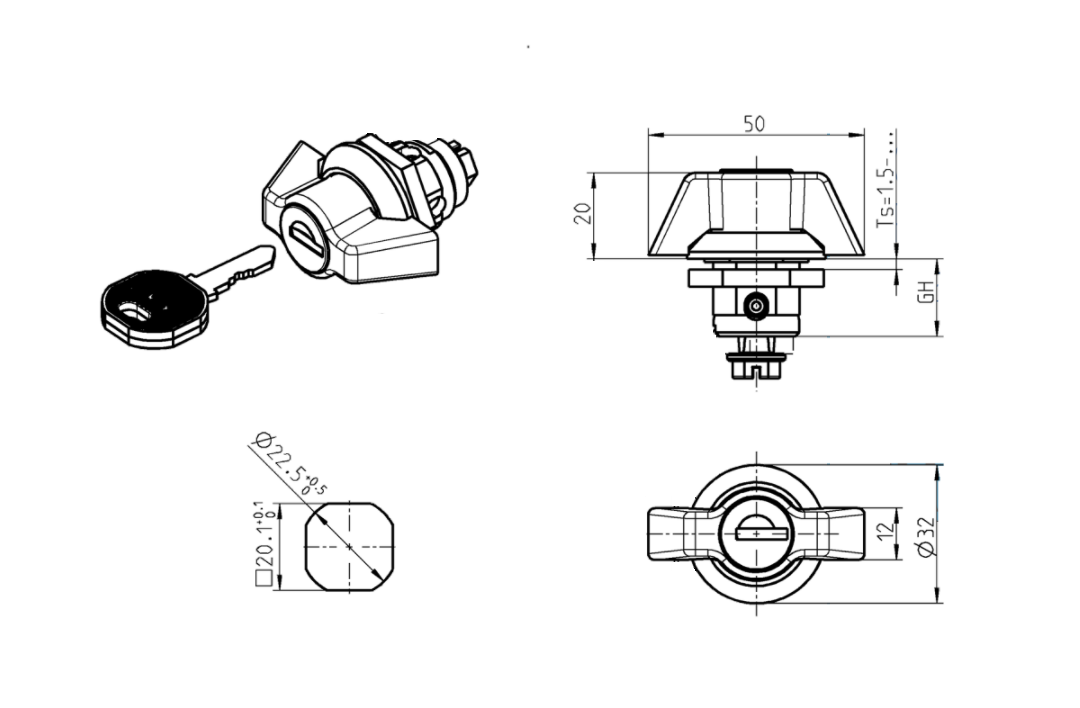

Housing with wing handle, keyed different, die-cast zinc, L=50mm, GH=50mm, plate thickness=1,5-40mm
MT100958
Housing with wing handle manufactured in die-cast zinc and with locking of the type keyed different. The length is 50 mm, the housing height is 50 mm and the plate thickness for mounting is 1,5 mm to 40 mm. Including one key. Surface treatment of the nut is: Electro zinc plated. We offer many different housings, so please contact us if you cannot find a product that fulfill your requirements.
Locking
Keyed different
Material type
Die-cast zinc
Mounting type
Nut
Nut material
Steel
Surface finish
Chrome plated
Sealing
Flat
Type
Wing handle
IP Code
IP65
Diameter in mm
32
Length i mm
50
Housing height in mm - GH
50
Plate thickness, min.
1.5
Plate thickness, max.
40
Long description
Housing with wing handle manufactured in die-cast zinc and with locking of the type keyed different. The length is 50 mm, the housing height is 50 mm and the plate thickness for mounting is 1,5 mm to 40 mm. Including one key. Surface treatment of the nut is: Electro zinc plated. We offer many different housings, so please contact us if you cannot find a product that fulfill your requirements.
