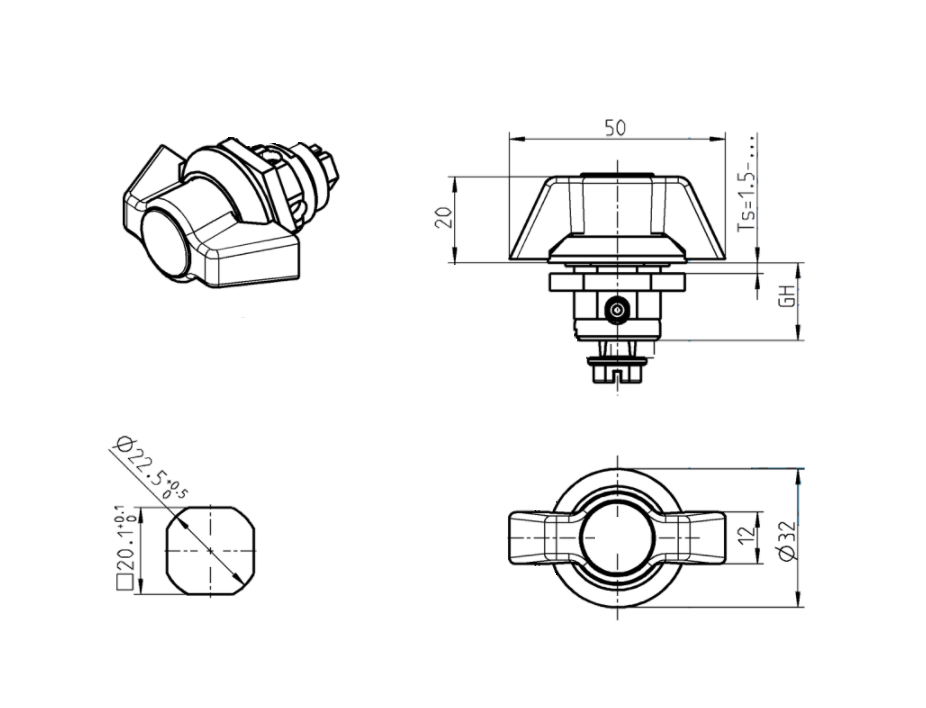

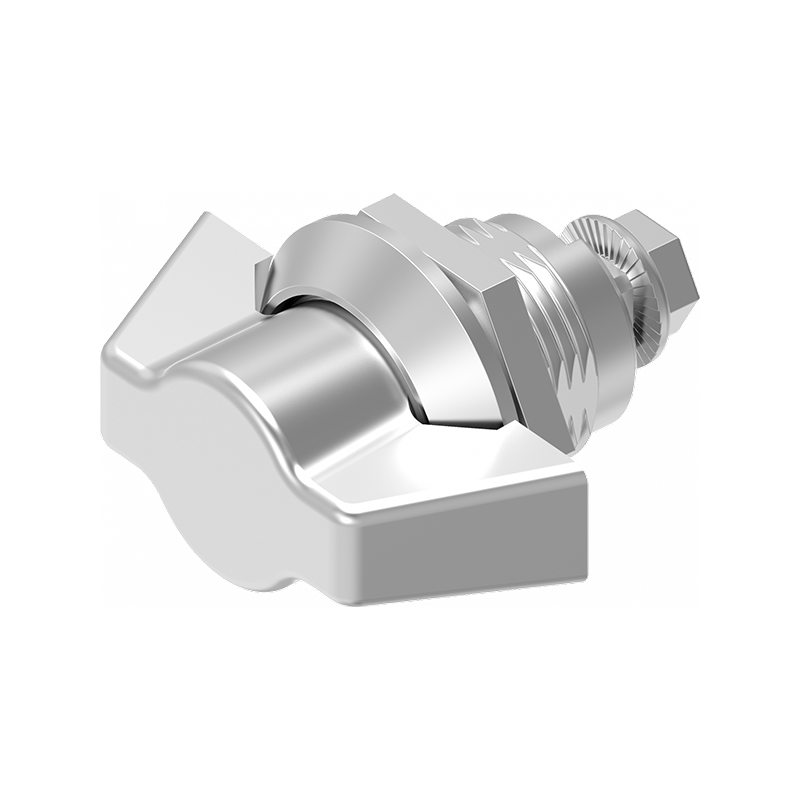

Housing with wing handle, non locking, acid proof stainless steel, L=50mm, GH=18mm, plate thickness=1,5-8mm
MT101304
Housing with wing handle manufactured in acid proof stainless steel and with locking of the type non locking. The length is 50 mm, the housing height is 18 mm and the plate thickness for mounting is 1,5 mm to 8 mm. We offer many different housings, so please contact us if you cannot find a product that fulfill your requirements.
Locking
Non locking
Material
AISI 316
Material type
Acid proof Stainless Steel
Mounting type
Nut
Sealing
Flat
Type
Wing handle
IP Code
IP65
Diameter in mm
32
Length in mm
50
Housing height in mm - GH
18
Plate thickness min.
1.5
Plate thickness max.
8
Long description
Housing with wing handle manufactured in acid proof stainless steel and with locking of the type non locking. The length is 50 mm, the housing height is 18 mm and the plate thickness for mounting is 1,5 mm to 8 mm. We offer many different housings, so please contact us if you cannot find a product that fulfill your requirements.
