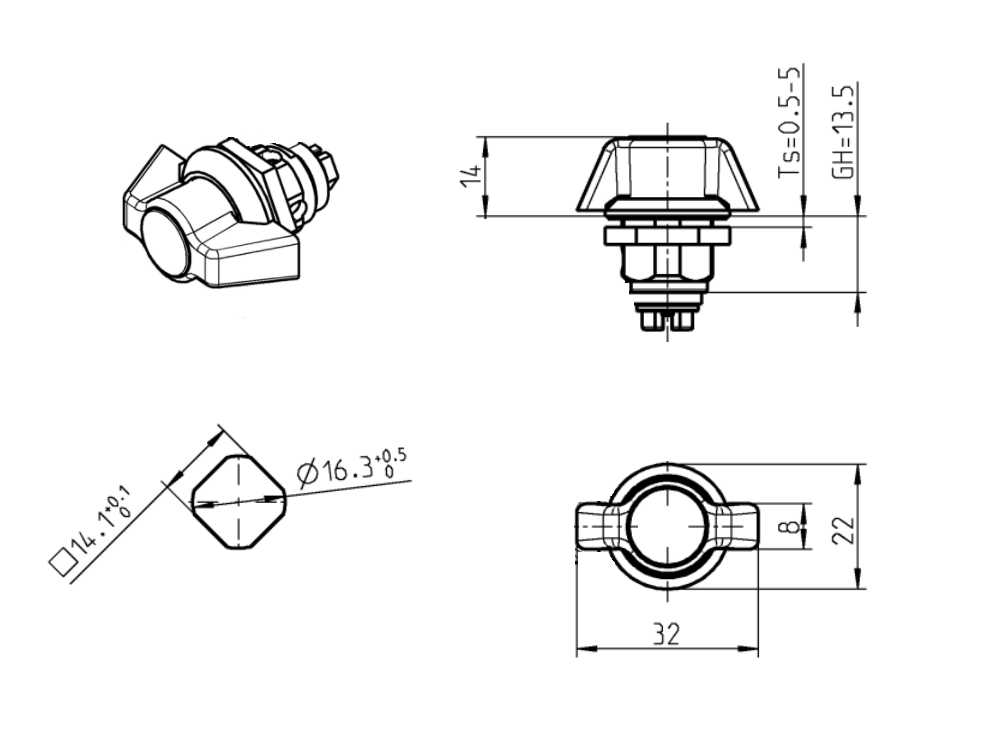

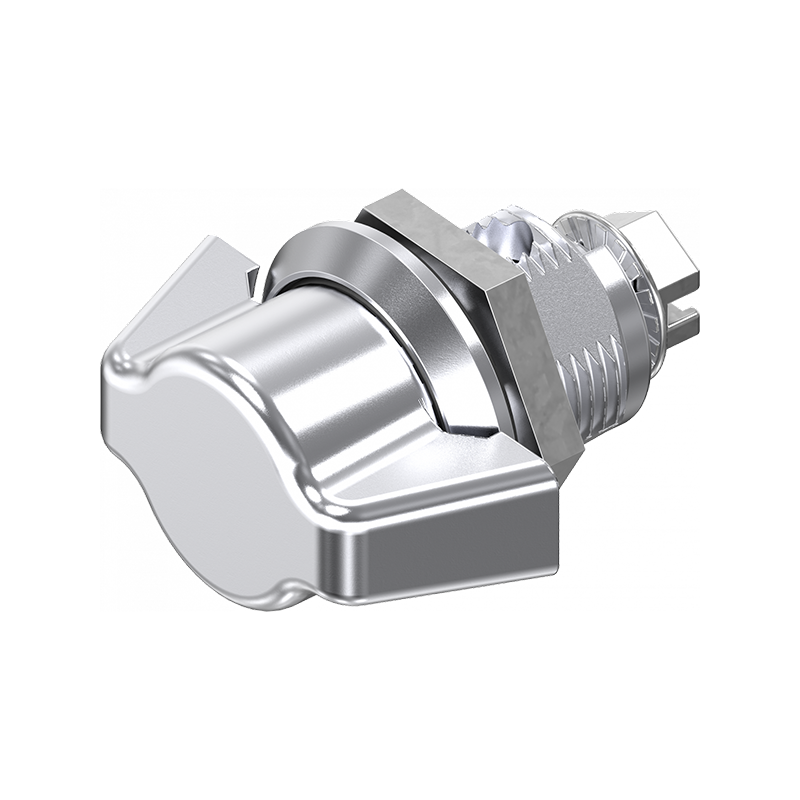

Housing with wing handle, non locking, die-cast zinc, L=32mm, GH=13,5mm, plate thickness=0,5-5mm
MT101899
Housing with wing handle manufactured in die-cast zinc and with locking of the type non locking. The length is 32 mm, the housing height is 13,5 mm and the plate thickness for mounting is 0,5 mm to 5 mm. Surface treatment of the nut is: Electro zinc plated. Only suitable to use with components from 1022 series. We offer many different housings, so please contact us if you cannot find a product that fulfill your requirements.
Locking
Non locking
Material type
Die-cast zinc
Mounting type
Nut
Nut material
Steel
Surface finish
Chrome plated
Sealing
Flat
Series
1022
Type
Wing handle
IP Code
IP65
Diameter in mm
22
Length i mm
32
Housing height in mm - GH
13.5
Plate thickness, min.
0.5
Plate thickness, max.
5
Long description
Housing with wing handle manufactured in die-cast zinc and with locking of the type non locking. The length is 32 mm, the housing height is 13,5 mm and the plate thickness for mounting is 0,5 mm to 5 mm. Surface treatment of the nut is: Electro zinc plated. Only suitable to use with components from 1022 series. We offer many different housings, so please contact us if you cannot find a product that fulfill your requirements.
