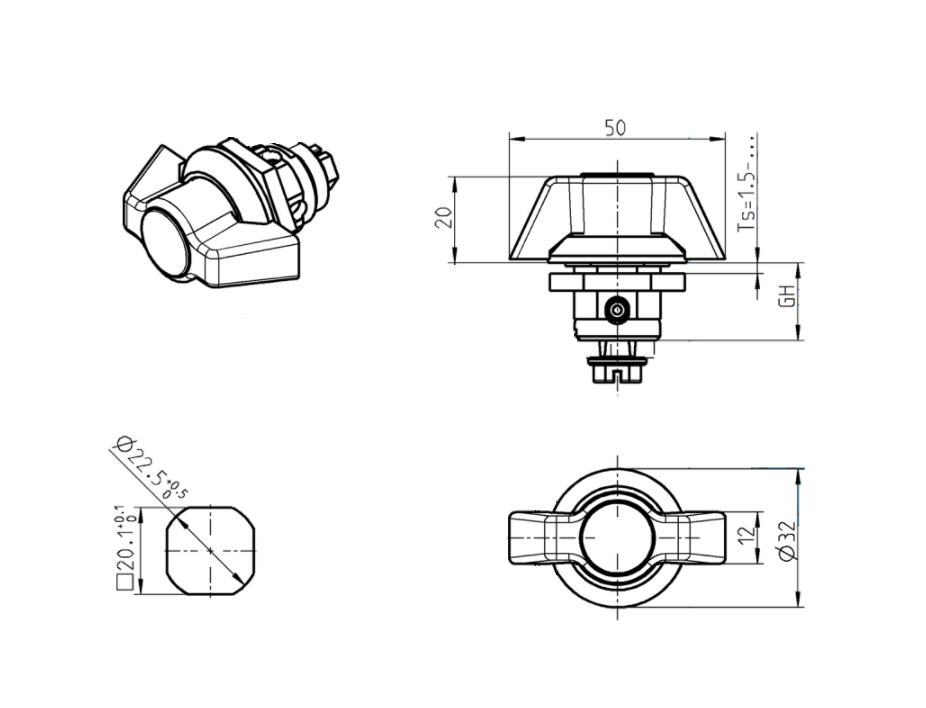

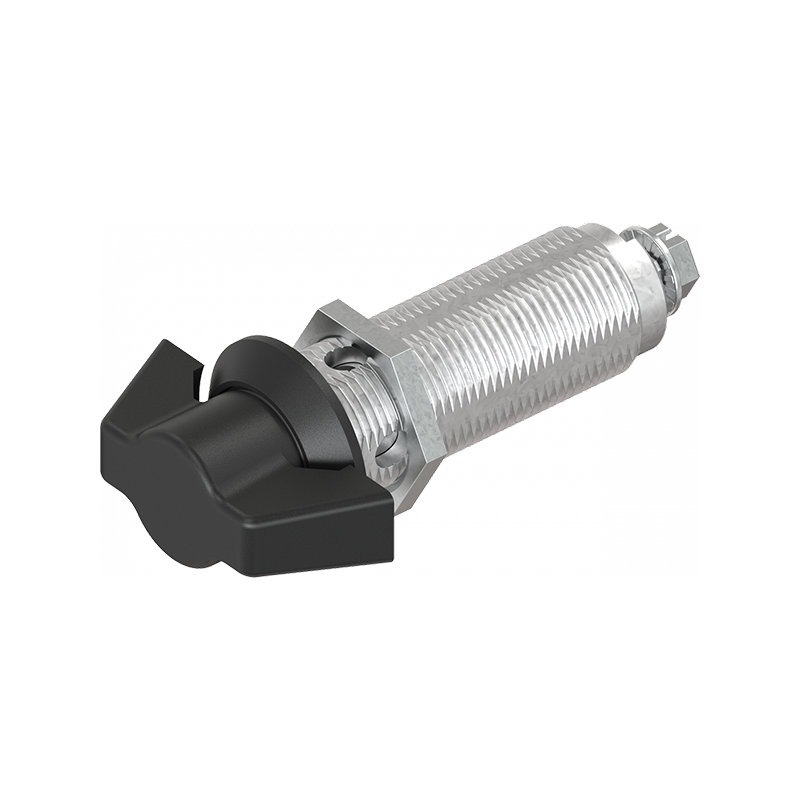

Housing with wing handle, non locking, die-cast zinc, L=50mm, GH=60mm, plate thickness=1,5-50mm
MT101286
Housing with wing handle manufactured in die-cast zinc and with locking of the type non locking. The length is 50 mm, the housing height is 60 mm and the plate thickness for mounting is 1,5 mm to 50 mm. Surface treatment of the nut is: Electro zinc plated. We offer many different housings, so please contact us if you cannot find a product that fulfill your requirements.
Locking
Non locking
Knob material
Glass fiber reinforced polyamide
Material type
Die-cast zinc
Mounting type
Nut
Nut material
Steel
Surface finish
Black powder coated
Sealing
Flat
Type
Wing handle
IP Code
IP65
Diameter in mm
32
Length in mm
50
Housing height in mm - GH
60
Plate thickness min.
1.5
Plate thickness max.
50
Long description
Housing with wing handle manufactured in die-cast zinc and with locking of the type non locking. The length is 50 mm, the housing height is 60 mm and the plate thickness for mounting is 1,5 mm to 50 mm. Surface treatment of the nut is: Electro zinc plated. We offer many different housings, so please contact us if you cannot find a product that fulfill your requirements.
