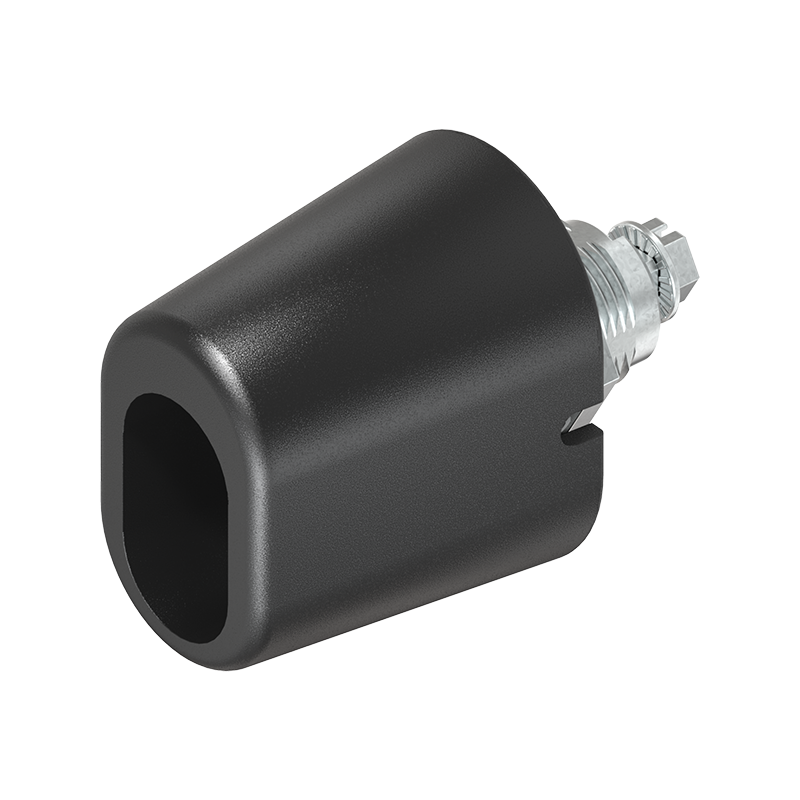

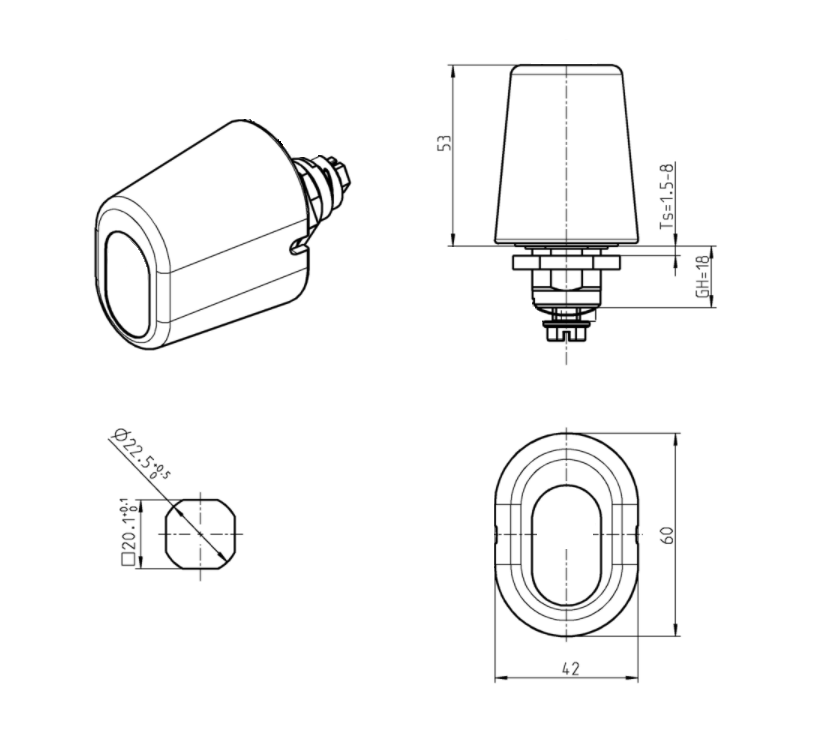

Housing with Wing handle, non locking, die-cast zinc, L=60mm, GH=18mm, plate thickness=1,5-8mm
MT101294
Housing with Wing handle manufactured in die-cast zinc and with locking of the type non locking. The length is 60 mm, the housing height is 18 mm and the plate thickness for mounting is 1,5 mm to 8 mm. For oval ASSA cylinder. Surface treatment of the nut is: Electro zinc plated. We offer many different housings, so please contact us if you cannot find a product that fulfill your requirements.
Locking
Non locking
Knob material
Glass fiber reinforced polyamide
Material type
Die-cast zinc
Mounting type
Nut
Nut material
Steel
Surface finish
Electro zinc plated
Sealing
Flat
Type
Wing handle
Diameter in mm
0
Height in mm
0
Length in mm
60
Housing height in mm - GH
18
Plate thickness min.
1.5
Plate thickness max.
8
Long description
Housing with Wing handle manufactured in die-cast zinc and with locking of the type non locking. The length is 60 mm, the housing height is 18 mm and the plate thickness for mounting is 1,5 mm to 8 mm. For oval ASSA cylinder. Surface treatment of the nut is: Electro zinc plated. We offer many different housings, so please contact us if you cannot find a product that fulfill your requirements.
