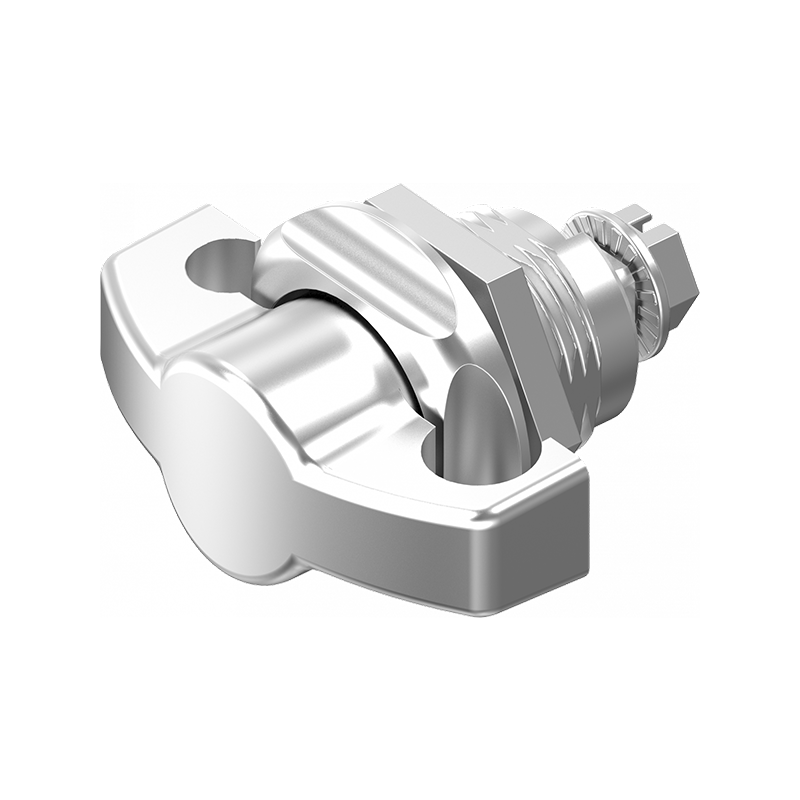

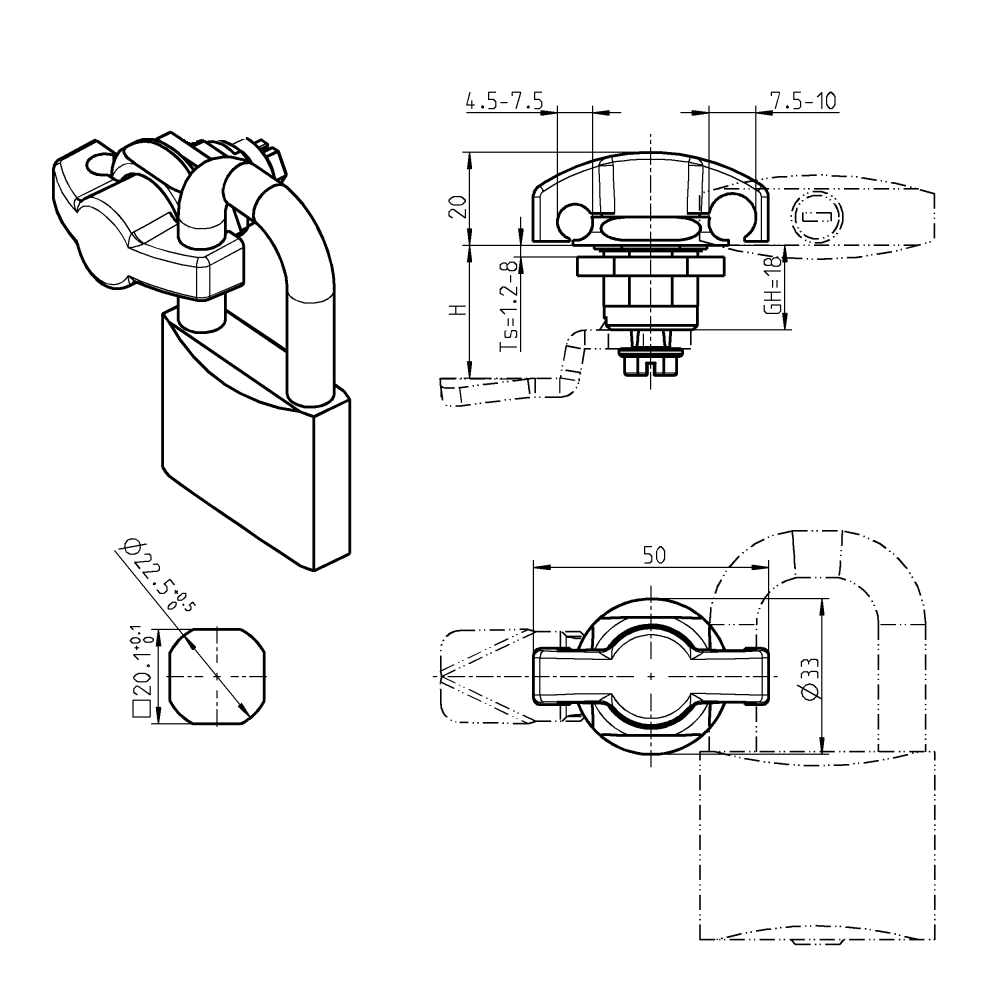

Housing with wing handle, padlock, acid proof stainless steel, L=50mm, GH=18mm, plate thickness=1,2-8mm
MT101090
Housing with wing handle manufactured in acid proof stainless steel and with locking of the type padlock. The length is 50 mm, the housing height is 18 mm and the plate thickness for mounting is 1,2 mm to 8 mm. Material of the nut is AISI 316Ti. We offer many different housings, so please contact us if you cannot find a product that fulfill your requirements.
Locking
Padlock
Material
AISI 316
Material type
Acid proof Stainless Steel
Mounting type
Nut
Nut material
Sealing
Flat
Type
Wing handle
IP Code
IP65
Diameter in mm
33
Length in mm
50
Housing height in mm - GH
18
Plate thickness min.
1.2
Plate thickness max.
8
Long description
Housing with wing handle manufactured in acid proof stainless steel and with locking of the type padlock. The length is 50 mm, the housing height is 18 mm and the plate thickness for mounting is 1,2 mm to 8 mm. Material of the nut is AISI 316Ti. We offer many different housings, so please contact us if you cannot find a product that fulfill your requirements.
Product data
