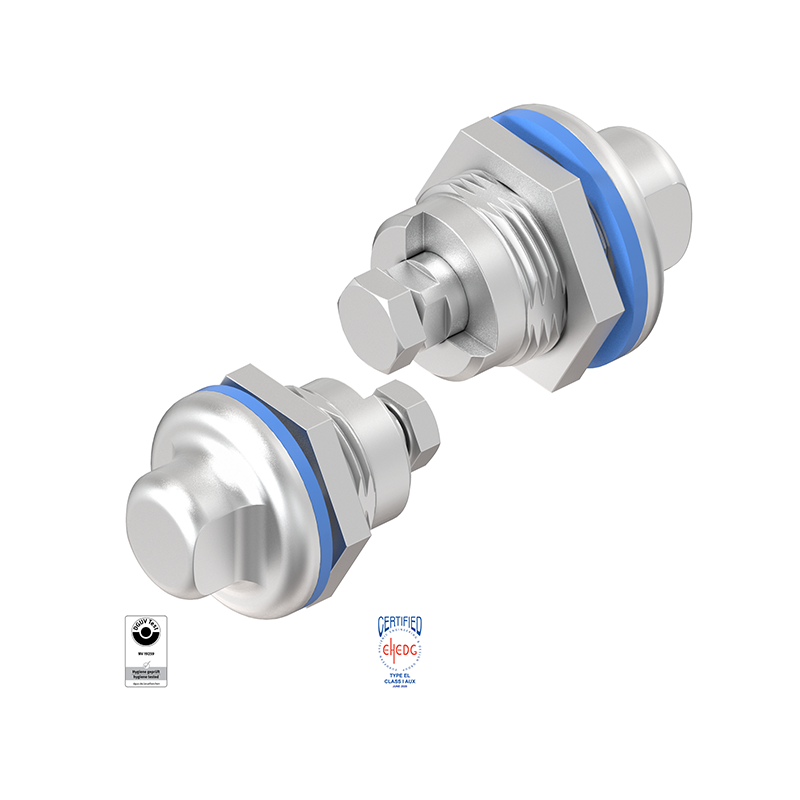

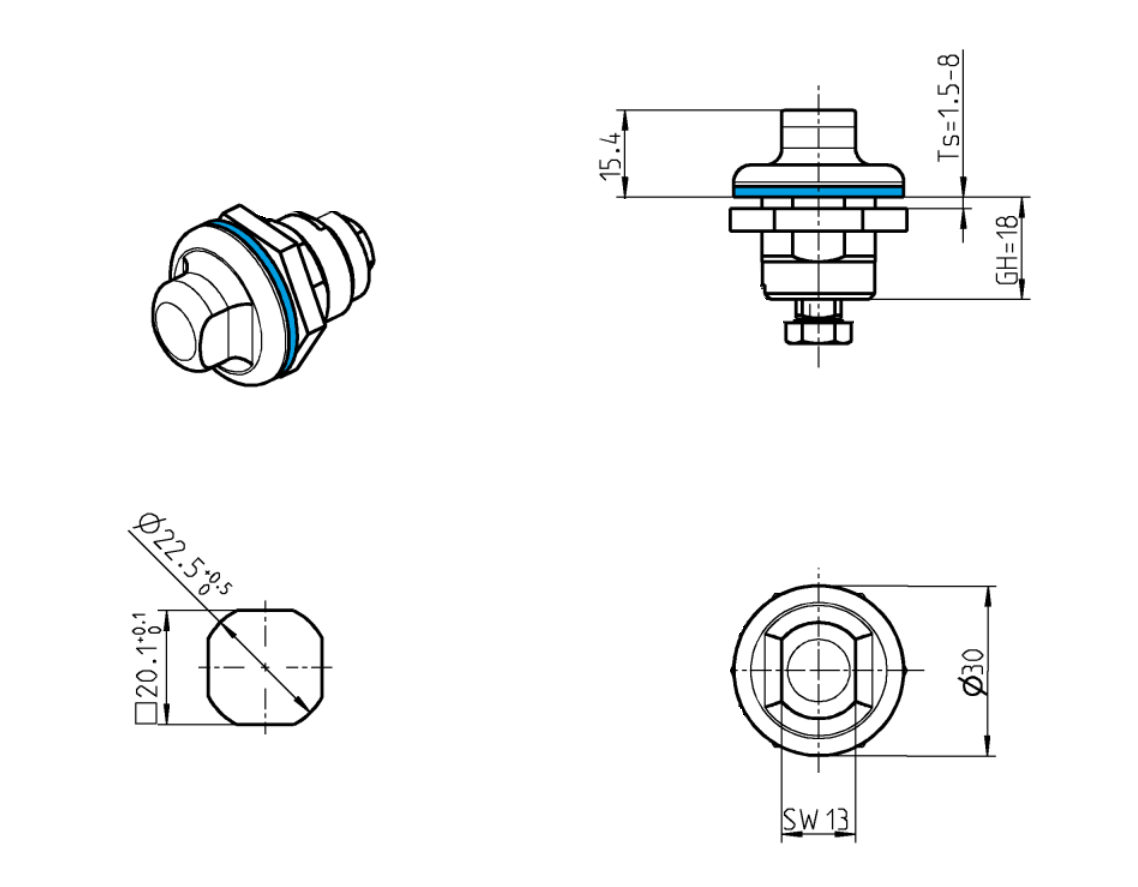

Hygienic Latch, acid proof stainless steel, D=30mm, GH=18mm, plate thickness=1,5-8mm
MT101409
Hygienic Latch fremstillet i acid proof stainless steel with a diameter of 30 mm and a housing height of 18 mm. The latch can be mounted through plates with a thickness in the interval 1,5 mm to 8 mm.
We offer many types of latches and locks, so please contact us if you cannot find a product that fits your requirements.
The quarter turns for hygienic areas meet the hygiene requirement acc. to DIN EN 1672-2, DIN EN 14159 and EHEDG Doc. 8.
The gaskets meet the requirements of the FDA 21 CFR 177.2600 and VO 1935/2004.We offer many types of latches and locks, so please contact us if you cannot find a product that fits your requirements.
Compression
No
Material
AISI 316L
Material type
Acid proof Stainless Steel
Mounting type
Nut
Nut material
Stainless steel
Sealing
Flat
Sector
Food and medical
Type
SW13
IP Code
IP69K
Diameter in mm
30
Housing height in mm - GH
18
Plate thickness min.
1.5
Plate thickness max.
8
Long description
Hygienic Latch fremstillet i acid proof stainless steel with a diameter of 30 mm and a housing height of 18 mm. The latch can be mounted through plates with a thickness in the interval 1,5 mm to 8 mm.
We offer many types of latches and locks, so please contact us if you cannot find a product that fits your requirements.
The quarter turns for hygienic areas meet the hygiene requirement acc. to DIN EN 1672-2, DIN EN 14159 and EHEDG Doc. 8.
The gaskets meet the requirements of the FDA 21 CFR 177.2600 and VO 1935/2004.We offer many types of latches and locks, so please contact us if you cannot find a product that fits your requirements.
