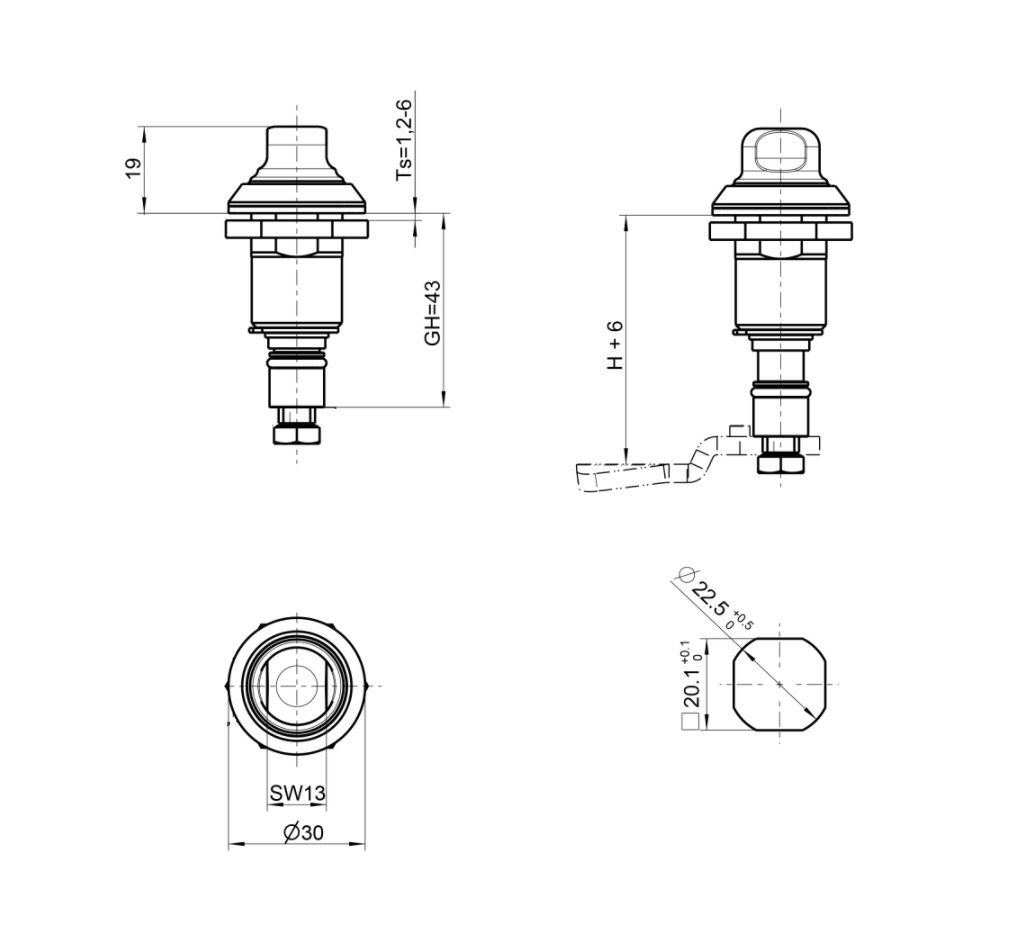

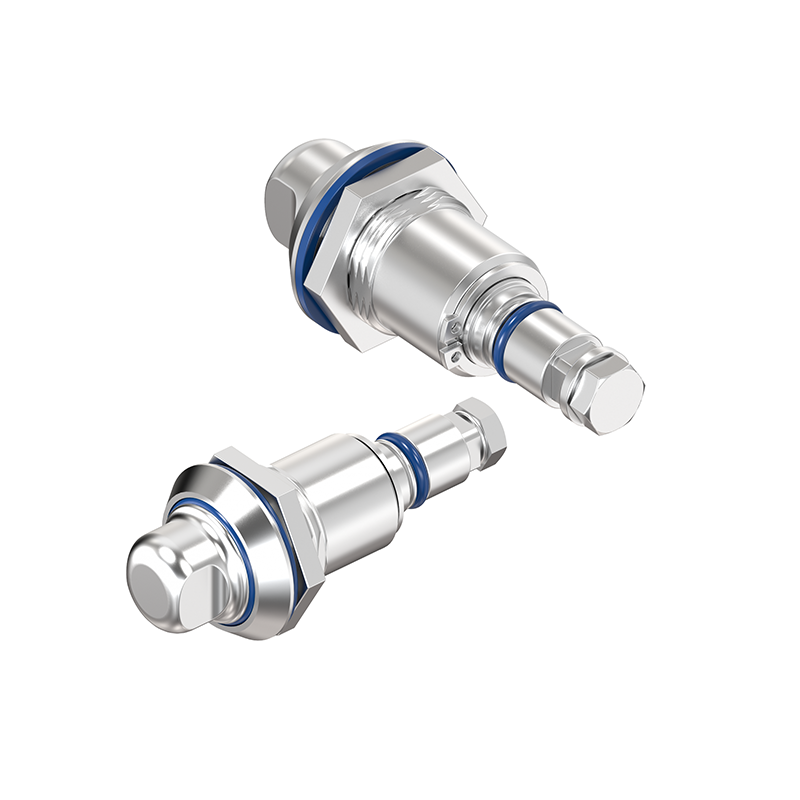

Hygienic Latch, acid proof stainless steel, D=30mm, GH=43mm, plate thickness=1,2-6mm
MT101417
Hygienic Latch fremstillet i acid proof stainless steel with a diameter of 30 mm and a housing height of 43 mm. The latch can be mounted through plates with a thickness in the interval 1,2 mm to 6 mm.
We offer many types of latches and locks, so please contact us if you cannot find a product that fits your requirements.
The quarter turns for hygienic areas meet the hygiene requirement acc. to DIN EN 1672-2 and DIN EN 14159.
This article can achieve complete IP 69K on request with a sleeve nut with seal. Tamper and vibration-proof.
Cam is not included.We offer many types of latches and locks, so please contact us if you cannot find a product that fits your requirements.
Other approvals
DIN EN 61373
Compression
Yes
Material
AISI 316L
Material type
Acid proof Stainless Steel
Mounting type
Nut
Sealing
Flat
Sector
Food
Type
SW13
IP Code
IP65
Stroke +
6
Diameter in mm
30
Height in mm
0
Housing height in mm - GH
43
Plate thickness min.
1.2
Plate thickness max.
6
Long description
Hygienic Latch fremstillet i acid proof stainless steel with a diameter of 30 mm and a housing height of 43 mm. The latch can be mounted through plates with a thickness in the interval 1,2 mm to 6 mm.
We offer many types of latches and locks, so please contact us if you cannot find a product that fits your requirements.
The quarter turns for hygienic areas meet the hygiene requirement acc. to DIN EN 1672-2 and DIN EN 14159.
This article can achieve complete IP 69K on request with a sleeve nut with seal. Tamper and vibration-proof.
Cam is not included.We offer many types of latches and locks, so please contact us if you cannot find a product that fits your requirements.
