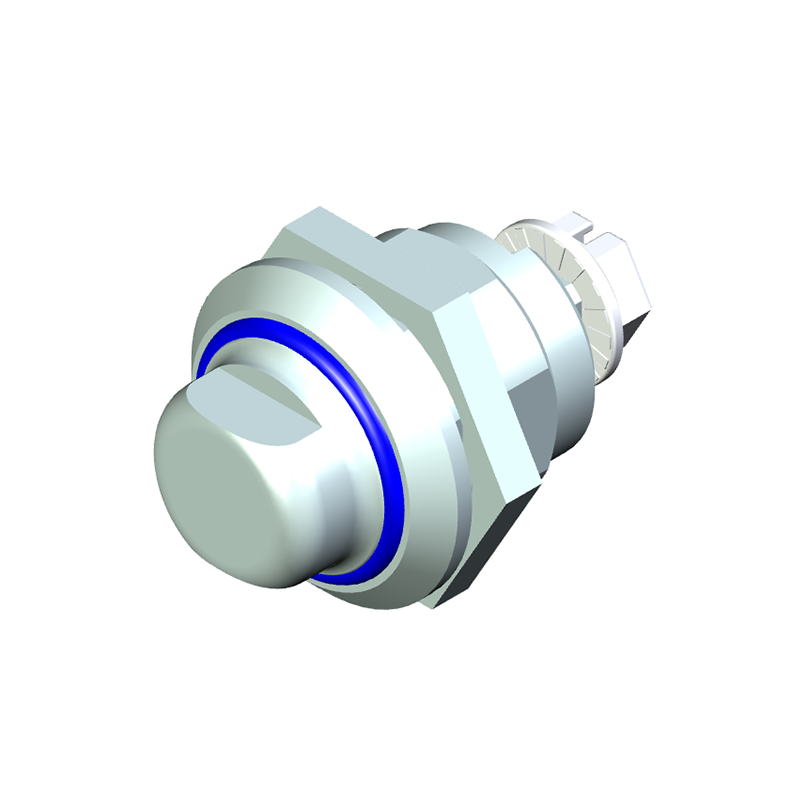

Hygienic Latch, stainless steel, D=28mm, GH=18mm, plate thickness=1,5-8mm
MT101411

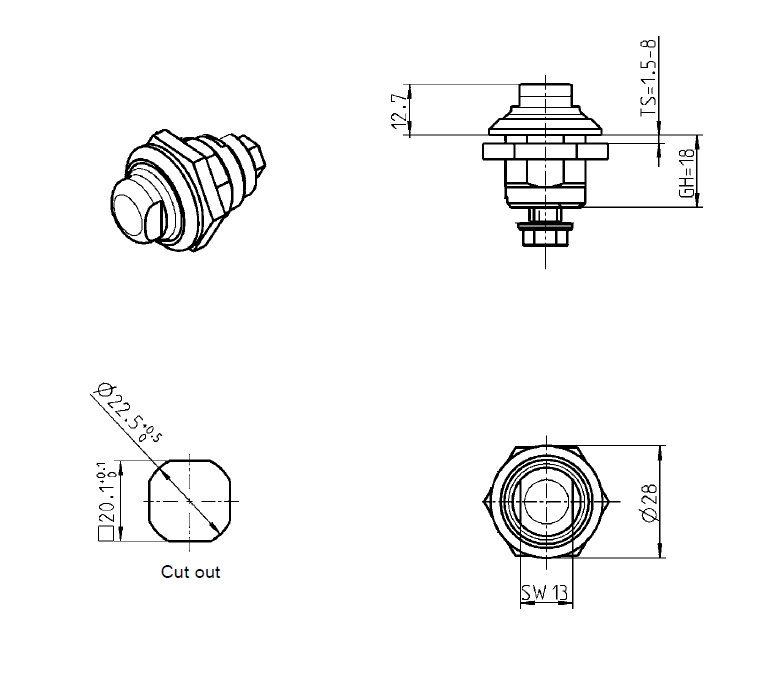

Hygienic Latch fremstillet i stainless steel with a diameter of 28 mm and a housing height of 18 mm. The latch can be mounted through plates with a thickness in the interval 1,5 mm to 8 mm.
The quarter turns for hygienic areas meet the hygiene requirement acc. to DIN EN 1672-2 and DIN EN 14159.
We offer many types of latches and locks, so please contact us if you cannot find a product that fits your requirements.
The quarter turns for hygienic areas meet the hygiene requirement acc. to DIN EN 1672-2 and DIN EN 14159.
We offer many types of latches and locks, so please contact us if you cannot find a product that fits your requirements.
Compression
No
Material
AISI 303
Material type
Stainless steel
Mounting type
Nut
Sealing
Foamed
Sector
Food
Type
SW13
IP Code
Diameter in mm
28
Height in mm
0
Housing height in mm - GH
18
Plate thickness min.
1.5
Plate thickness max.
8
Long description
Hygienic Latch fremstillet i stainless steel with a diameter of 28 mm and a housing height of 18 mm. The latch can be mounted through plates with a thickness in the interval 1,5 mm to 8 mm.
The quarter turns for hygienic areas meet the hygiene requirement acc. to DIN EN 1672-2 and DIN EN 14159.
We offer many types of latches and locks, so please contact us if you cannot find a product that fits your requirements.
The quarter turns for hygienic areas meet the hygiene requirement acc. to DIN EN 1672-2 and DIN EN 14159.
We offer many types of latches and locks, so please contact us if you cannot find a product that fits your requirements.
