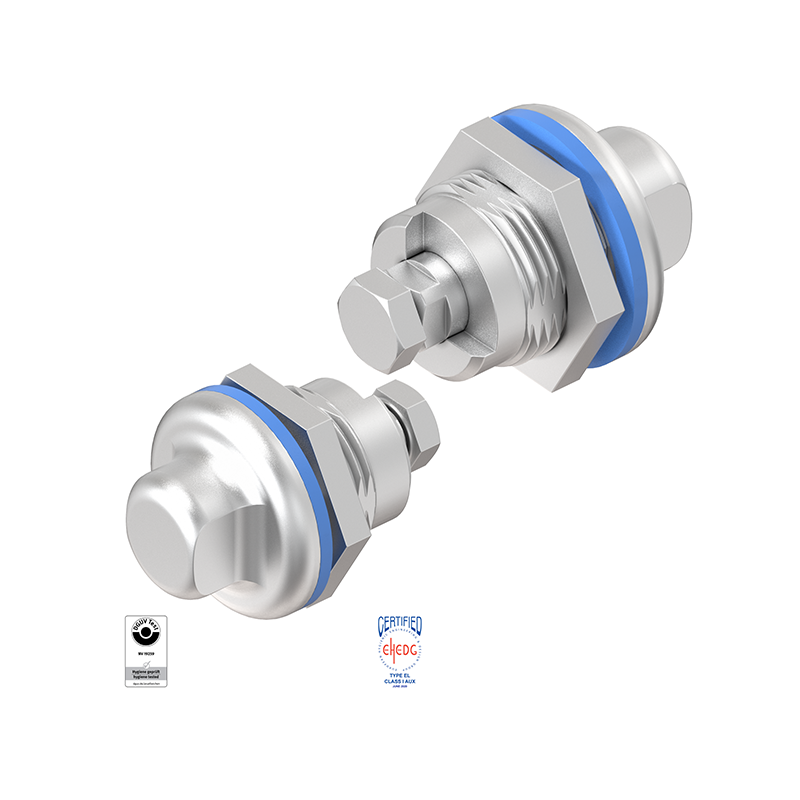

Hygienic Latch, stainless steel, D=30mm, GH=18mm, plate thickness=1,5-8mm

MT101410
Hygienic Latch fremstillet i stainless steel with a diameter of 30 mm and a housing height of 18 mm. The latch can be mounted through plates with a thickness in the interval 1,5 mm to 8 mm.
The quarter turns for hygienic areas meet the hygiene requirement acc. to DIN EN 1672-2, DIN EN 14159 and EHEDG Doc. 8.
The gaskets meet the requirements of the FDA 21 CFR 177.2600 and VO 1935/2004.
We offer many types of latches and locks, so please contact us if you cannot find a product that fits your requirements.
Compression
No
Material
AISI 303
Material type
Stainless steel
Mounting type
Nut
Nut material
Stainless steel
Sealing
Flat
Sector
Food
Type
SW13
IP Code
Diameter in mm
30
Height in mm
0
Housing height in mm - GH
18
Plate thickness min.
1.5
Plate thickness max.
8
Long description
Hygienic Latch fremstillet i stainless steel with a diameter of 30 mm and a housing height of 18 mm. The latch can be mounted through plates with a thickness in the interval 1,5 mm to 8 mm.
The quarter turns for hygienic areas meet the hygiene requirement acc. to DIN EN 1672-2, DIN EN 14159 and EHEDG Doc. 8.
The gaskets meet the requirements of the FDA 21 CFR 177.2600 and VO 1935/2004.
We offer many types of latches and locks, so please contact us if you cannot find a product that fits your requirements.
