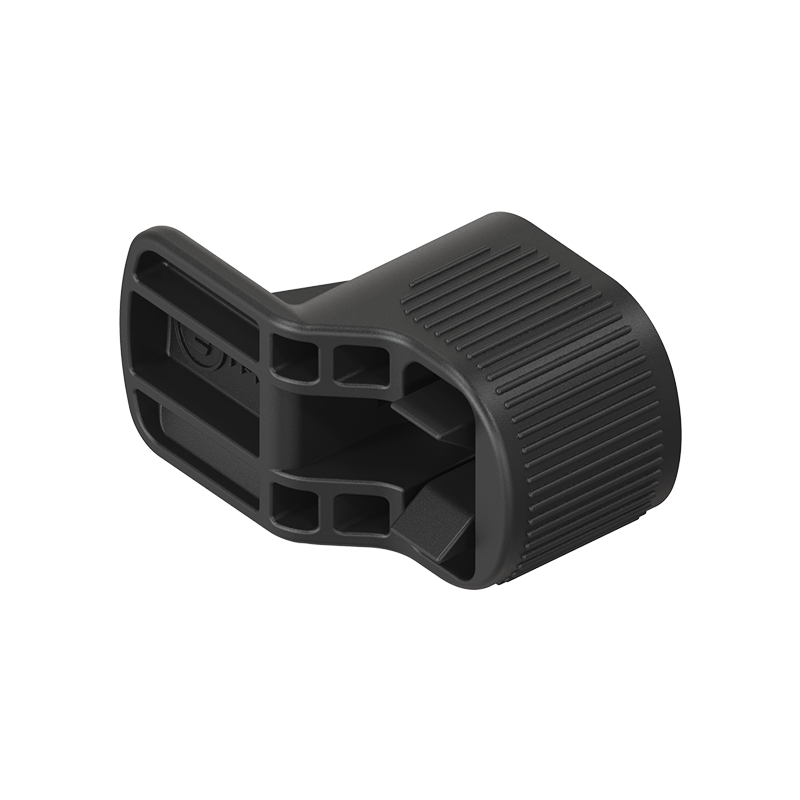

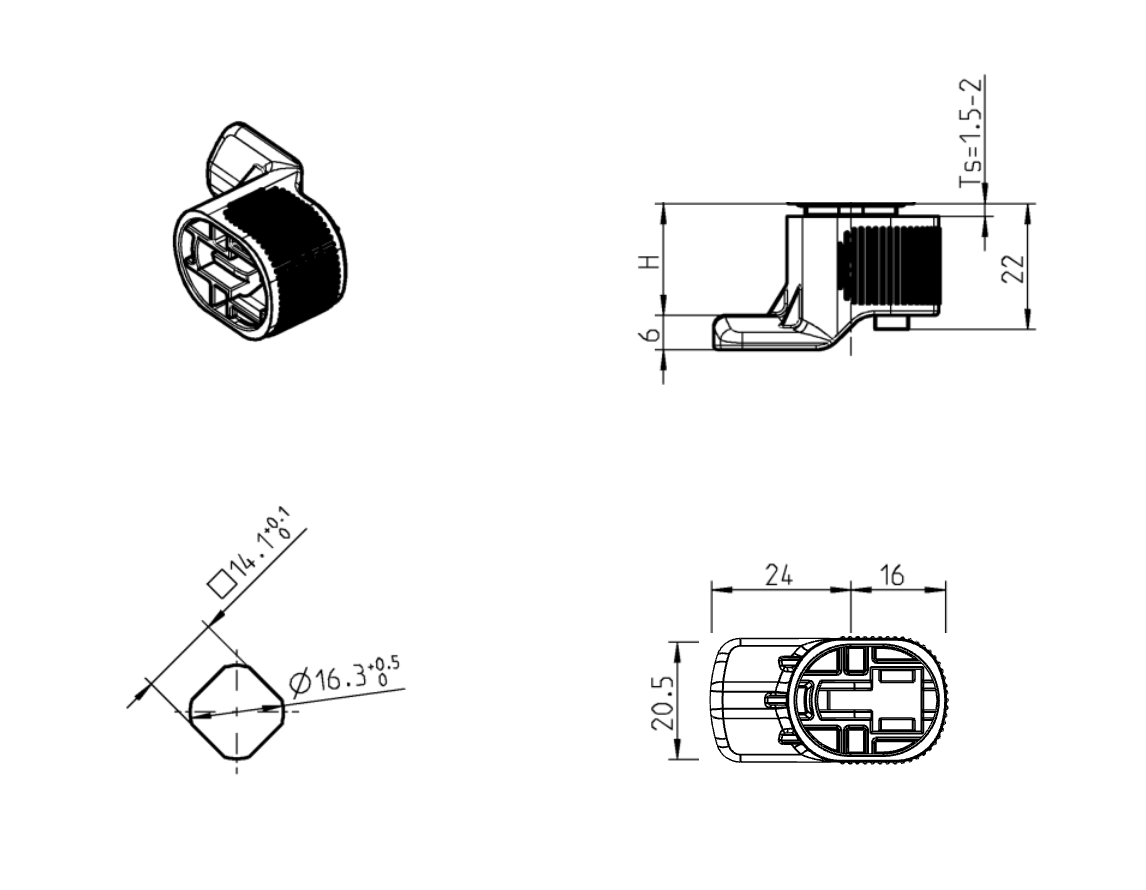

Housings with integrated cam for quick mounting, glass fiber reinforced polyamide, series 1022, Hole distance=19,5mm, plate thickness=1,5-2mm, class IP69K
MT101858
Type housings with integrated cam for quick mounting manufactured in glass fiber reinforced polyamide. The product is from series 1022 and is mounted by snap-in. The product can be mounted in plates with a thickness within 1,5-2mm and fulfil IP code IP69K
Components
Housing with integrated cam
Material type
Glass fiber reinforced polyamide
Mounting type
Snap-in
Series
1022
IP Code
IP69K
Diameter in mm
0
H-measure
19.5
Height in mm
0
Length in mm
24
Plate thickness min.
1.5
Plate thickness max.
2
Nettovægt
0.0079
Varekode
3925901000
Lande-/områdekode for oprindelse
BA
Long description
Type housings with integrated cam for quick mounting manufactured in glass fiber reinforced polyamide. The product is from series 1022 and is mounted by snap-in. The product can be mounted in plates with a thickness within 1,5-2mm and fulfil IP code IP69K
