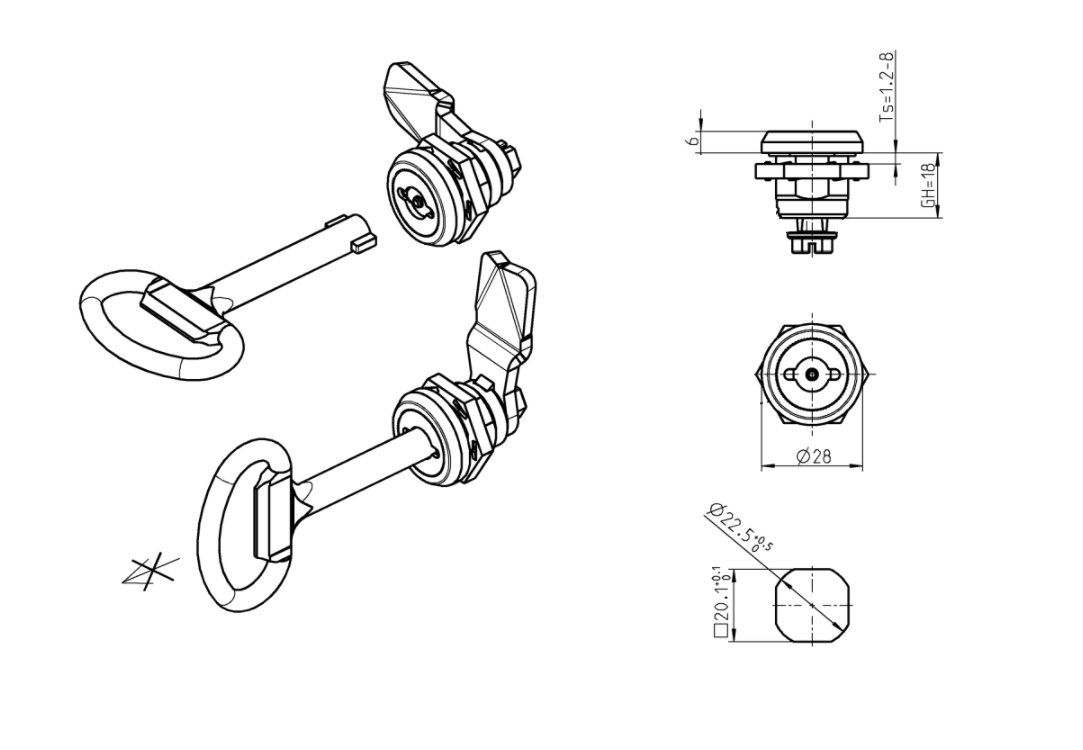

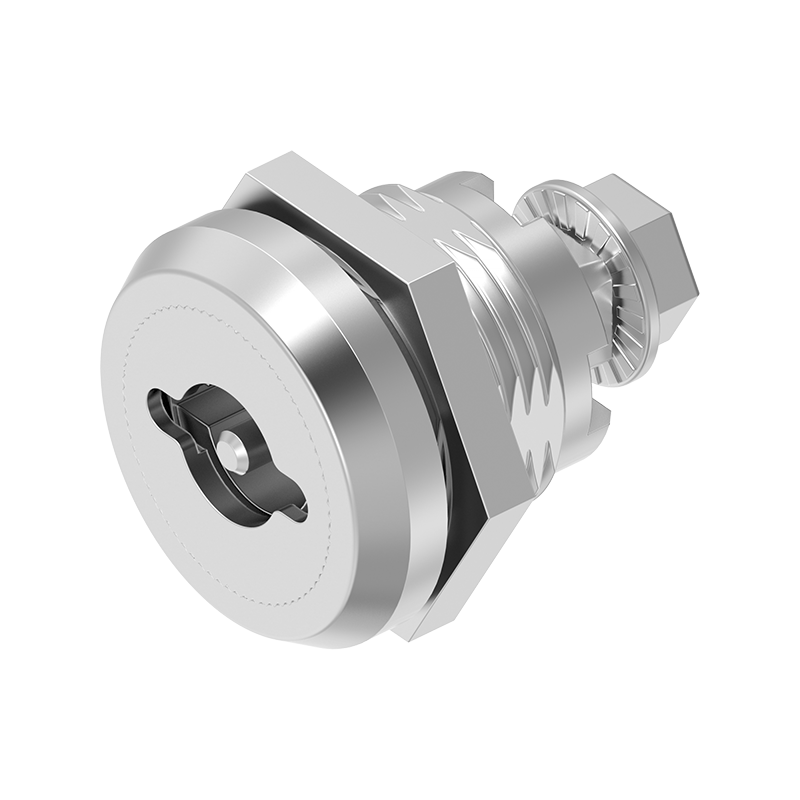

Safety lock, stainless steel, type 'double bit 3', left, D=28mm, GH=18mm, plate thickness=1,2-8mm
MT101339
Safety lock manufactured in stainless steel the product is of the type 'Double bit 3'. The diameter is 28 mm, the housing height is 18 mm and the plate thickness for mounting is 1,2 mm to 8 mm. Key and cam are not included. We offer many types of locks so please contact us if you cannot find a products that fits your requirements.
Fire retardant
DIN EN 45545-2 with E20
Mask
No
Material
AISI 303
Material type
Stainless steel
Mounting type
Nut
Sealing
Flat
Dust cap
No
Type
DIN 3
IP Code
IP65
Version
Left
Diameter in mm
28
Height in mm
0
Housing height in mm - GH
18
Plate thickness min.
1.2
Plate thickness max.
8
Long description
Safety lock manufactured in stainless steel the product is of the type 'Double bit 3'. The diameter is 28 mm, the housing height is 18 mm and the plate thickness for mounting is 1,2 mm to 8 mm. Key and cam are not included. We offer many types of locks so please contact us if you cannot find a products that fits your requirements.
