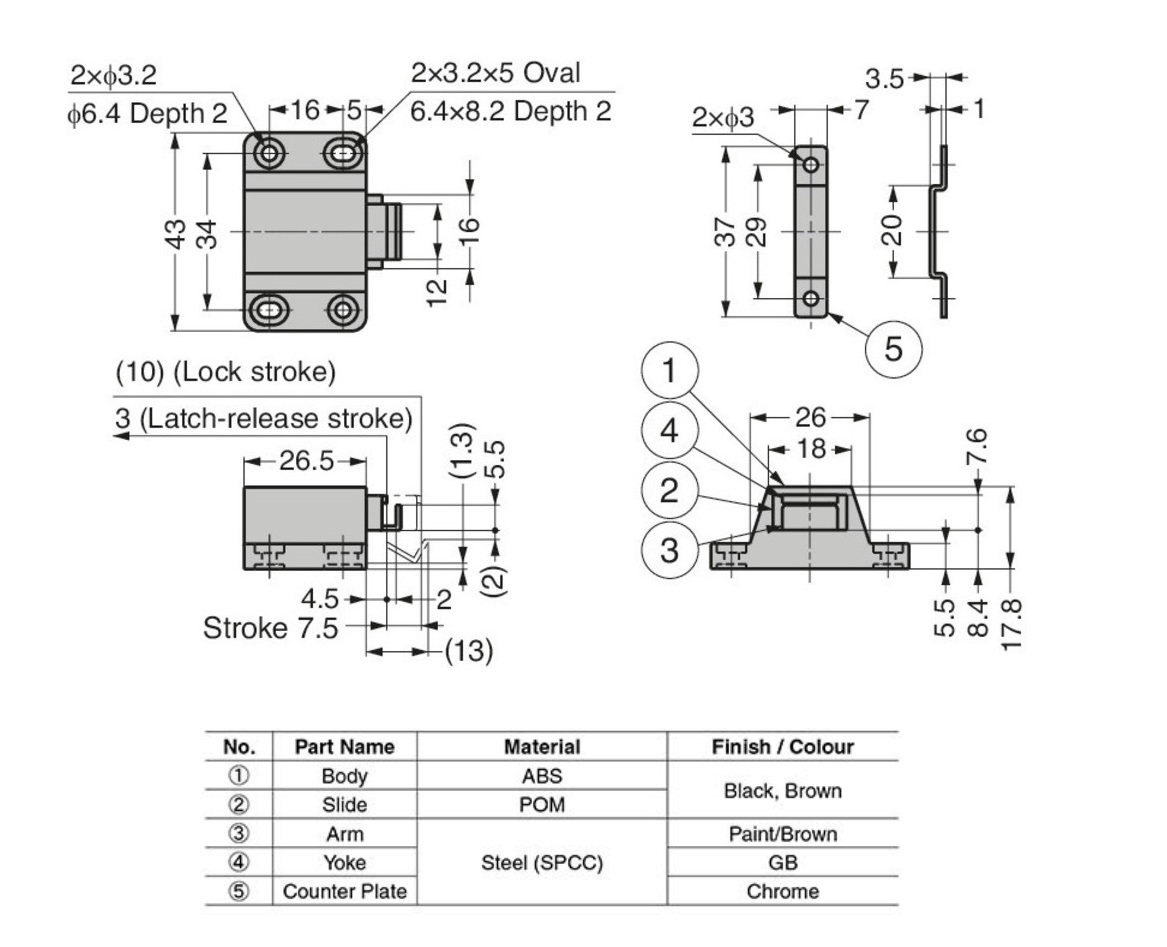

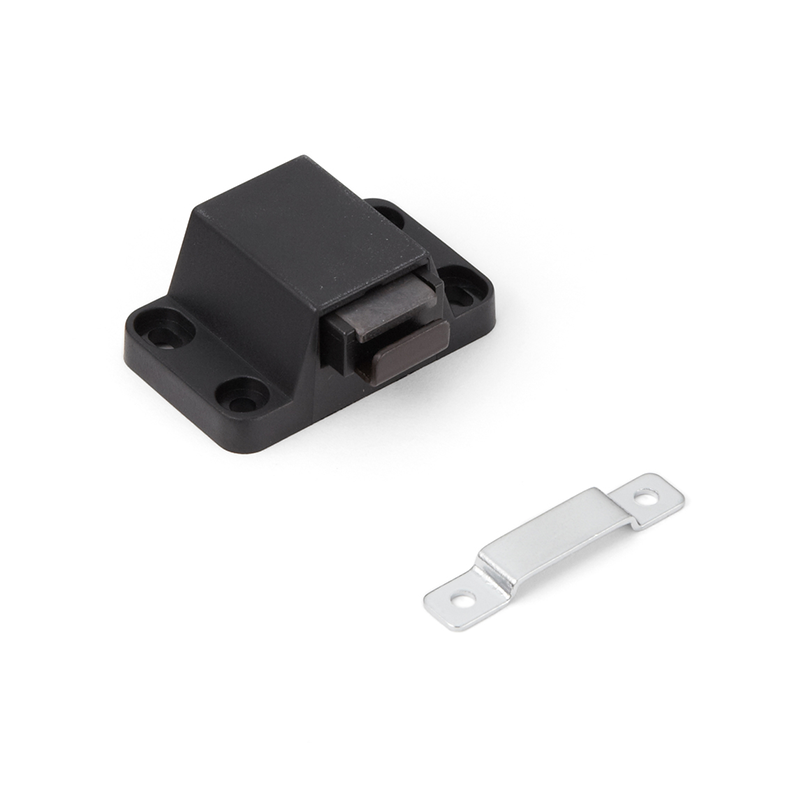

Knuckle catch, abs, screw mounting, length=43, width=33, height=17,8
MT110566
Knuckle catch manufactured in abs, which is mounted by screw mounting. The length is 43mm, the width is 33mm and the height is 17,8mm. The shortest hole distance: 16mm.
Material and surface treatment of the counter plate is: steel and chrome plated.
Other approvals
RoHS 2
Colour
Black
Hole type
Simple & Oval
Adjustable
No
Components
Knuckle catch
Closing
Push to close
Material type
ABS
Mounting type
Screw mounting
Opening
Push to open
Hole diameter in mm
3.2
Hole distance in mm
34
Height in mm
17.8
Length in mm
43
Plate thickness min.
0
Plate thickness max.
0
Push-in force
0
Pulling force
0
Thickness in mm
5.5
Long description
Knuckle catch manufactured in abs, which is mounted by screw mounting. The length is 43mm, the width is 33mm and the height is 17,8mm. The shortest hole distance: 16mm.
Material and surface treatment of the counter plate is: steel and chrome plated.
