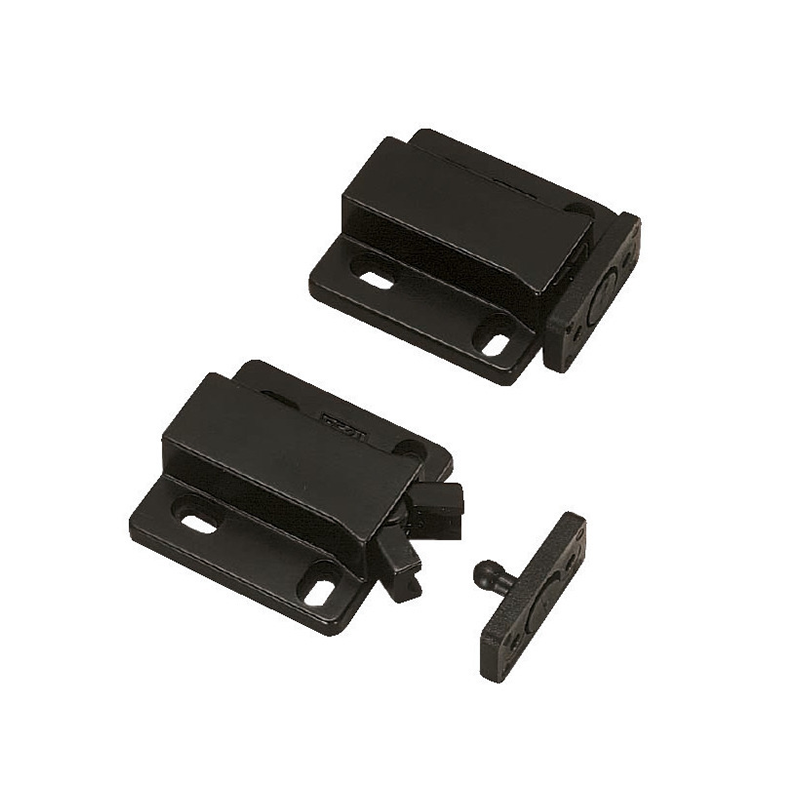

Knuckle catch, abs, screw mounting, length=43, width=36,3, height=13,2
MT110310

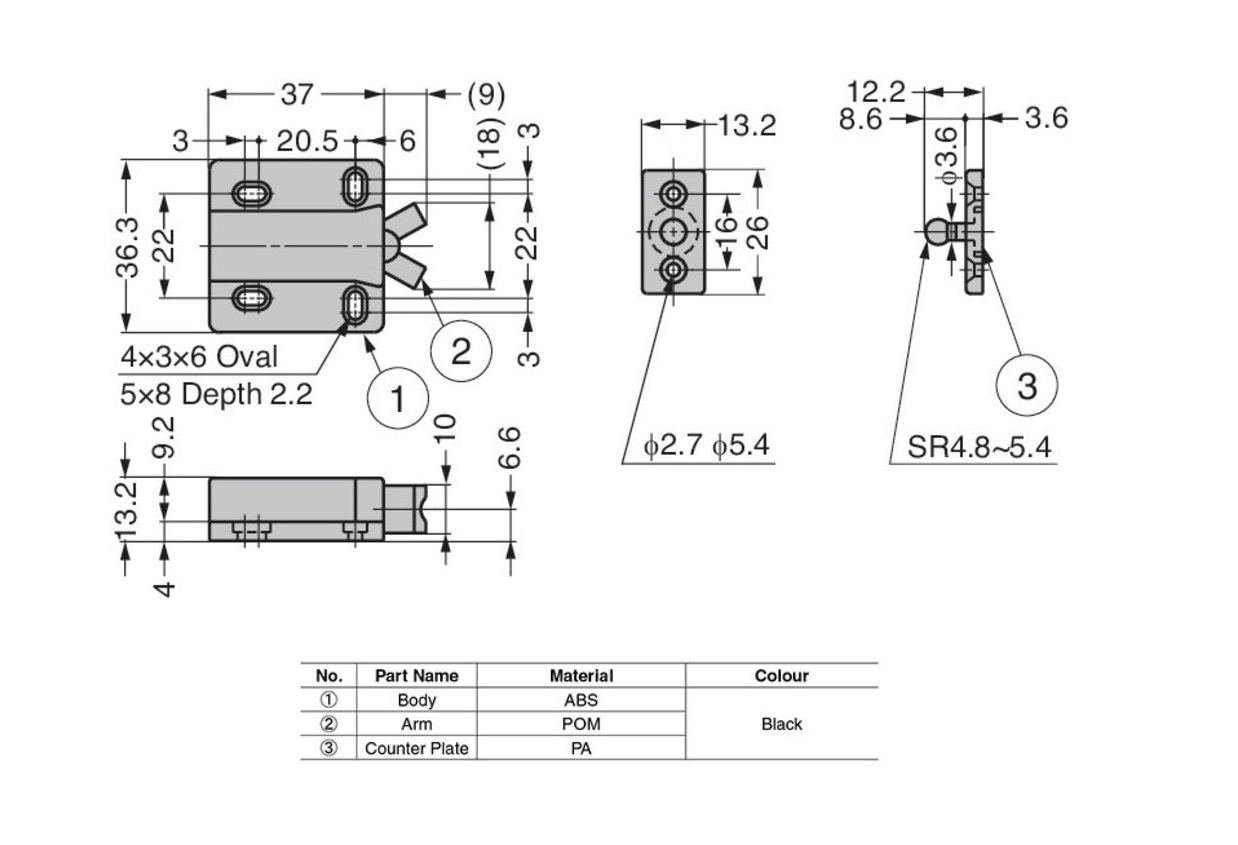

Knuckle catch manufactured in abs, which is mounted by screw mounting. The length is 43mm, the width is 36,3mm and the height is 13,2mm. The shortest hole distance: 20,5mm.

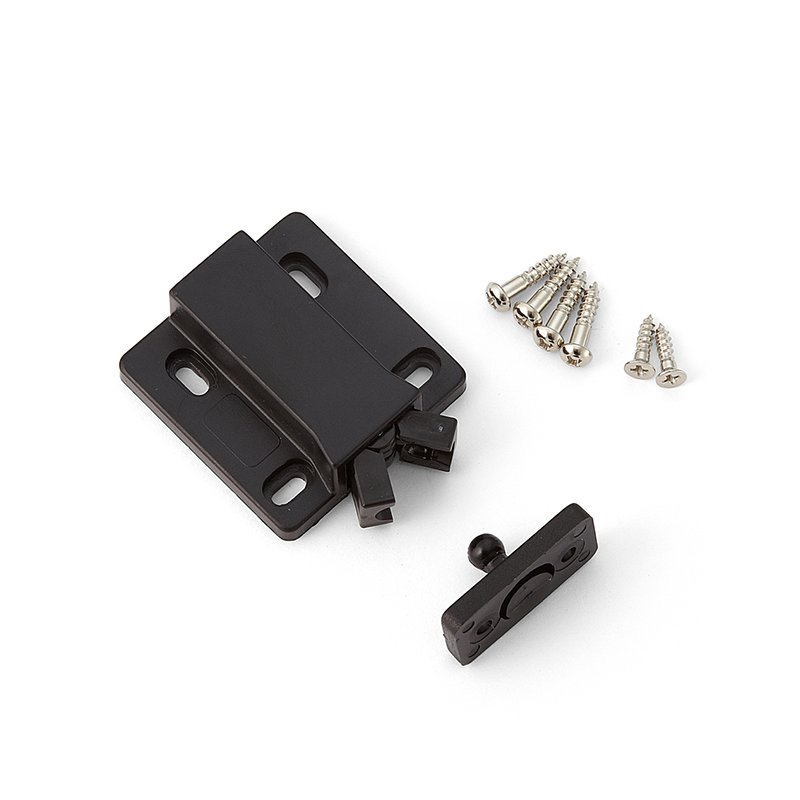

Screws are included.
Other approvals
RoHS 2
Colour
Black
Hole type
Countersunk & Oval
Adjustable
No
Components
Knuckle catch
Closing
Push to close
Material type
ABS
Mounting type
Screw mounting
Opening
Push to open
Hole diameter in mm
3
Hulmål i mm
22
Height in mm
13.2
Length i mm
43
Plate thickness, min.
0
Plate thickness, max.
0
Push-in force
0
Pulling force
29
Thickness in mm
0
Long description
Knuckle catch manufactured in abs, which is mounted by screw mounting. The length is 43mm, the width is 36,3mm and the height is 13,2mm. The shortest hole distance: 20,5mm.
Screws are included.
