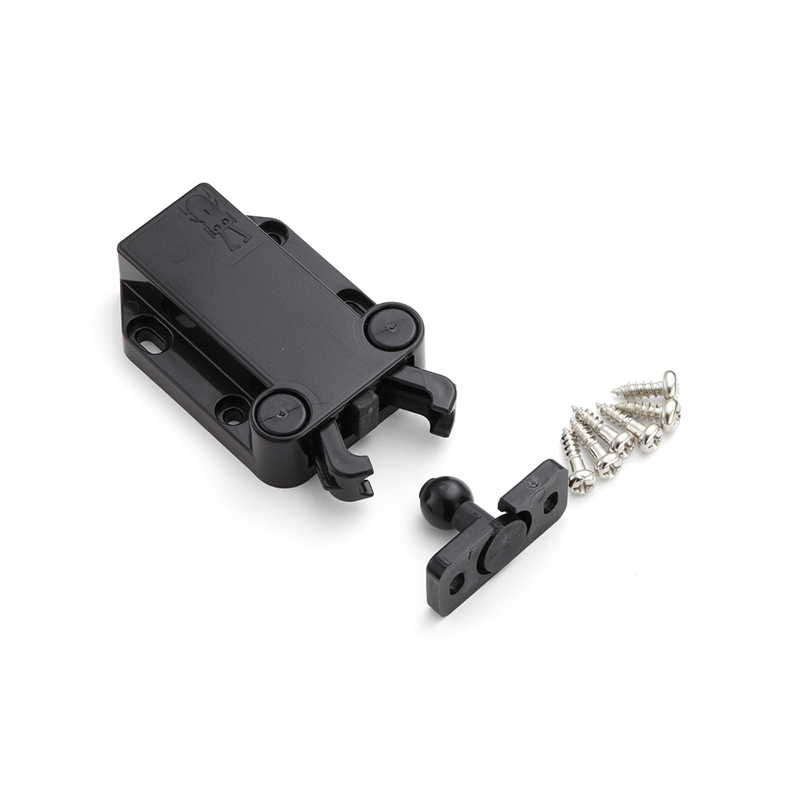

Knuckle catch, abs, screw mounting, length=71, width=40, height=16
MT110312

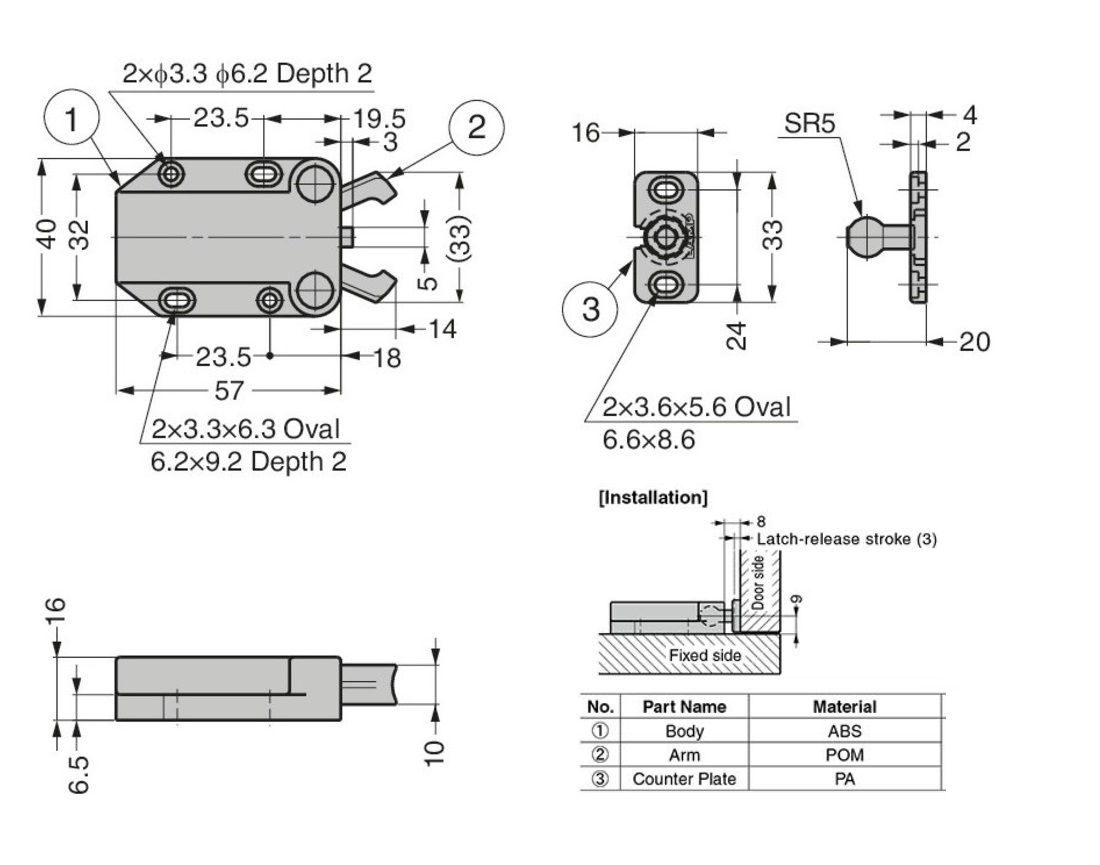

Knuckle catch manufactured in abs, which is mounted by screw mounting. The length is 71mm, the width is 40mm and the height is 16mm. The shortest hole distance: 23,5mm.
Screws are included.
Other approvals
RoHS 2
Colour
Black
Hole type
Simple & Oval
Adjustable
No
Components
Knuckle catch
Closing
Push to close
Material type
ABS
Mounting type
Screw mounting
Opening
Push to open
Hole diameter in mm
3.3
Hole distance in mm
32
Height in mm
16
Length in mm
71
Plate thickness min.
0
Plate thickness max.
0
Push-in force
0
Pulling force
78
Thickness in mm
0
Long description
Knuckle catch manufactured in abs, which is mounted by screw mounting. The length is 71mm, the width is 40mm and the height is 16mm. The shortest hole distance: 23,5mm.
Screws are included.
