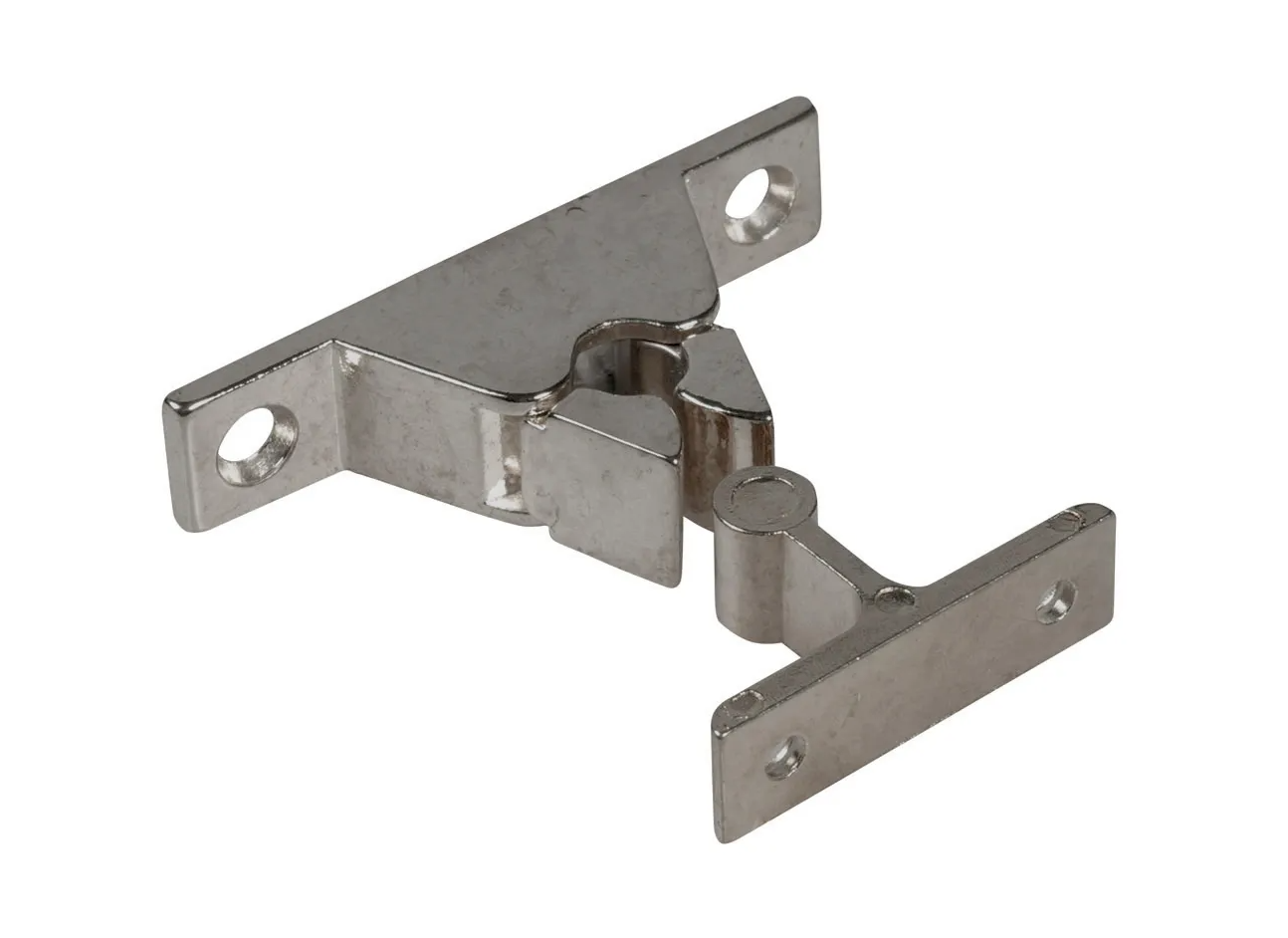

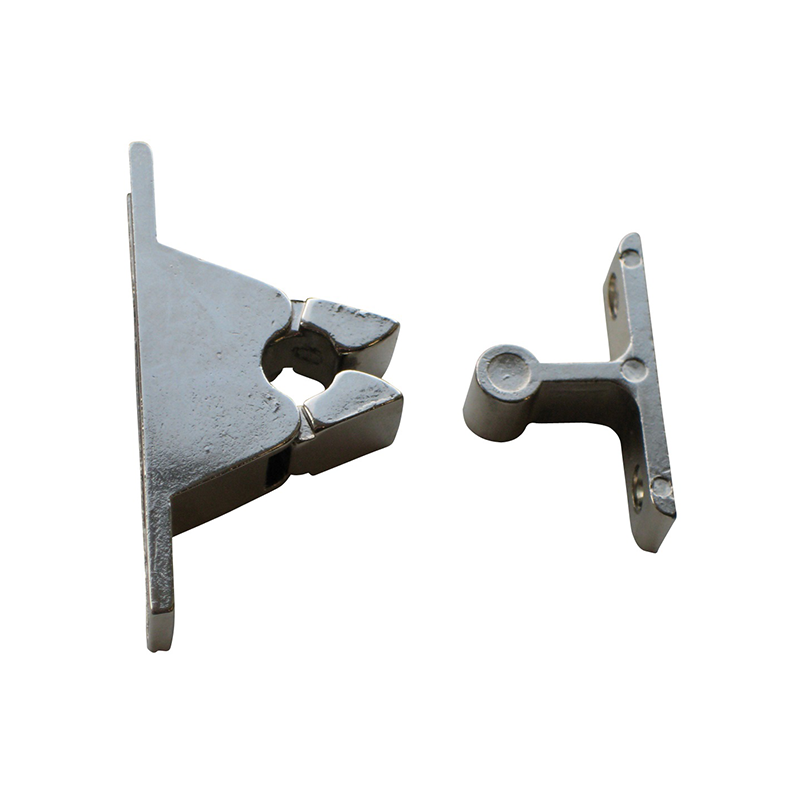

Knuckle catch, die-cast zinc, screw mounting, length=60, width=13,5, height=30
MT109078
Knuckle catch manufactured in die-cast zinc, which is mounted by screw mounting. The length is 60mm, the width is 13,5mm and the height is 30mm.
Hole type
Countersunk
Adjustable
No
Components
Knuckle catch
Closing
Push to close
Material type
Die-cast zinc
Mounting type
Screw mounting
Surface finish
Chrome plated
Opening
Pull to open
Hole diameter in mm
5
Hole distance in mm
46.5
Height in mm
30
Length in mm
60
Plate thickness min.
0
Plate thickness max.
0
Push-in force
0
Pulling force
24.5
Thickness in mm
0
Long description
Knuckle catch manufactured in die-cast zinc, which is mounted by screw mounting. The length is 60mm, the width is 13,5mm and the height is 30mm.
