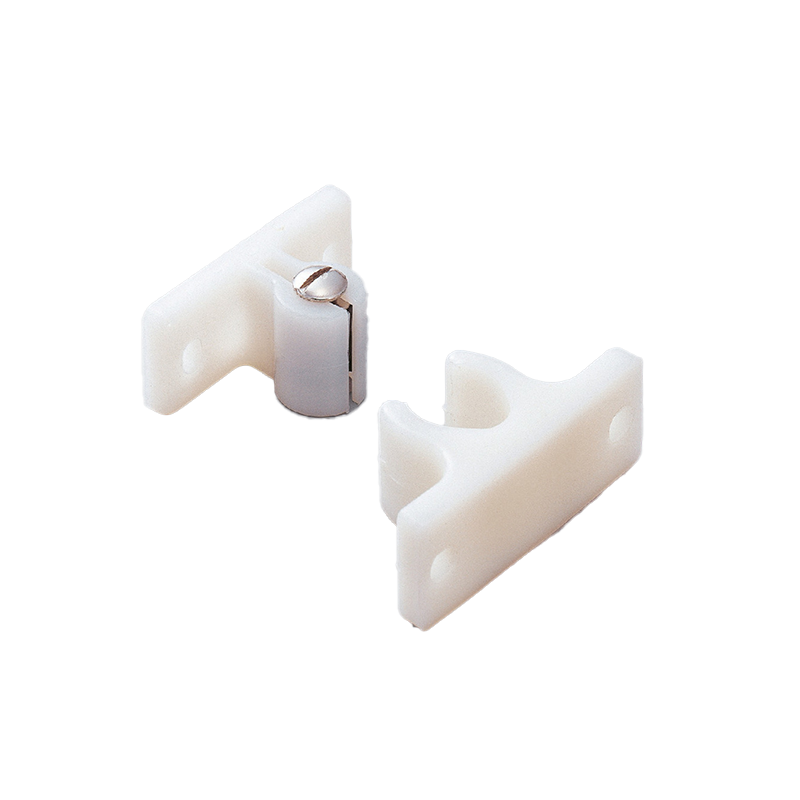

Knuckle catch, polyamide, screw mounting, length=67, width=25,5, height=32
MT109746
Knuckle catch manufactured in polyamide, which is mounted by screw mounting. The length is 67mm, the width is 25,5mm and the height is 32mm. Adjustable push-in force: 127,4 - 254,8 N.
Adjustable pulling force: 78,4 - 196 N.
Colour
White
Hole type
Simple
Adjustable
Yes
Components
Knuckle catch
Closing
Push to close
Material type
Polyamide
Mounting type
Screw mounting
Opening
Pull to open
Hole diameter in mm
0
Hole distance in mm
52.3
Height in mm
32
Length in mm
67
Plate thickness min.
0
Plate thickness max.
0
Push-in force
254.8
Pulling force
196
Thickness in mm
7
Long description
Knuckle catch manufactured in polyamide, which is mounted by screw mounting. The length is 67mm, the width is 25,5mm and the height is 32mm. Adjustable push-in force: 127,4 - 254,8 N.
Adjustable pulling force: 78,4 - 196 N.
