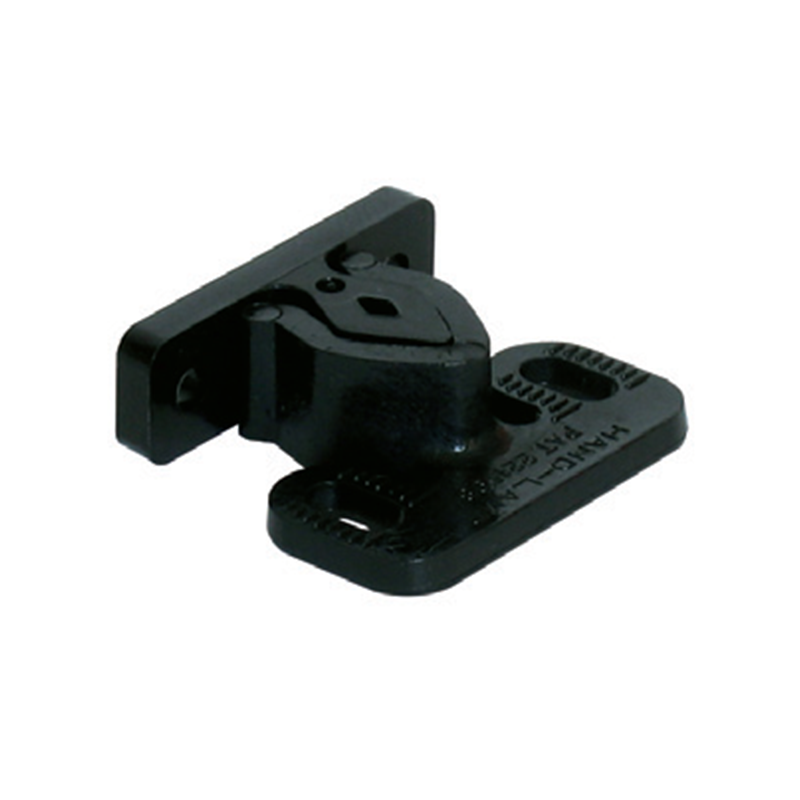

Knuckle catch, pom plastic, screw mounting, length=24, width=19, height=7,5
MT109655

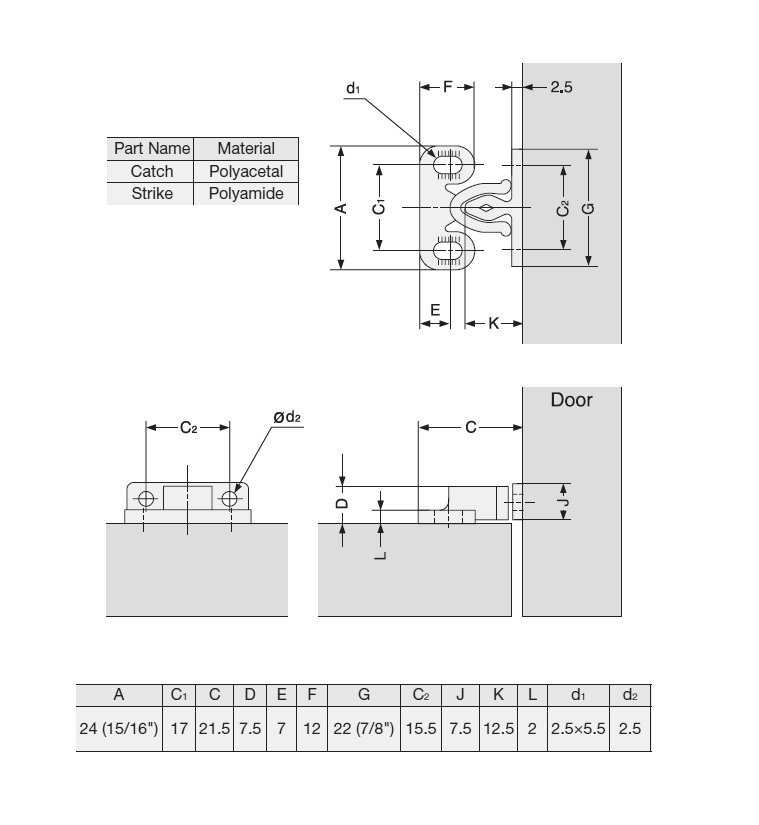

Knuckle catch manufactured in pom plastic, which is mounted by screw mounting. The length is 24mm, the width is 19mm and the height is 7,5mm. Material of the strike is polyamide.
Other approvals
RoHS
Colour
Black
Hole type
Simple & Oval
Adjustable
No
Components
Knuckle catch
Closing
Push to close
Material type
POM plastic
Mounting type
Screw mounting
Opening
Pull to open
Hole diameter in mm
2.5
Hole distance in mm
17
Height in mm
7.5
Length in mm
24
Plate thickness min.
0
Plate thickness max.
0
Push-in force
30.4
Pulling force
26.5
Thickness in mm
2
Long description
Knuckle catch manufactured in pom plastic, which is mounted by screw mounting. The length is 24mm, the width is 19mm and the height is 7,5mm. Material of the strike is polyamide.
