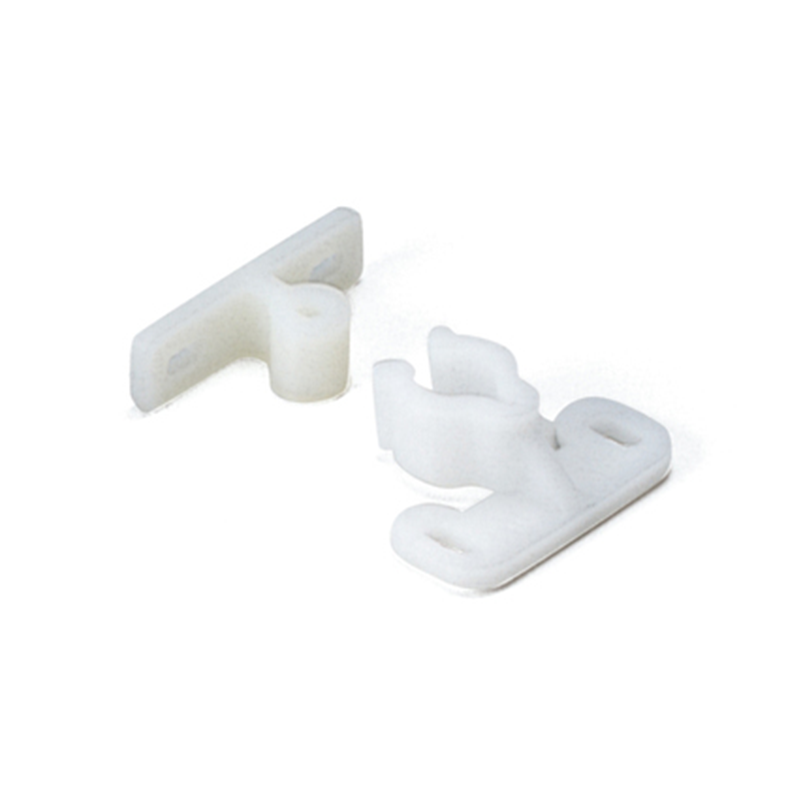

Knuckle catch, pom plastic, screw mounting, length=34,5, width=30,5, height=13
MT110424

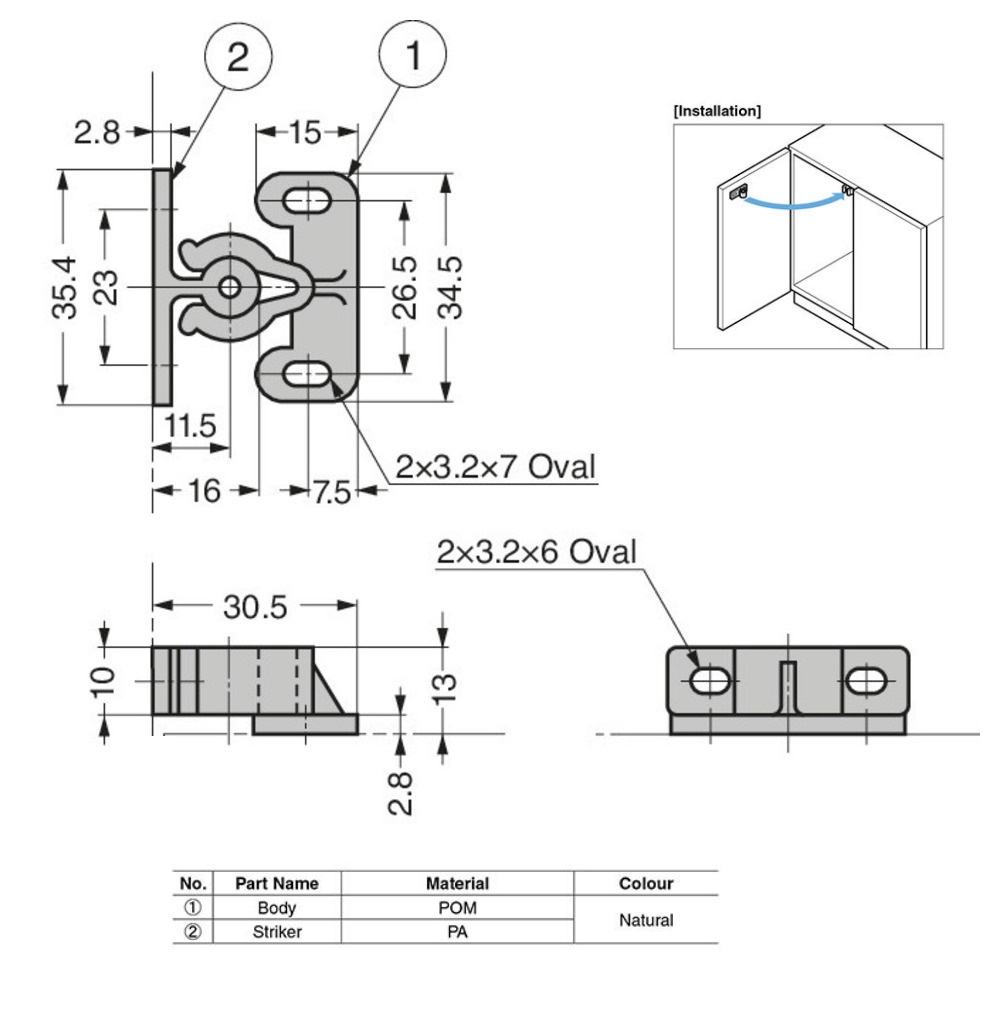

Knuckle catch manufactured in pom plastic, which is mounted by screw mounting. The length is 34,5mm, the width is 30,5mm and the height is 13mm. Material of the strike is polyamide.
Pulling force and push-in force may vary by +/- 20-30%.
Colour
White
Hole type
Oval
Adjustable
No
Components
Knuckle catch
Closing
Push to close
Material type
POM plastic
Mounting type
Screw mounting
Opening
Pull to open
Hole diameter in mm
3.2
Hulmål i mm
26.5
Height in mm
13
Length i mm
34.5
Plate thickness, min.
0
Plate thickness, max.
0
Push-in force
58
Pulling force
69
Thickness in mm
2.8
Long description
Knuckle catch manufactured in pom plastic, which is mounted by screw mounting. The length is 34,5mm, the width is 30,5mm and the height is 13mm. Material of the strike is polyamide.
Pulling force and push-in force may vary by +/- 20-30%.
