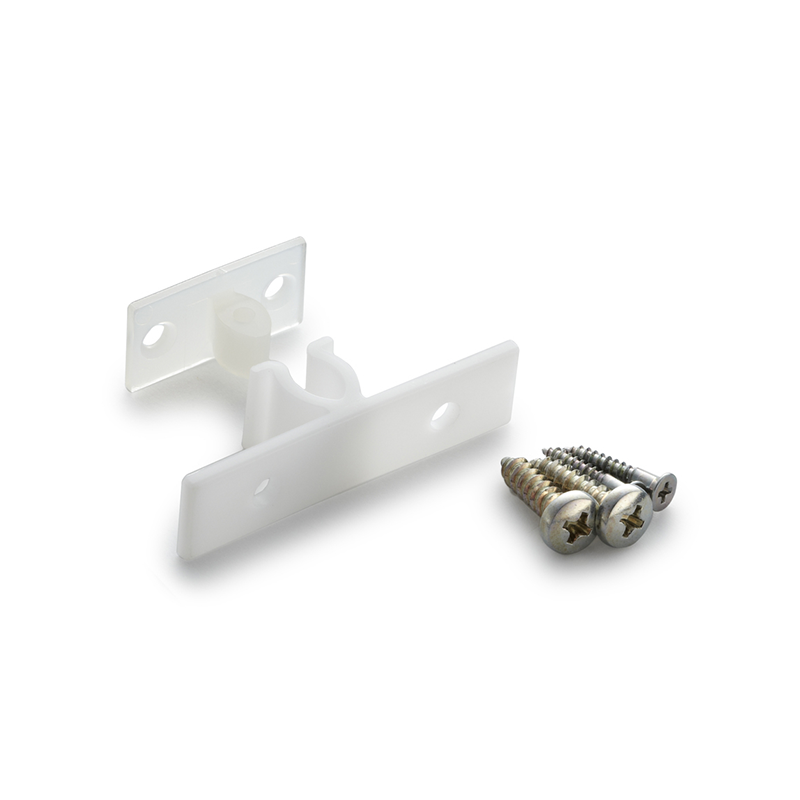

Knuckle catch, pom plastic, screw mounting, length=50, width=12, height=14,2
MT110168
Knuckle catch manufactured in pom plastic, which is mounted by screw mounting. The length is 50mm, the width is 12mm and the height is 14,2mm. Material of the strike is polyamide.
Pulling force and push-in force may vary by +/- 20-30%.
Screws are included.
Other approvals
RoHS 2
Hole type
Simple & countersunk
Adjustable
No
Components
Knuckle catch
Closing
Push to close
Material type
POM plastic
Mounting type
Screw mounting
Opening
Pull to open
Hole diameter in mm
4.2
Hole distance in mm
27
Height in mm
14.2
Length in mm
50
Plate thickness min.
0
Plate thickness max.
0
Push-in force
19
Pulling force
20
Thickness in mm
2
Long description
Knuckle catch manufactured in pom plastic, which is mounted by screw mounting. The length is 50mm, the width is 12mm and the height is 14,2mm. Material of the strike is polyamide.
Pulling force and push-in force may vary by +/- 20-30%.
Screws are included.
