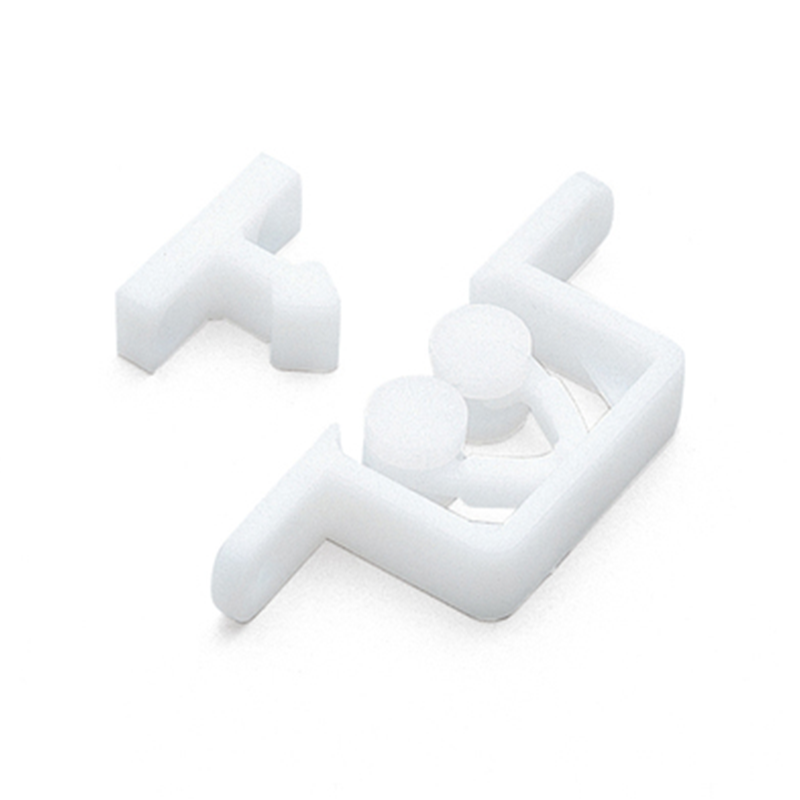

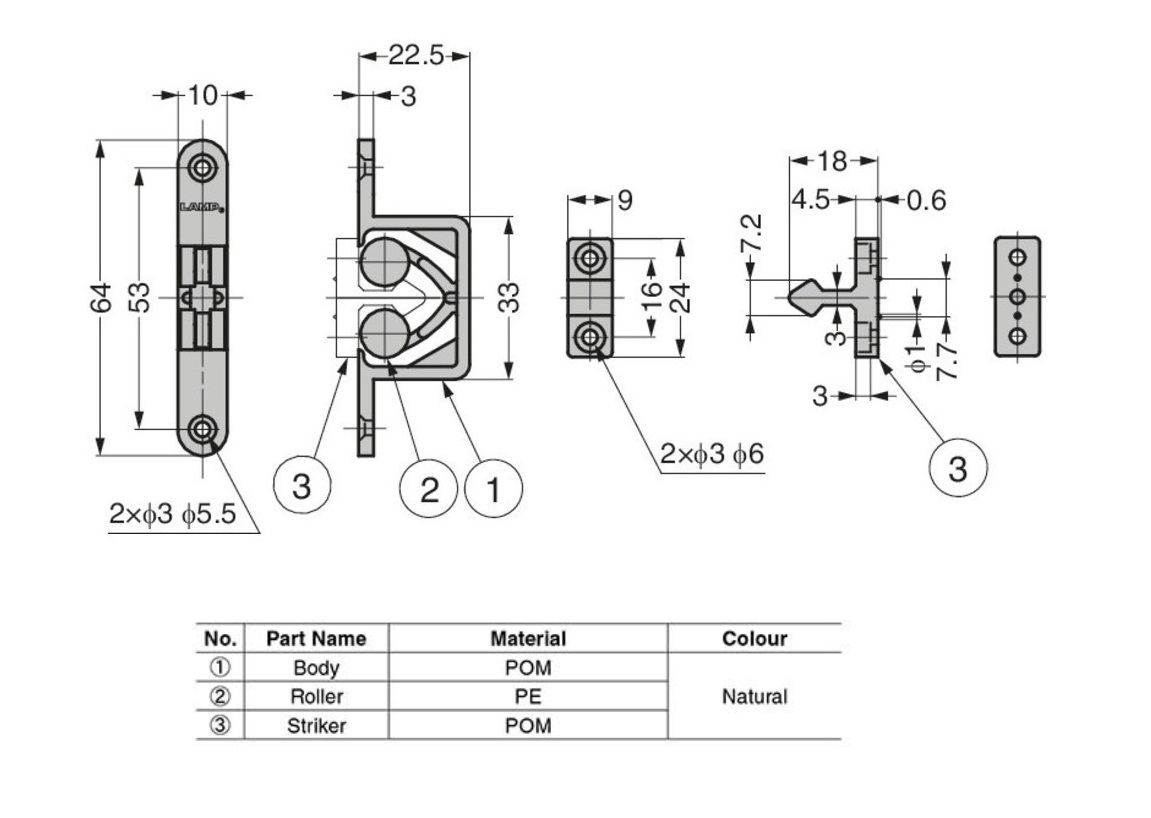

Knuckle catch, pom plastic, screw mounting, length=64, width=10, height=22,5
MT110790
Knuckle catch manufactured in pom plastic, which is mounted by screw mounting. The length is 64mm, the width is 10mm and the height is 22,5mm. Pulling force and push-in force may vary by +/- 20-30%.
Other approvals
RoHS 2
Colour
White
Hole type
Countersunk
Adjustable
No
Components
Knuckle catch
Closing
Push to close
Material type
POM plastic
Mounting type
Screw mounting
Opening
Pull to open
Hole diameter in mm
3
Hole distance in mm
53
Height in mm
22.5
Length in mm
64
Plate thickness min.
0
Plate thickness max.
0
Push-in force
27
Pulling force
32
Thickness in mm
3
Long description
Knuckle catch manufactured in pom plastic, which is mounted by screw mounting. The length is 64mm, the width is 10mm and the height is 22,5mm. Pulling force and push-in force may vary by +/- 20-30%.
