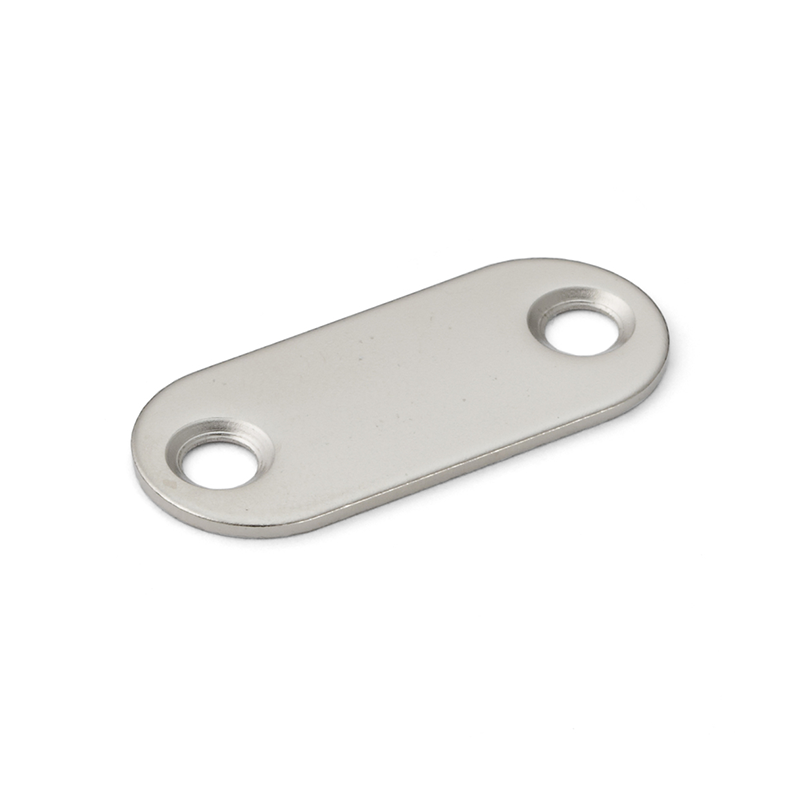

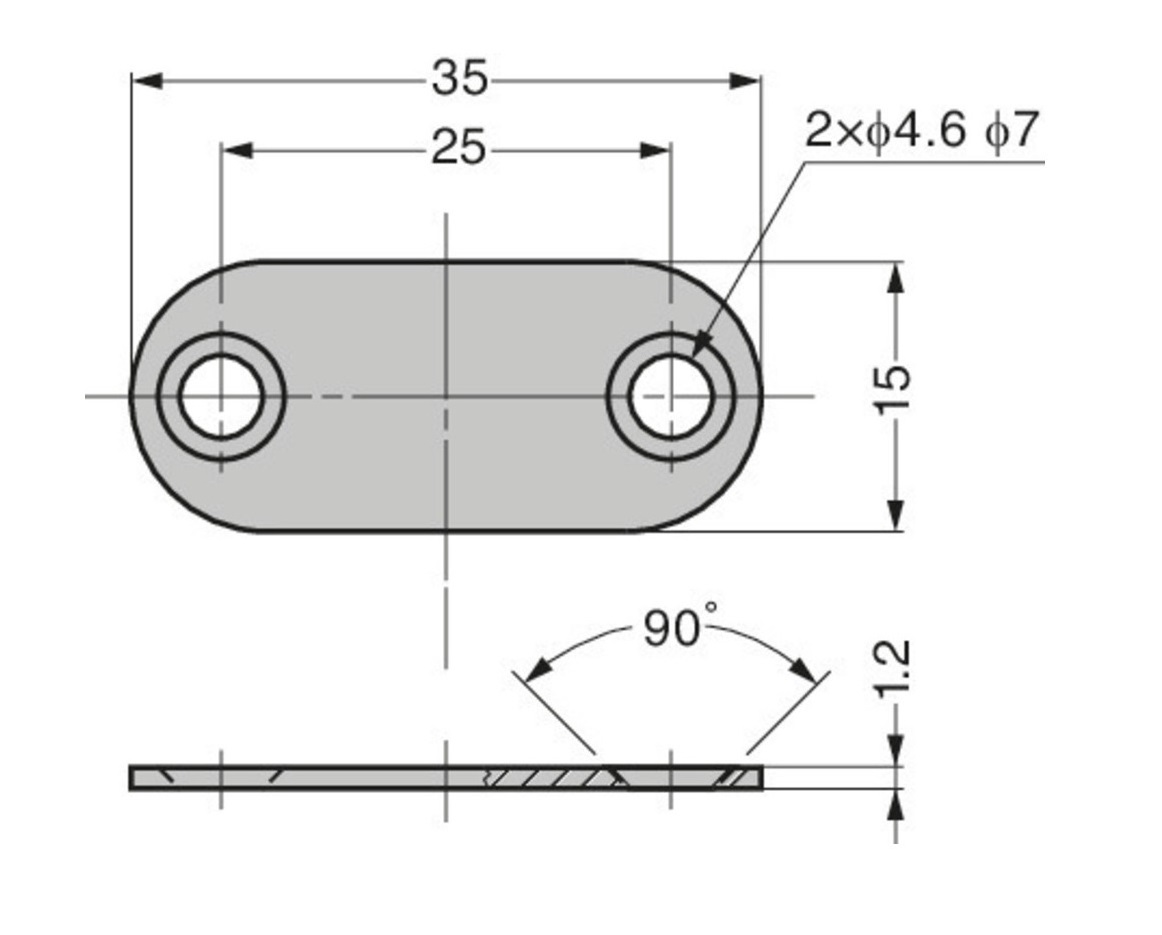

Counter plate for magnetic catch, steel, screw mounting, length=35, width=15, height=1,2
MT111392
Counter plate for magnetic catch manufactured in steel, which is mounted by screw mounting. The length is 35mm, the width is 15mm and the height is 1,2mm. Suitable for: Item no. MC-YN001.
Other approvals
RoHS 2
Hole type
Countersunk
Components
Modplade til magnetlås
Material type
Steel
Mounting type
Screw mounting
Surface finish
Nickel-plated
Hole diameter in mm
4.6
Hulafstand i mm
25
Height in mm
1.2
Length i mm
35
Plate thickness, min.
0
Plate thickness, max.
0
Push-in force
0
Pulling force
0
Thickness in mm
0
Long description
Counter plate for magnetic catch manufactured in steel, which is mounted by screw mounting. The length is 35mm, the width is 15mm and the height is 1,2mm. Suitable for: Item no. MC-YN001.
