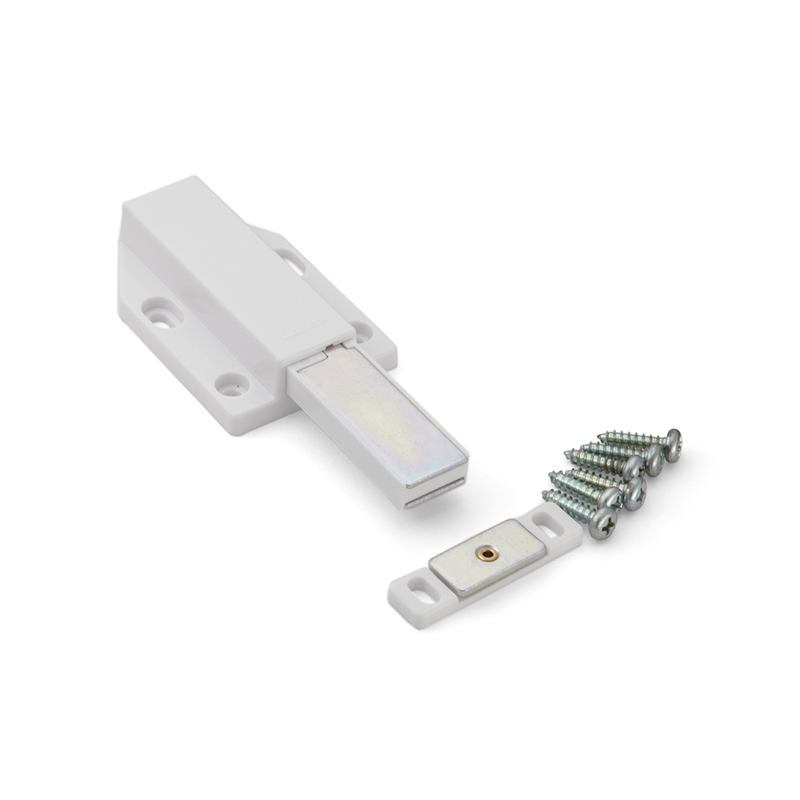

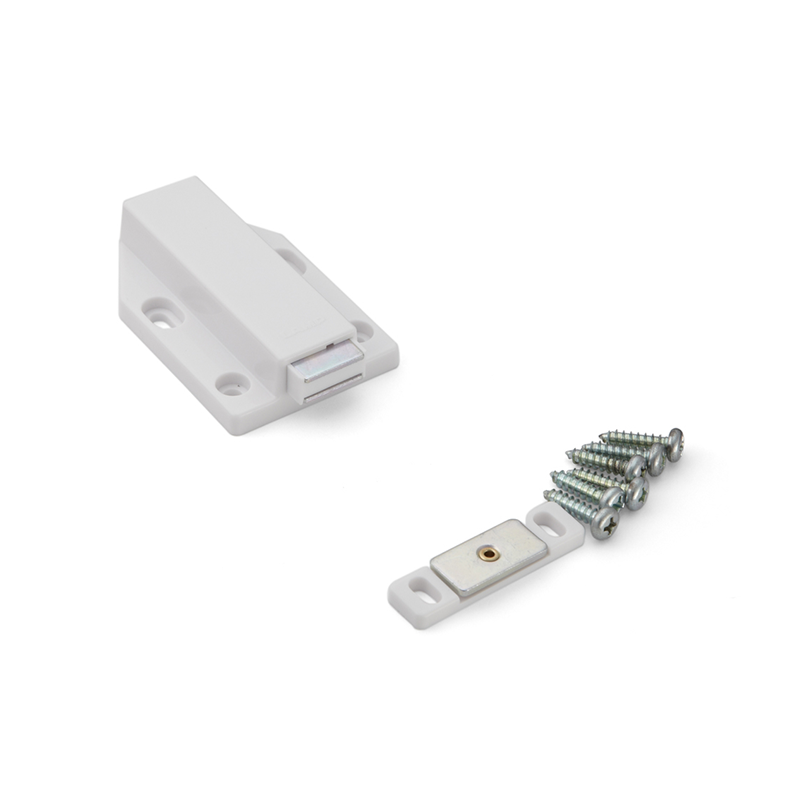

Magnetic catch, abs, screw mounting, length=75,5, width=46, height=17
MT110344

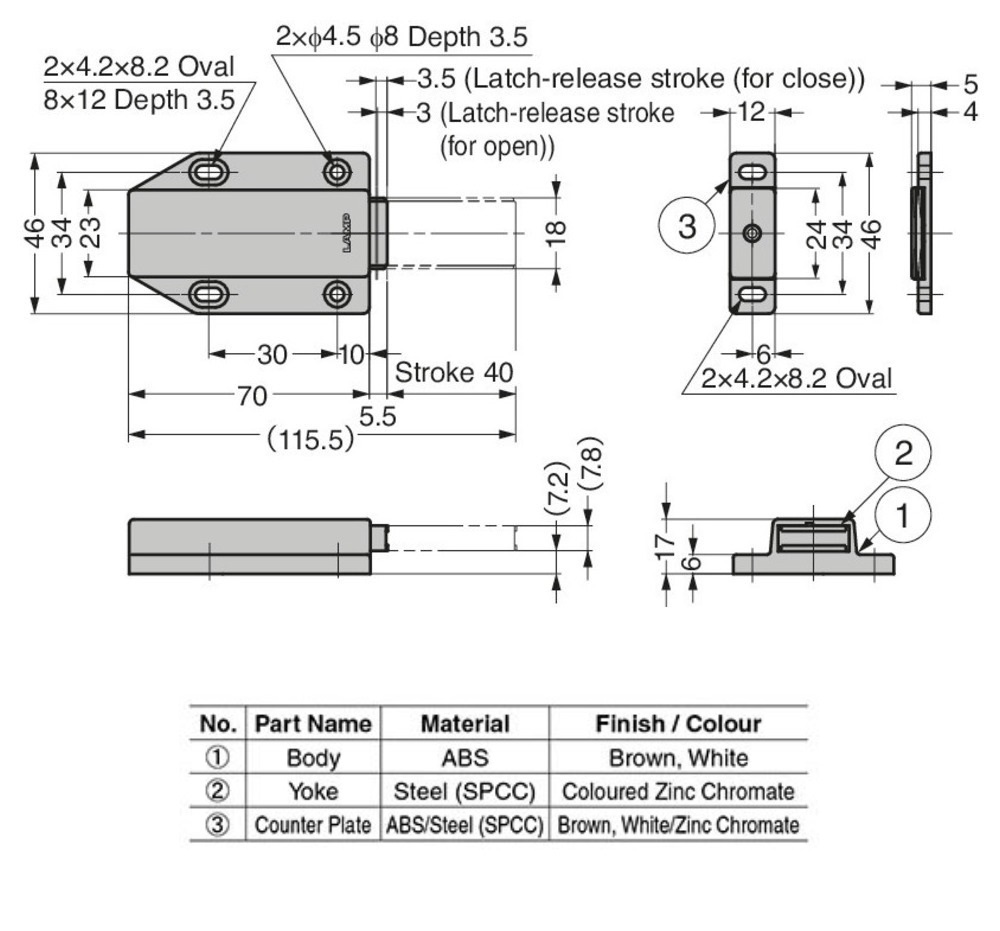

Magnetic catch manufactured in abs, which is mounted by screw mounting. The length is 75,5mm, the width is 46mm and the height is 17mm. Hole diameter of the simple holes are Ø4,5mm.
The shortest hole distance: 30mm. Screws are included.
Other approvals
RoHS 2
Colour
White
Hole type
Simple & Oval
Components
Magnetic catch
Closing
Push to close
Material type
ABS
Mounting type
Screw mounting
Opening
Push to open
Hole diameter in mm
4.2
Hole distance in mm
34
Height in mm
17
Length in mm
75.5
Plate thickness min.
0
Plate thickness max.
0
Push-in force
0
Pulling force
23.5
Thickness in mm
6
Nettovægt
0.064
Varekode
8302490099
Long description
Magnetic catch manufactured in abs, which is mounted by screw mounting. The length is 75,5mm, the width is 46mm and the height is 17mm. Hole diameter of the simple holes are Ø4,5mm.
The shortest hole distance: 30mm. Screws are included.
