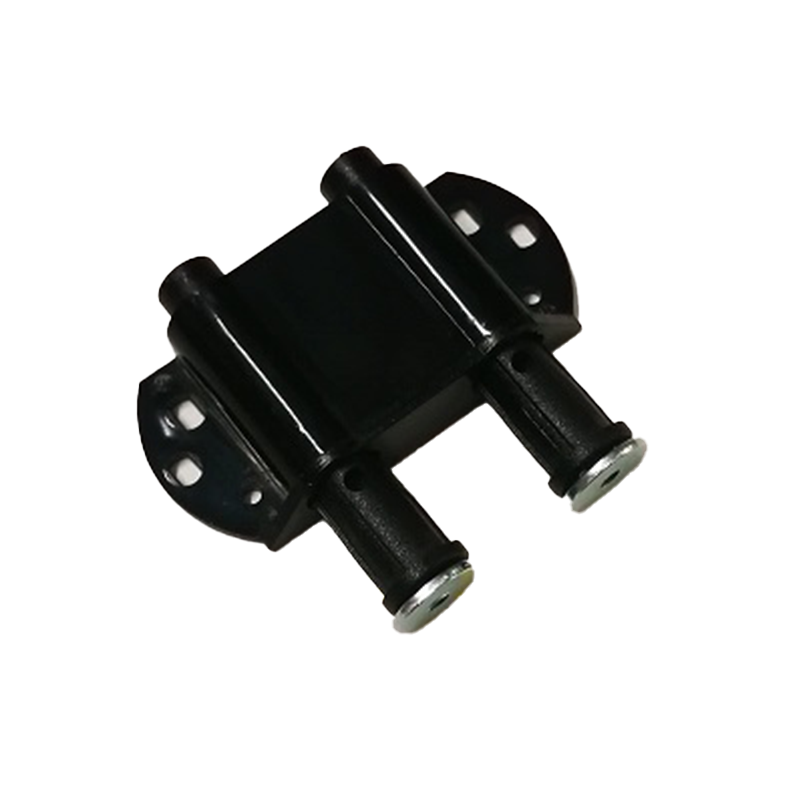

Magnetic catch, brass, screw mounting, length=74, width=47, height=14
MT105484

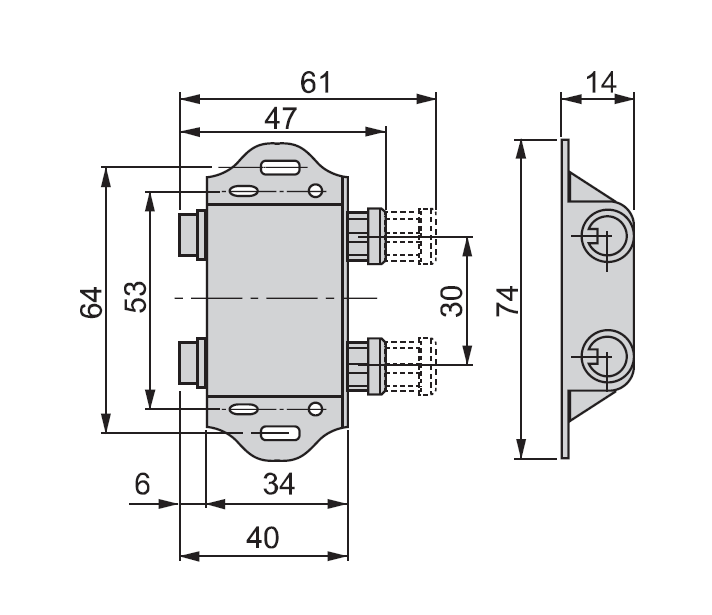

Magnetic catch manufactured in ABS, which is mounted by screw mounting. The length is 74mm, the width is 47mm and the height is 14mm. Min. pulling force is 10N. Piston material is polyamide (Nylon).
Colour
Black
Hole type
Simple & Oval
Components
Magnetic catch
Closing
Push to close
Material type
ABS
Mounting type
Screw mounting
Opening
Pull to open
Hulafstand i mm
64
Height in mm
14
Length i mm
74
Pulling force
10
Long description
Magnetic catch manufactured in ABS, which is mounted by screw mounting. The length is 74mm, the width is 47mm and the height is 14mm. Piston material is polyamide (Nylon).
