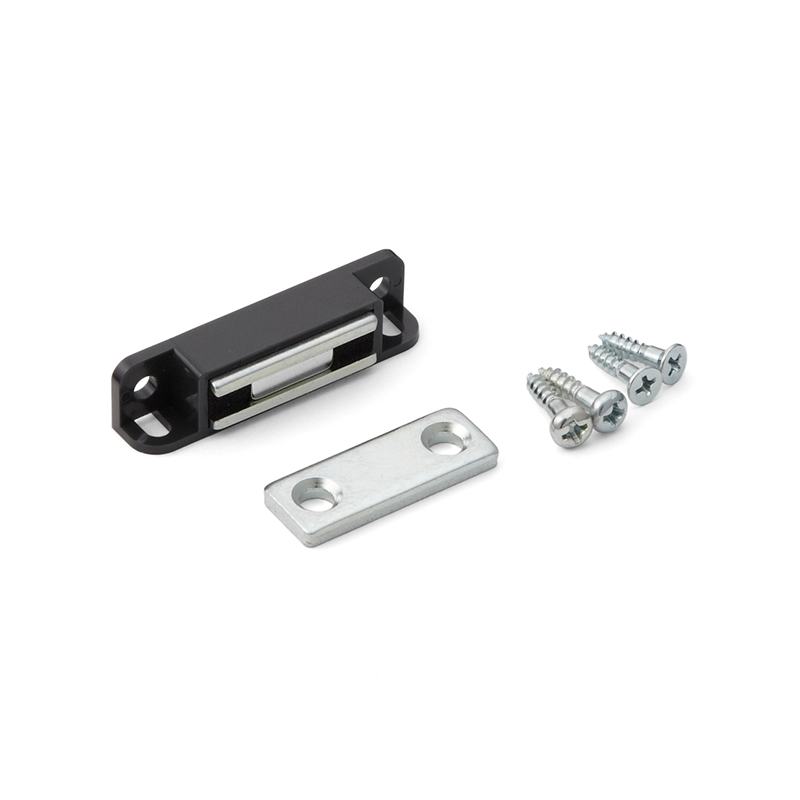

Magnetic catch, polycarbonate, screw mounting, length=45, width=11, height=10
MT110309

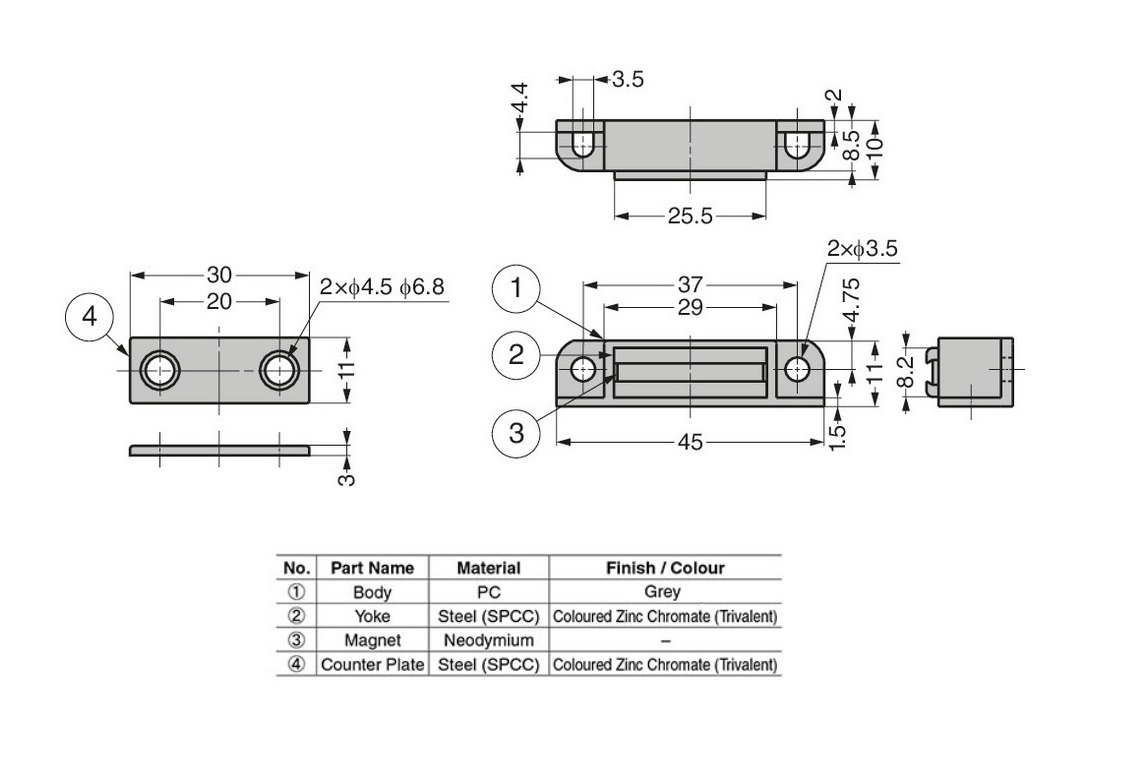

Magnetic catch manufactured in polycarbonate, which is mounted by screw mounting. The length is 45mm, the width is 11mm and the height is 10mm. Material of the magnet is neodymium.
Other approvals
RoHS 2
Colour
Hole type
Simple & countersunk
Components
Magnetic catch
Closing
Push to close
Material type
Polycarbonate
Mounting type
Screw mounting
Opening
Pull to open
Hole diameter in mm
3.5
Hole distance in mm
37
Height in mm
10
Length in mm
45
Plate thickness min.
0
Plate thickness max.
0
Push-in force
0
Pulling force
78.4
Thickness in mm
2
Long description
Magnetic catch manufactured in polycarbonate, which is mounted by screw mounting. The length is 45mm, the width is 11mm and the height is 10mm. Material of the magnet is neodymium.
