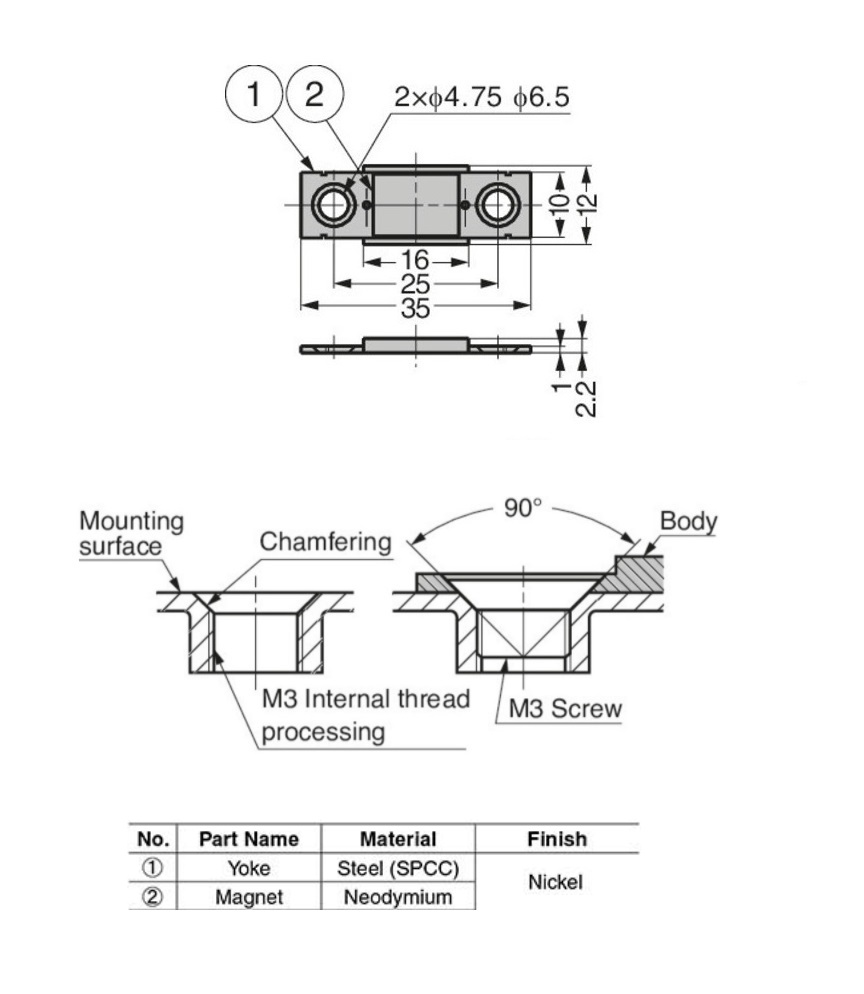

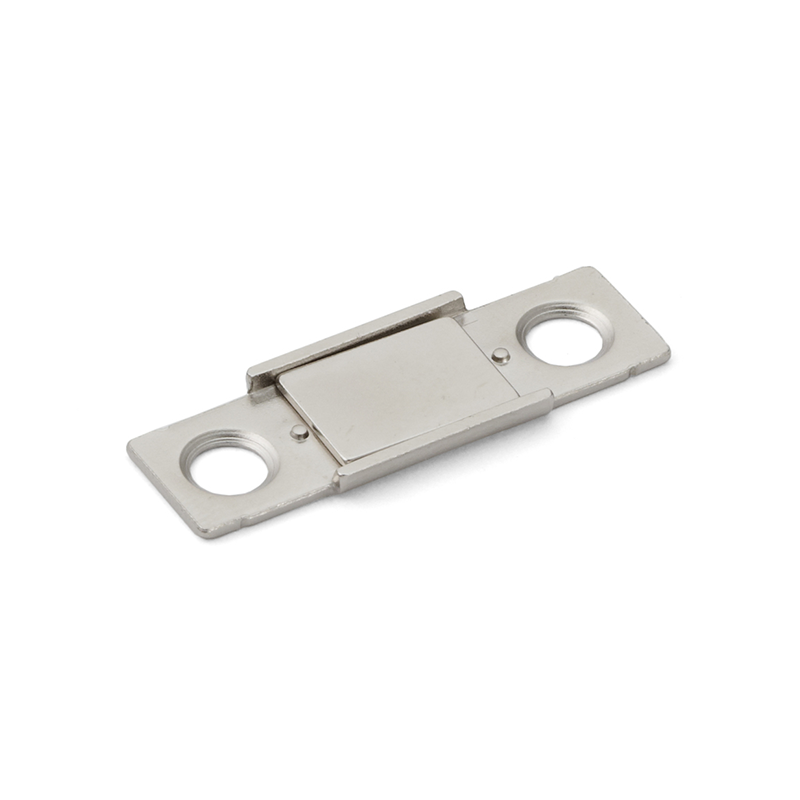

Magnetic catch, steel, screw mounting, length=35, width=12, height=2,2
MT110316
Magnetic catch manufactured in steel, which is mounted by screw mounting. The length is 35mm, the width is 12mm and the height is 2,2mm. Counter plate is purchased seperately: Item no. YN-001PLADE.
Material of the magnet is neodymium.
Other approvals
RoHS 2
Hole type
Countersunk
Components
Magnetic catch
Closing
Push to close
Material type
Steel
Mounting type
Screw mounting
Surface finish
Nickel-plated
Opening
Pull to open
Hole diameter in mm
4.75
Hole distance in mm
25
Height in mm
2.2
Length in mm
35
Plate thickness min.
0
Plate thickness max.
0
Push-in force
0
Pulling force
26.5
Thickness in mm
1
Long description
Magnetic catch manufactured in steel, which is mounted by screw mounting. The length is 35mm, the width is 12mm and the height is 2,2mm. Counter plate is purchased seperately: Item no. YN-001PLADE.
Material of the magnet is neodymium.
