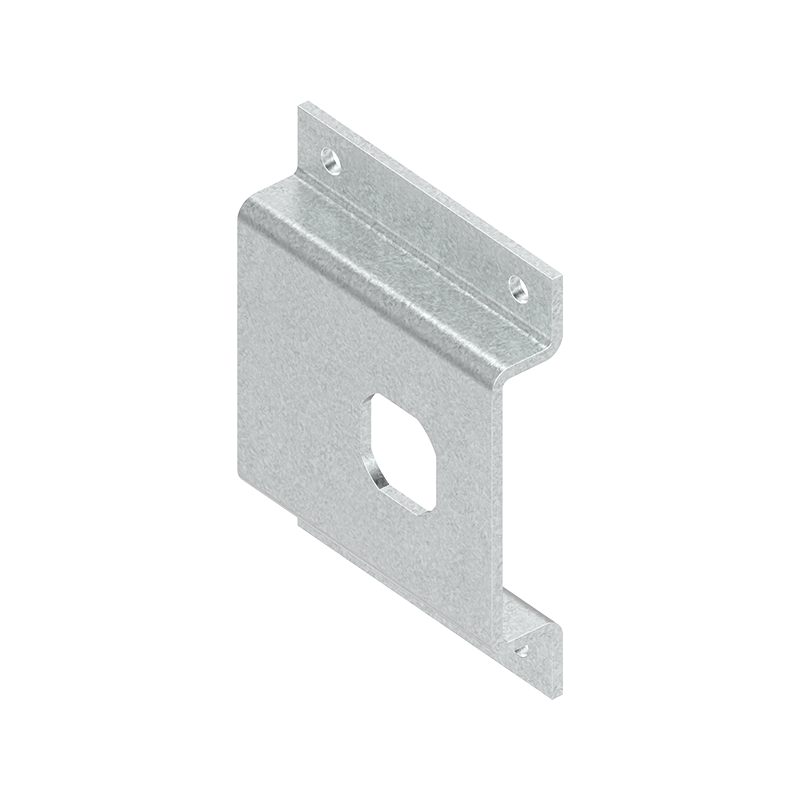

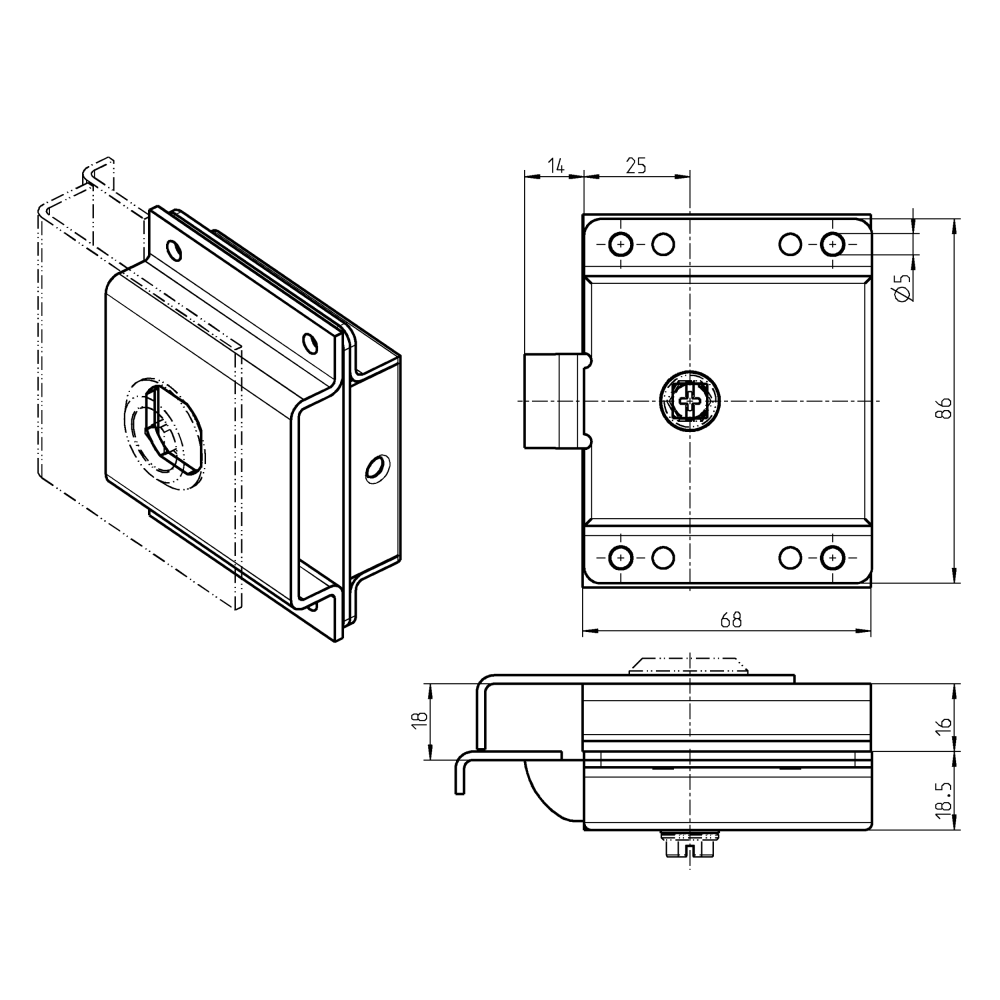

Mounting plate for slam lock, steel, screw mounting, length=86, width=68, height=18
MT102076
Mounting plate for slam lock manufactured in steel, which is mounted by screw mounting. The length is 86mm, the width is 68mm and the height is 18mm.
Hole type
Simple
Components
Counter plate for magnetic catch
Material type
Steel
Mounting type
Screw mounting
Surface finish
Electro zinc plated
Hole diameter in mm
5
Hulmål i mm
0
Height in mm
18
Length i mm
86
Plate thickness, min.
0
Plate thickness, max.
0
Push-in force
0
Pulling force
0
Thickness in mm
0
Net Weight (Kg)
0.13377
HS Code
8301600090
Country of Origin
DE
Long description
Mounting plate for slam lock manufactured in steel, which is mounted by screw mounting. The length is 86mm, the width is 68mm and the height is 18mm.
