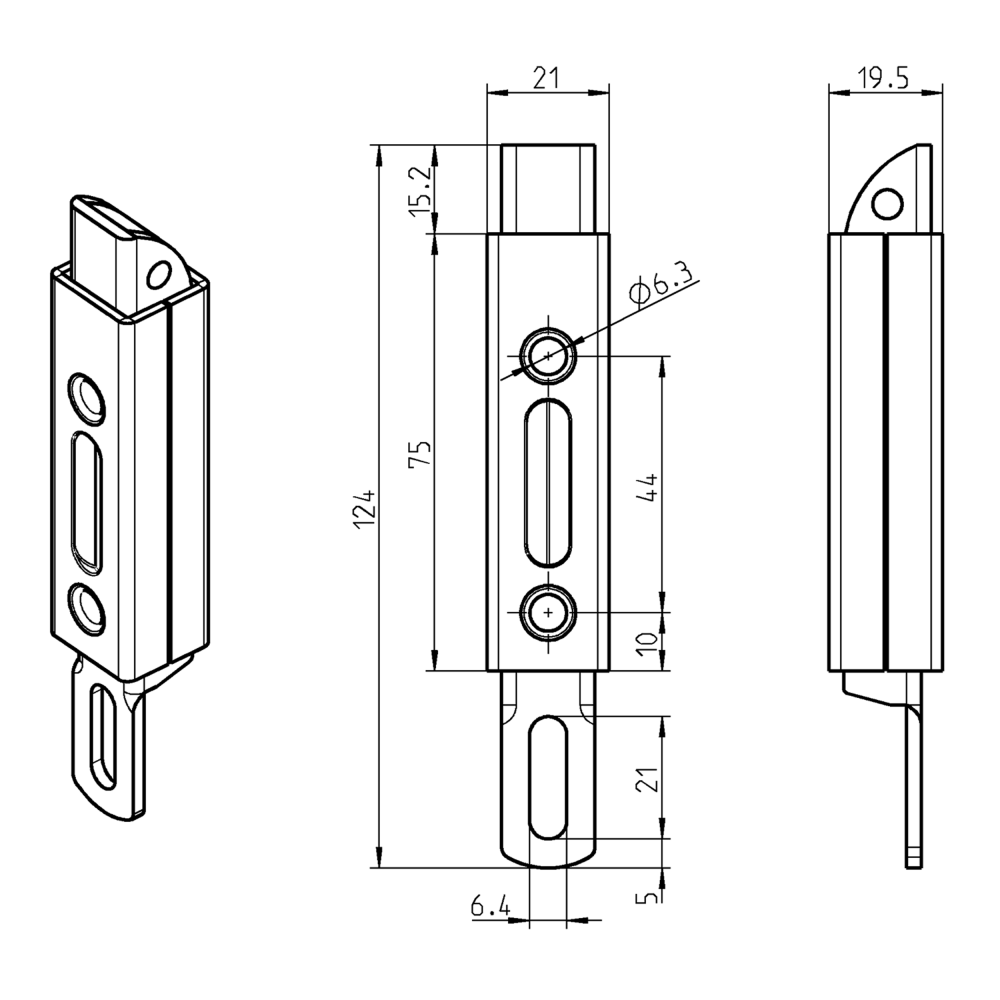

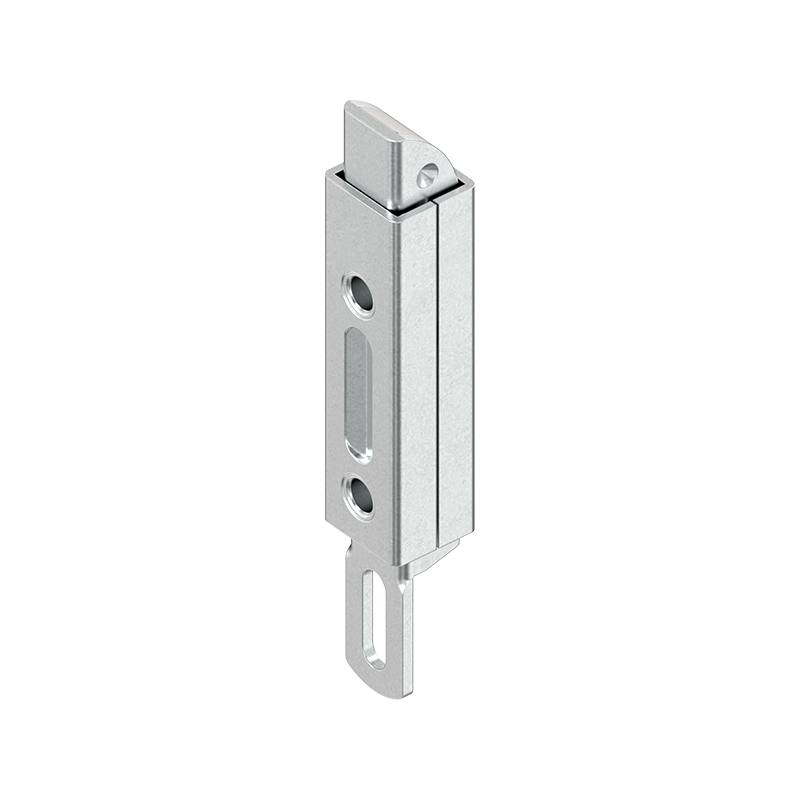

Slam lock, steel, screw mounting, length=124, width=21, height=19,5
MT102487
Slam lock manufactured in steel, which is mounted by screw mounting. The length is 124mm, the width is 21mm and the height is 19,5mm.
Hole type
Simple & Oval
Components
Slam lock
Closing
Push to close
Material type
Steel
Mounting type
Screw mounting
Surface finish
Electro zinc plated
Hole diameter in mm
6.3
Hulmål i mm
44
Height in mm
19.5
Length i mm
124
Plate thickness, min.
0
Plate thickness, max.
0
Push-in force
0
Pulling force
0
Thickness in mm
0
Nettovægt
0.15397
Varekode
8301600090
Lande-/områdekode for oprindelse
BA
Long description
Slam lock manufactured in steel, which is mounted by screw mounting. The length is 124mm, the width is 21mm and the height is 19,5mm.
