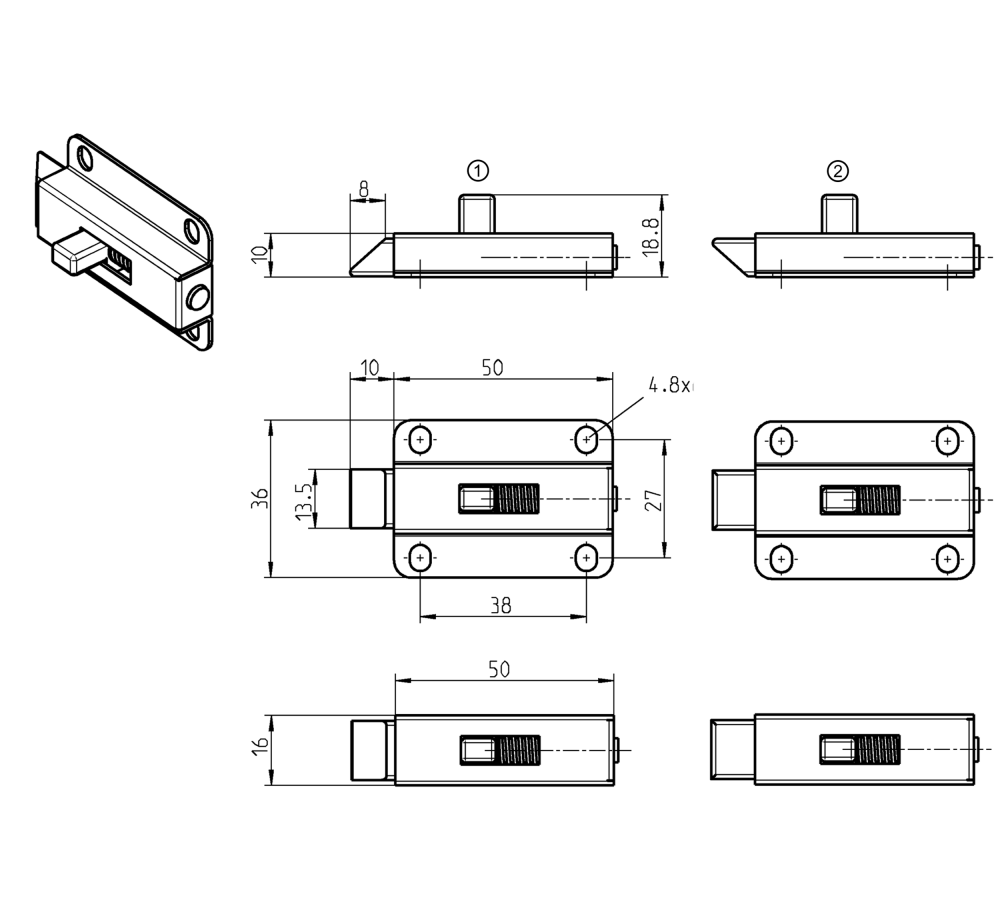

Slam lock, steel, screw mounting, length=60, width=36, height=18,8
MT111648
Slam lock manufactured in steel which is mounted by screw mounting. The length is 60mm, the width is 36mm and the height is 18,8mm. The shortest hole distance is 27mm. Black painted.
Detachable
No
Colour
Black
Spring-loaded
Yes
Hole type
Oval
Components
Slam lock
Closing
Push to close
Material type
Steel
Mounting type
Screw mounting
Surface finish
Electro zinc plated
Version
1
Hole diameter in mm
4.8
Hole distance in mm
38
Height in mm
18.8
Length in mm
60
Plate thickness min.
0
Plate thickness max.
0
Thickness in mm
0
Long description
Slam lock manufactured in steel which is mounted by screw mounting. The length is 60mm, the width is 36mm and the height is 18,8mm. The shortest hole distance is 27mm. Black painted.
