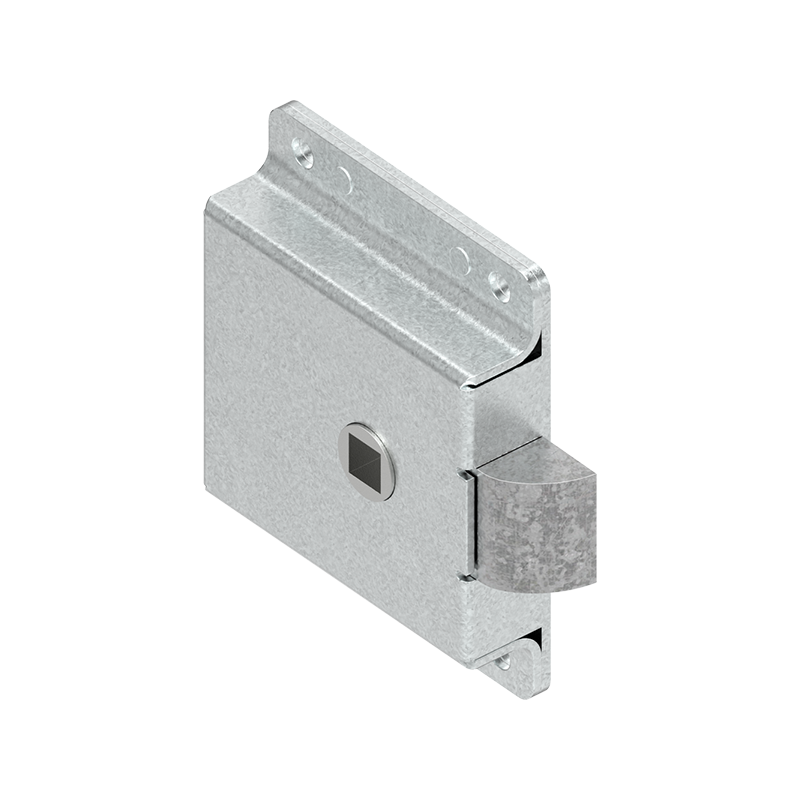

Slam lock, steel, screw mounting, length=86, width=82, height=18,5
MT102079

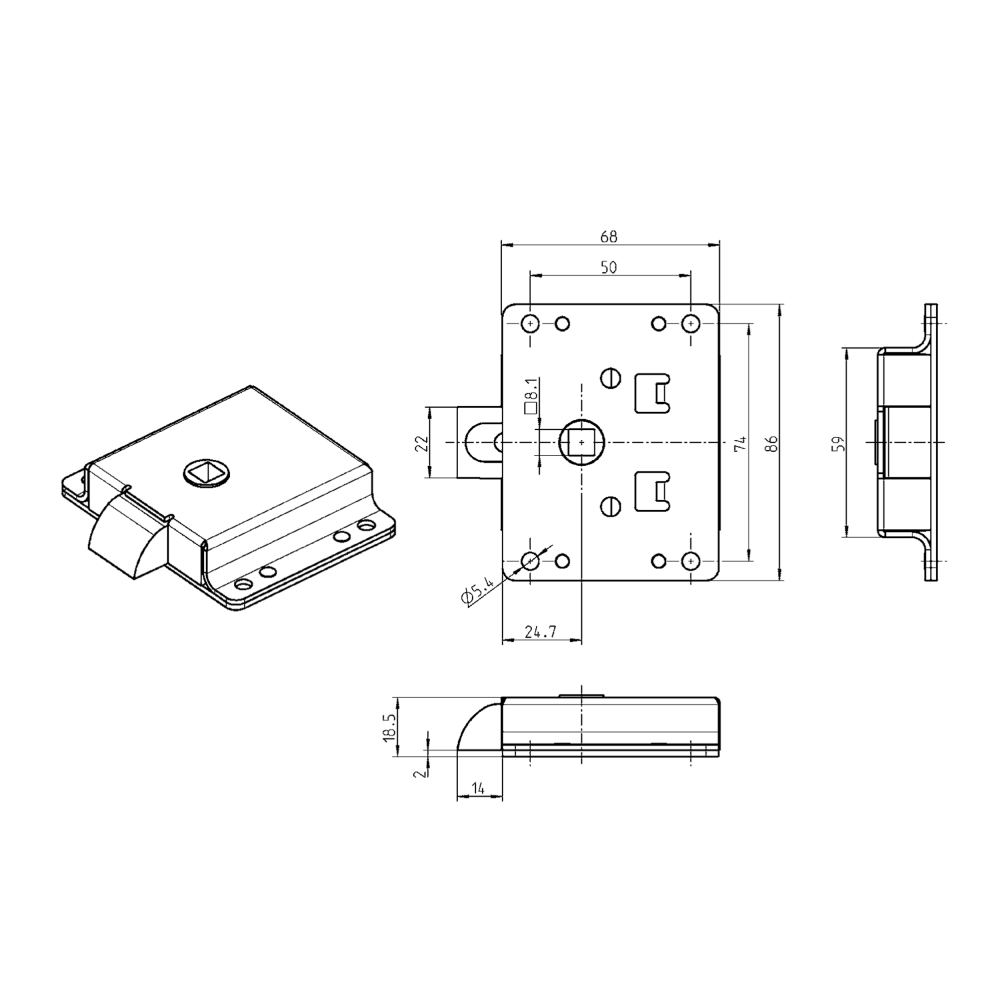

Slam lock manufactured in steel, which is mounted by screw mounting. The length is 86mm, the width is 82mm and the height is 18,5mm. The shortest hole distance: 50mm.
Detachable
No
Hole type
Simple
Components
Slam lock
Closing
Push to close
Material type
Steel
Mounting type
Screw mounting
Surface finish
Electro zinc plated
Hole diameter in mm
5.4
Hole distance in mm
74
Height in mm
18.5
Length in mm
86
Plate thickness min.
0
Plate thickness max.
0
Push-in force
0
Pulling force
0
Thickness in mm
0
Long description
Slam lock manufactured in steel, which is mounted by screw mounting. The length is 86mm, the width is 82mm and the height is 18,5mm. The shortest hole distance: 50mm.
