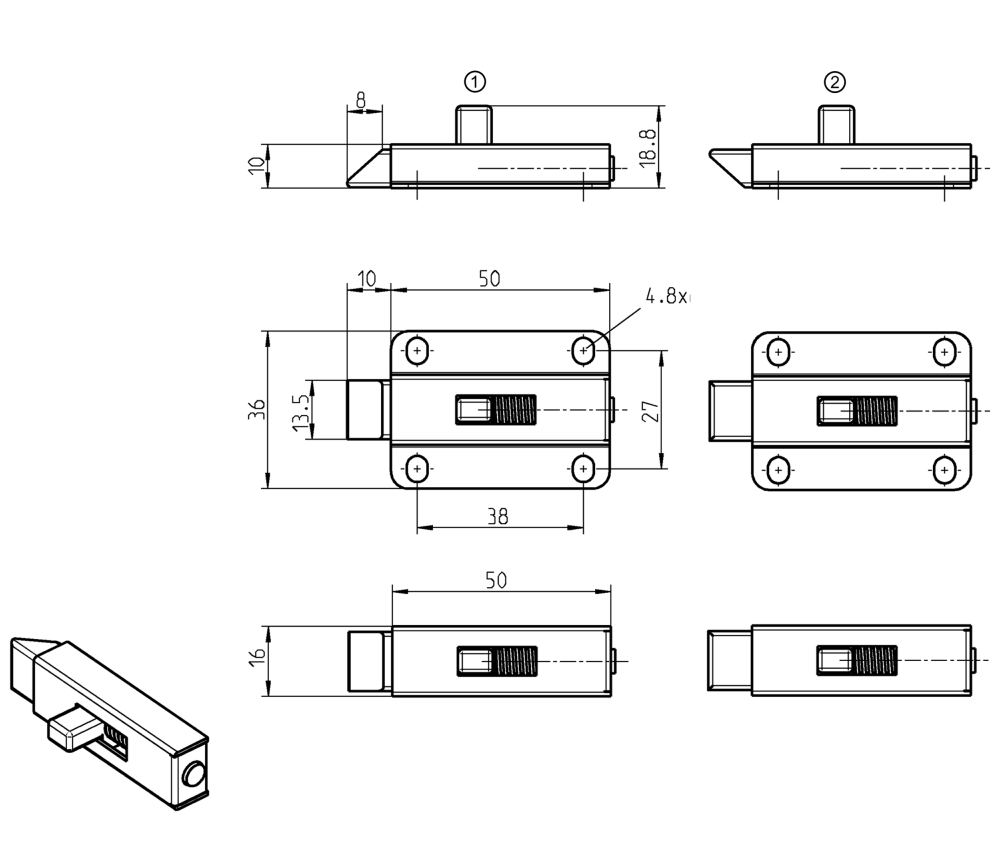

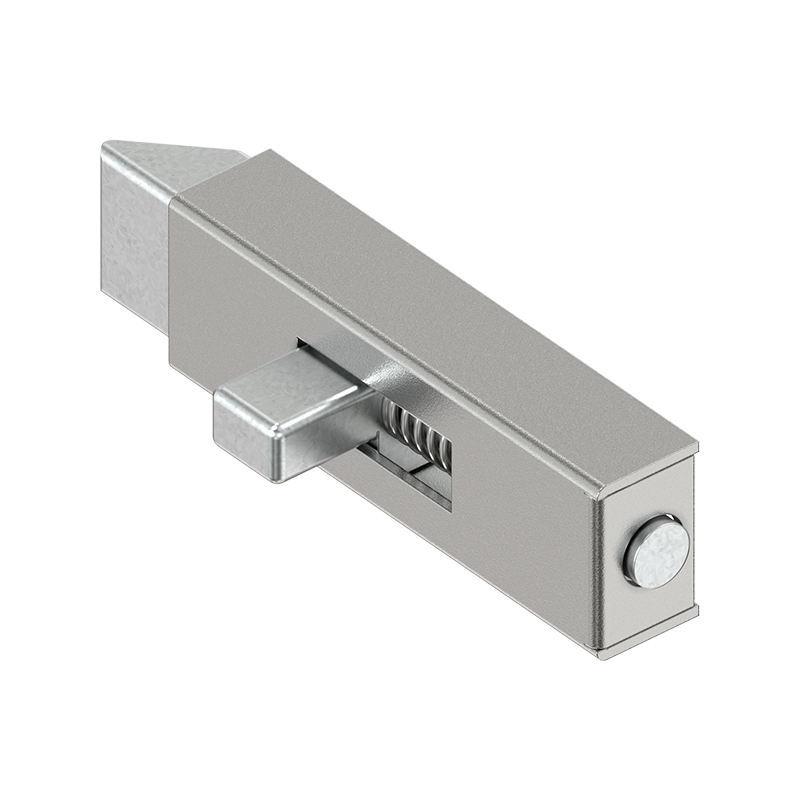

Slam lock, steel, weld-on, length=60, width=16, height=18,8, version 2
MT102269
Slam lock manufactured in steel, which is mounted by weld-on. The length is 60mm, the width is 16mm and the height is 18,8mm. Several versions exist and this is version 2
Detachable
No
Spring-loaded
Yes
Components
Slam lock
Closing
Push to close
Material type
Steel
Mounting type
Weld-on
Surface finish
Untreated
Version
2
Hole diameter in mm
0
Hole distance in mm
0
Height in mm
18.8
Length in mm
60
Plate thickness min.
0
Plate thickness max.
0
Push-in force
0
Pulling force
0
Thickness in mm
0
Long description
Slam lock manufactured in steel, which is mounted by weld-on. The length is 60mm, the width is 16mm and the height is 18,8mm. Several versions exist and this is version 2
