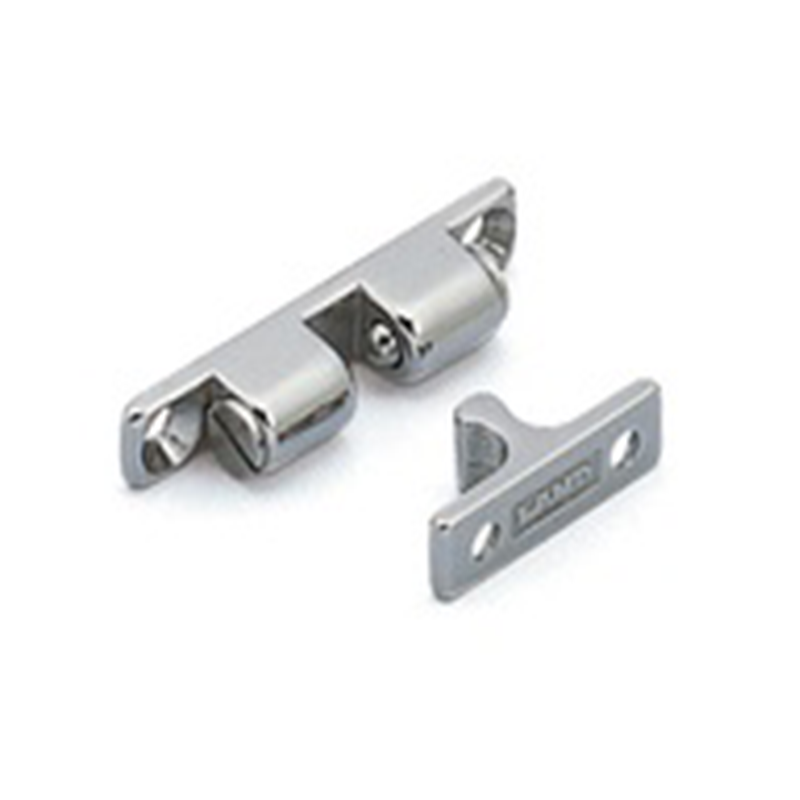

Tension catch, acid proof stainless steel, screw mounting, length=43, width=8, height=10
MT109456
Tension catch manufactured in acid proof stainless steel, which is mounted by screw mounting. The length is 43mm, the width is 8mm and the height is 10mm.
Other approvals
RoHS 2
Hole type
Countersunk
Adjustable
No
Components
Tension catch
Closing
Push to close
Material
SUS 316
Material type
Acid proof Stainless Steel
Mounting type
Screw mounting
Surface finish
Polished
Opening
Pull to open
Hole diameter in mm
3.2
Hole distance in mm
35
Height in mm
10
Length in mm
43
Plate thickness min.
0
Plate thickness max.
0
Push-in force
20
Pulling force
13
Thickness in mm
2.5
Long description
Tension catch manufactured in acid proof stainless steel, which is mounted by screw mounting. The length is 43mm, the width is 8mm and the height is 10mm.
