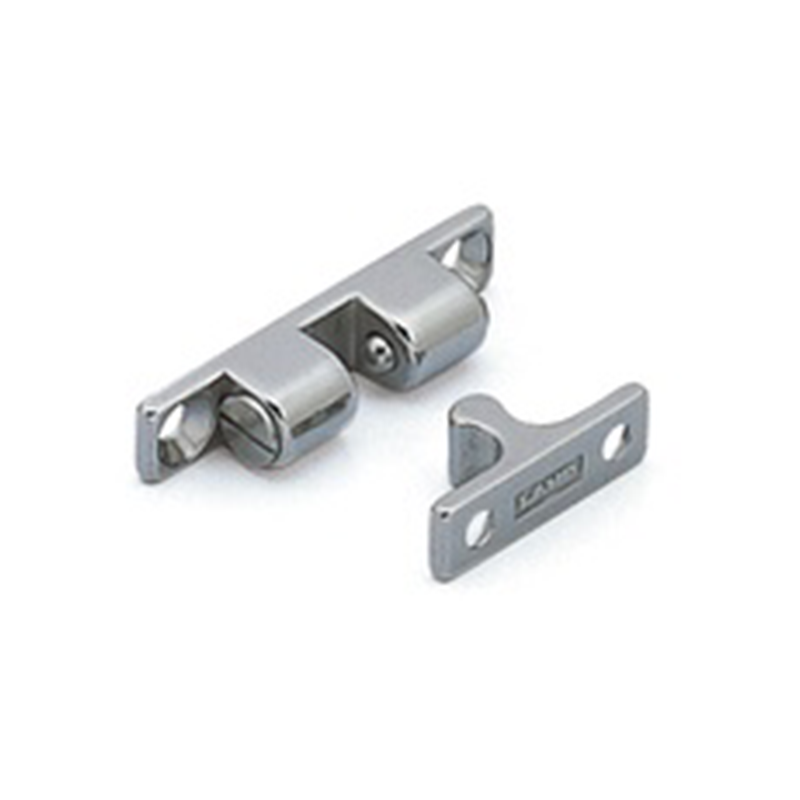

Tension catch, acid proof stainless steel, screw mounting, length=50, width=10, height=12,2
MT109457
Tension catch manufactured in acid proof stainless steel, which is mounted by screw mounting. The length is 50mm, the width is 10mm and the height is 12,2mm.
Other approvals
RoHS 2
Hole type
Countersunk
Adjustable
No
Components
Tension catch
Closing
Push to close
Material
SUS 316
Material type
Acid proof Stainless Steel
Mounting type
Screw mounting
Surface finish
Polished
Opening
Pull to open
Hole diameter in mm
4.2
Hole distance in mm
40
Height in mm
12.2
Length in mm
50
Plate thickness min.
0
Plate thickness max.
0
Push-in force
23
Pulling force
18
Thickness in mm
2.9
Long description
Tension catch manufactured in acid proof stainless steel, which is mounted by screw mounting. The length is 50mm, the width is 10mm and the height is 12,2mm.
