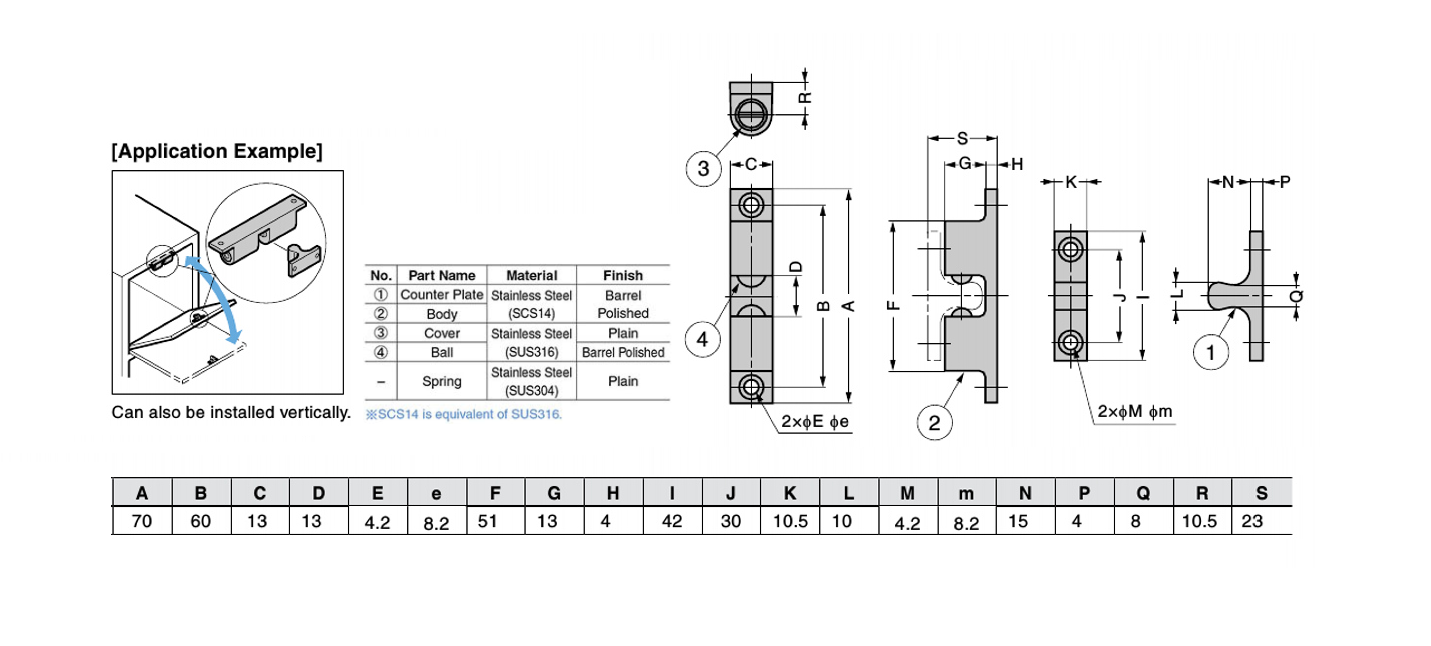

Tension catch, acid proof stainless steel, screw mounting, length=70, width=13, height=17
MT109458
Tension catch manufactured in acid proof stainless steel, which is mounted by screw mounting. The length is 70mm, the width is 13mm and the height is 17mm.
Other approvals
RoHS 2
Hole type
Countersunk
Adjustable
No
Components
Tension catch
Closing
Push to close
Material
SUS 316
Material type
Acid proof Stainless Steel
Mounting type
Screw mounting
Surface finish
Polished
Opening
Pull to open
Hole diameter in mm
4.2
Hole distance in mm
60
Height in mm
17
Length in mm
70
Plate thickness min.
0
Plate thickness max.
0
Push-in force
56
Pulling force
38
Thickness in mm
4
Long description
Tension catch manufactured in acid proof stainless steel, which is mounted by screw mounting. The length is 70mm, the width is 13mm and the height is 17mm.
