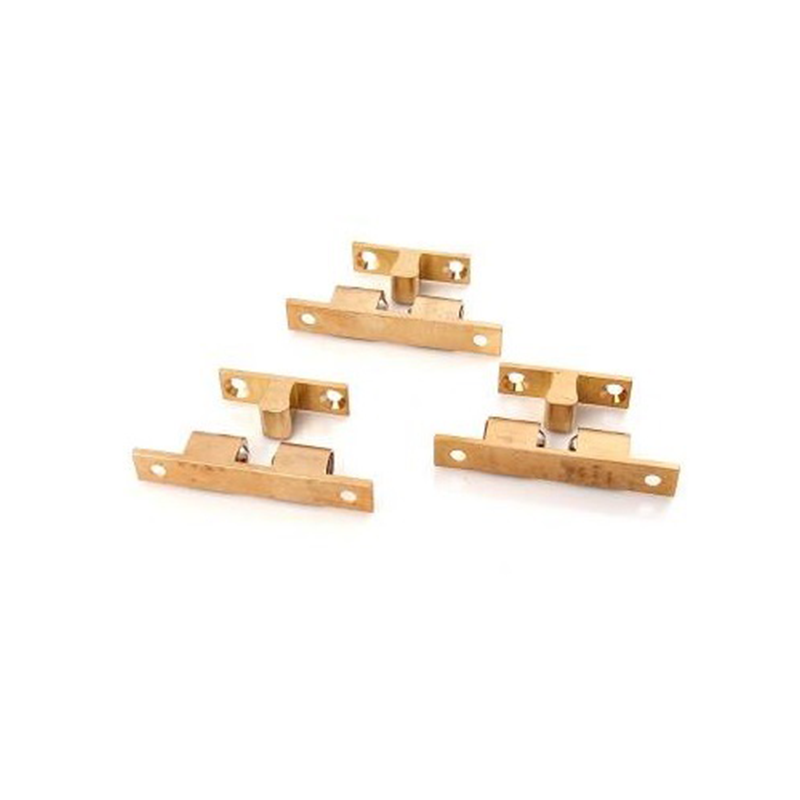

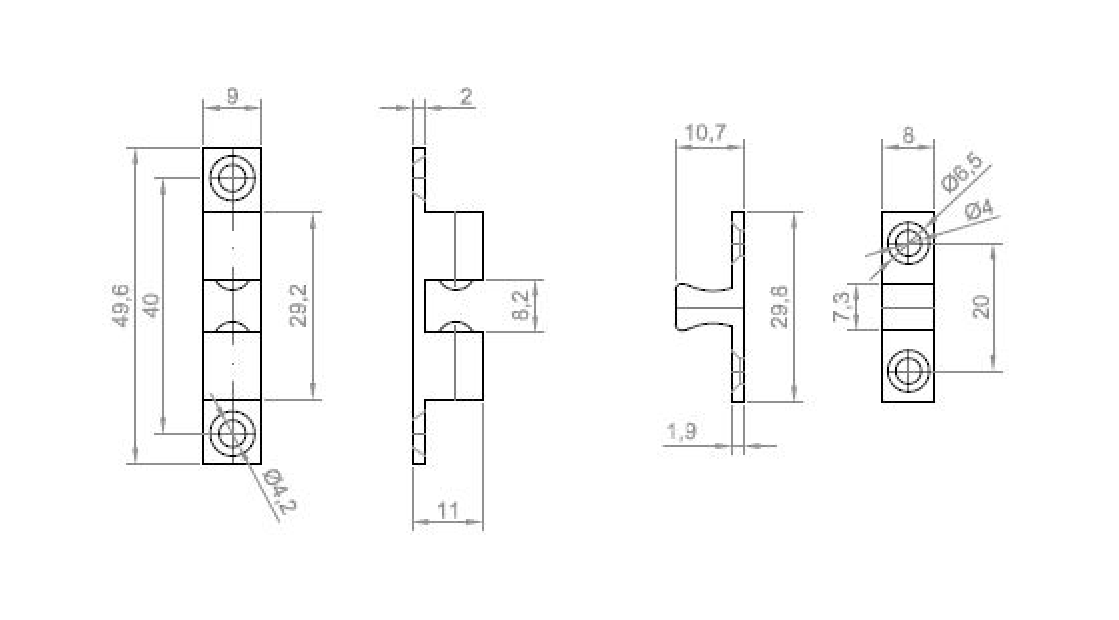

Tension catch, brass, screw mounting, length=49,6, width=9, height=11
MT106300
Tension catch manufactured in brass, which is mounted by screw mounting. The length is 49,6mm, the width is 9mm and the height is 11mm.
Hole type
Countersunk
Components
Tension catch
Closing
Push to close
Material type
Brass
Mounting type
Screw mounting
Opening
Pull to open
Hole diameter in mm
4.2
Hole distance in mm
40
Height in mm
11
Length in mm
49.6
Plate thickness min.
0
Plate thickness max.
0
Push-in force
0
Pulling force
0
Thickness in mm
2
Long description
Tension catch manufactured in brass, which is mounted by screw mounting. The length is 49,6mm, the width is 9mm and the height is 11mm.
