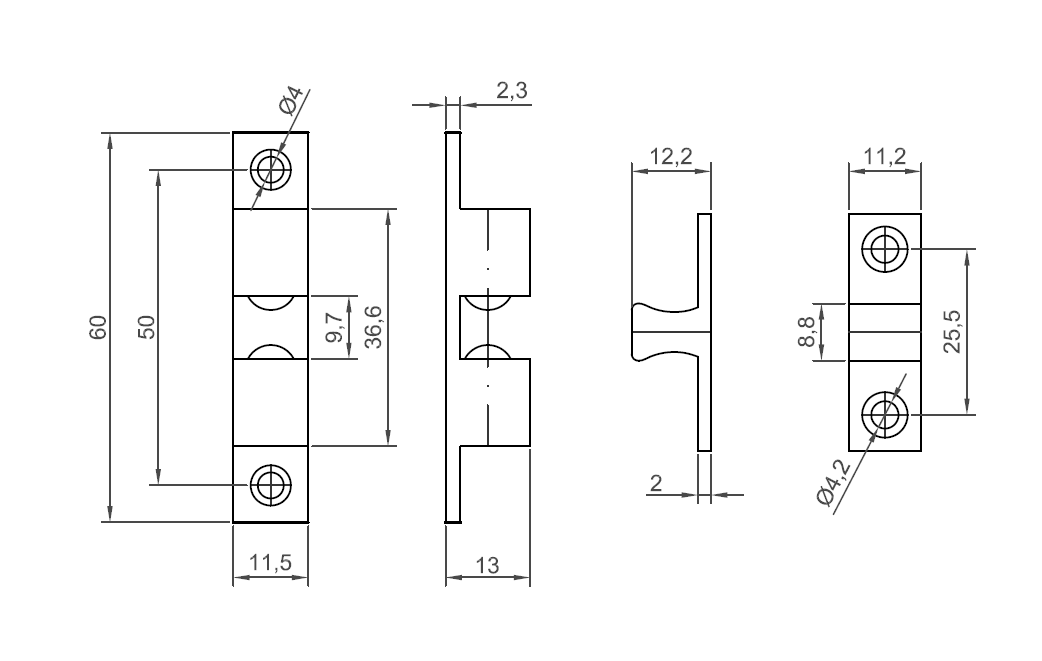

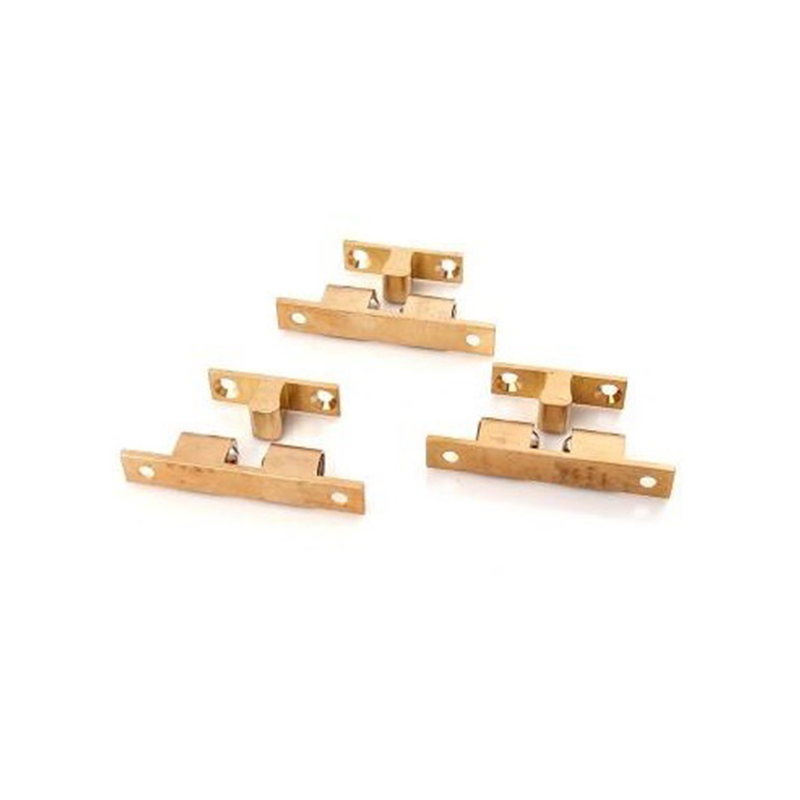

Tension catch, brass, screw mounting, length=60, width=11,5, height=13
MT106301
Tension catch manufactured in brass, which is mounted by screw mounting. The length is 60mm, the width is 11,5mm and the height is 13mm.
Hole type
Countersunk
Components
Tension catch
Closing
Push to close
Material type
Brass
Mounting type
Screw mounting
Opening
Pull to open
Hole diameter in mm
4
Hole distance in mm
50
Height in mm
13
Length in mm
60
Plate thickness min.
0
Plate thickness max.
0
Push-in force
0
Pulling force
0
Thickness in mm
2.3
Long description
Tension catch manufactured in brass, which is mounted by screw mounting. The length is 60mm, the width is 11,5mm and the height is 13mm.
