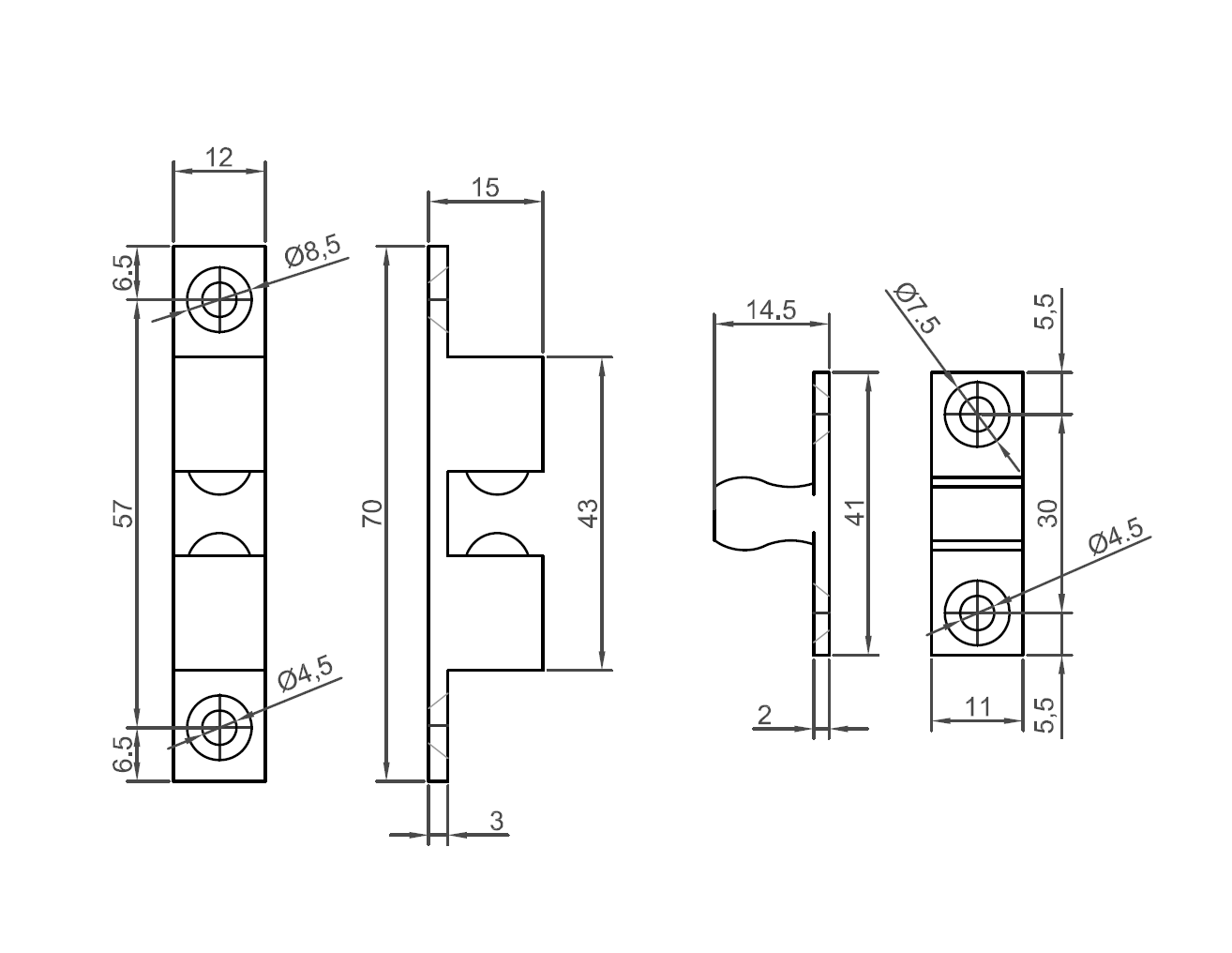

Tension catch, brass, screw mounting, length=70, width=12, height=15
MT111770

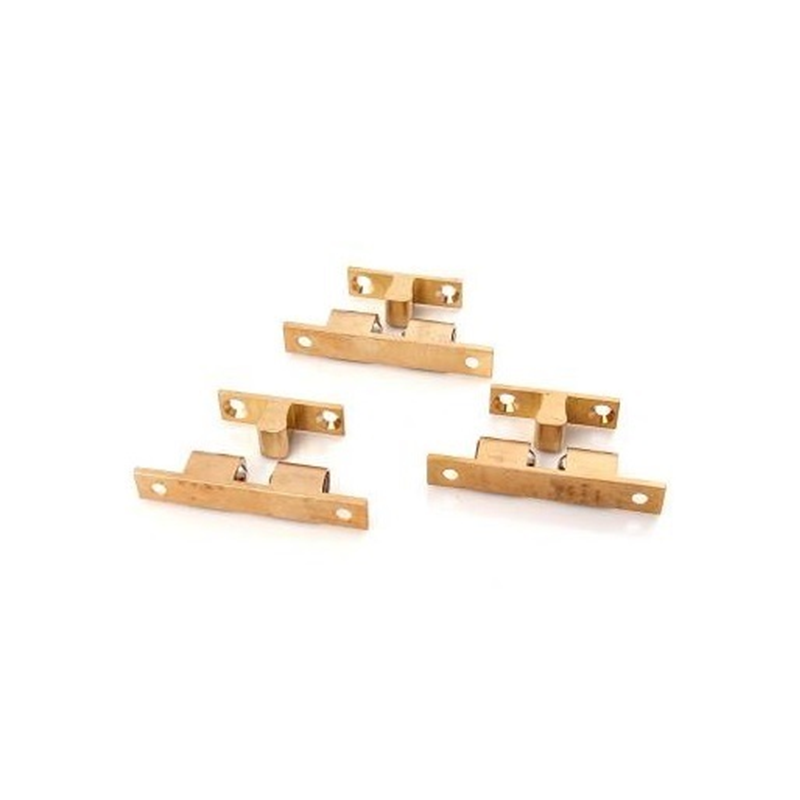

Tension catch manufactured in brass which is mounted by screw mounting. The length is 70mm, the width is 12mm and the height is 15mm.
Hole type
Countersunk
Components
Tension catch
Closing
Push to close
Material type
Brass
Mounting type
Screw mounting
Hole diameter in mm
4.5
Hole distance in mm
57
Height in mm
15
Length in mm
70
Plate thickness min.
0
Plate thickness max.
0
Thickness in mm
3
Long description
Tension catch manufactured in brass which is mounted by screw mounting. The length is 70mm, the width is 12mm and the height is 15mm.
