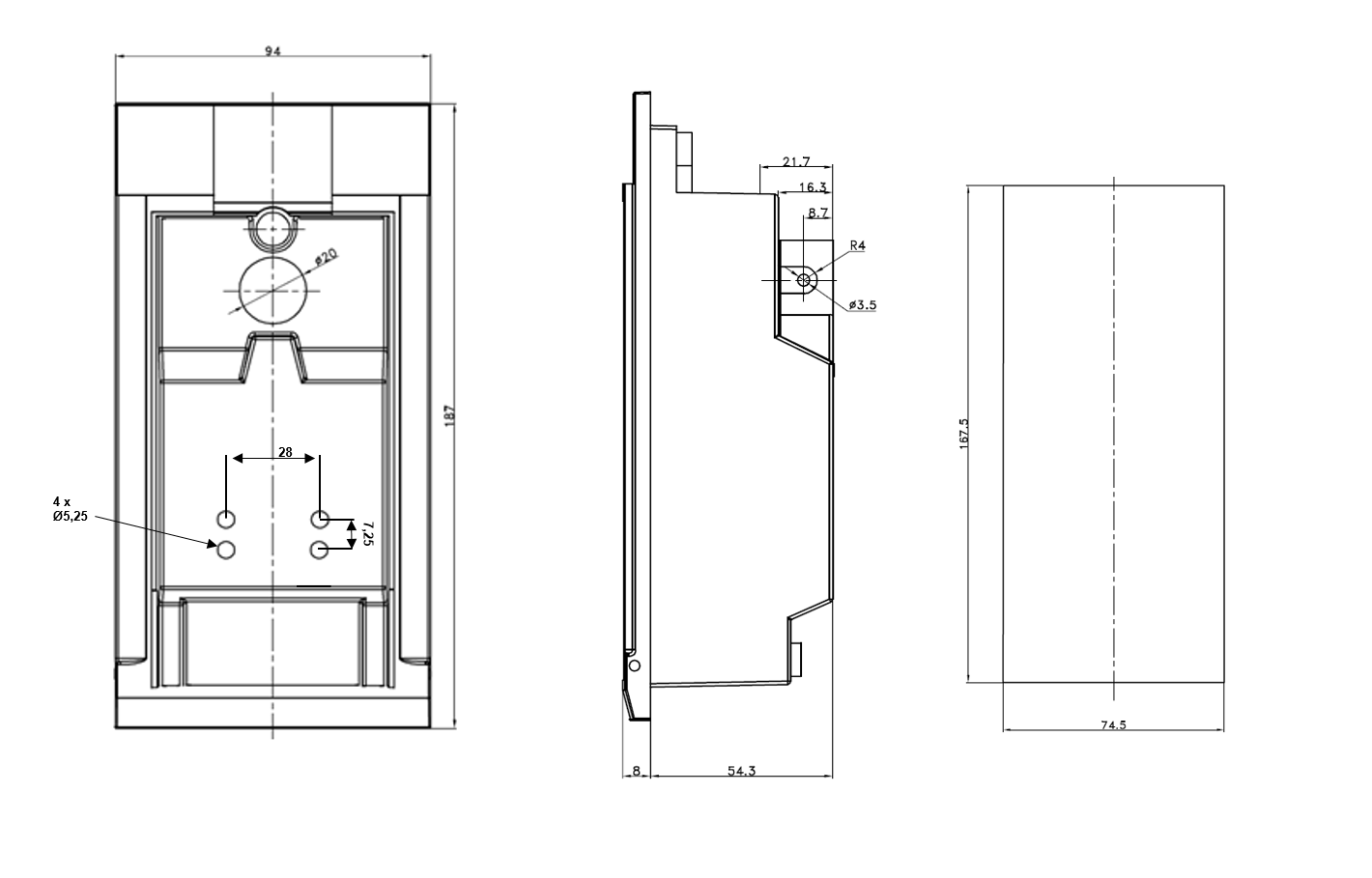

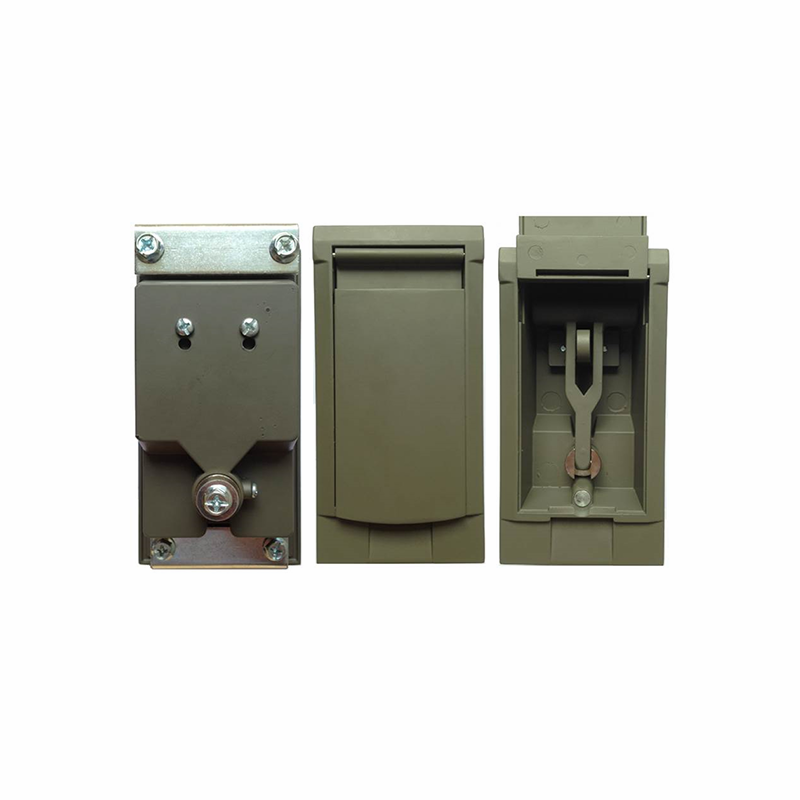

Lock, die-cast zinc, screw mounting, length=187, width=94, height=62,3
MT110280
Lock manufactured in die-cast zinc which is mounted by screw mounting. The length is 187mm, the width is 94mm and the height 62,3mm. Suitable to use with Item no. LK-STANGTRAEK.
The shortest hole distance is 7,25mm.
A-measure
Hole type
Simple
Padlockable
Yes
Components
Lock
Locking component
Purchase
Material type
Die-cast zinc
Mounting type
Screw mounting
Surface finish
Green powder coated
Diameter in mm
0
Thread length in mm
0
Hole diameter in mm
5.28
Hole distance in mm
28
Height in mm
62.3
Length in mm
187
Thickness in mm
0
Long description
Lock manufactured in die-cast zinc which is mounted by screw mounting. The length is 187mm, the width is 94mm and the height 62,3mm. Suitable to use with Item no. LK-STANGTRAEK.
The shortest hole distance is 7,25mm.
