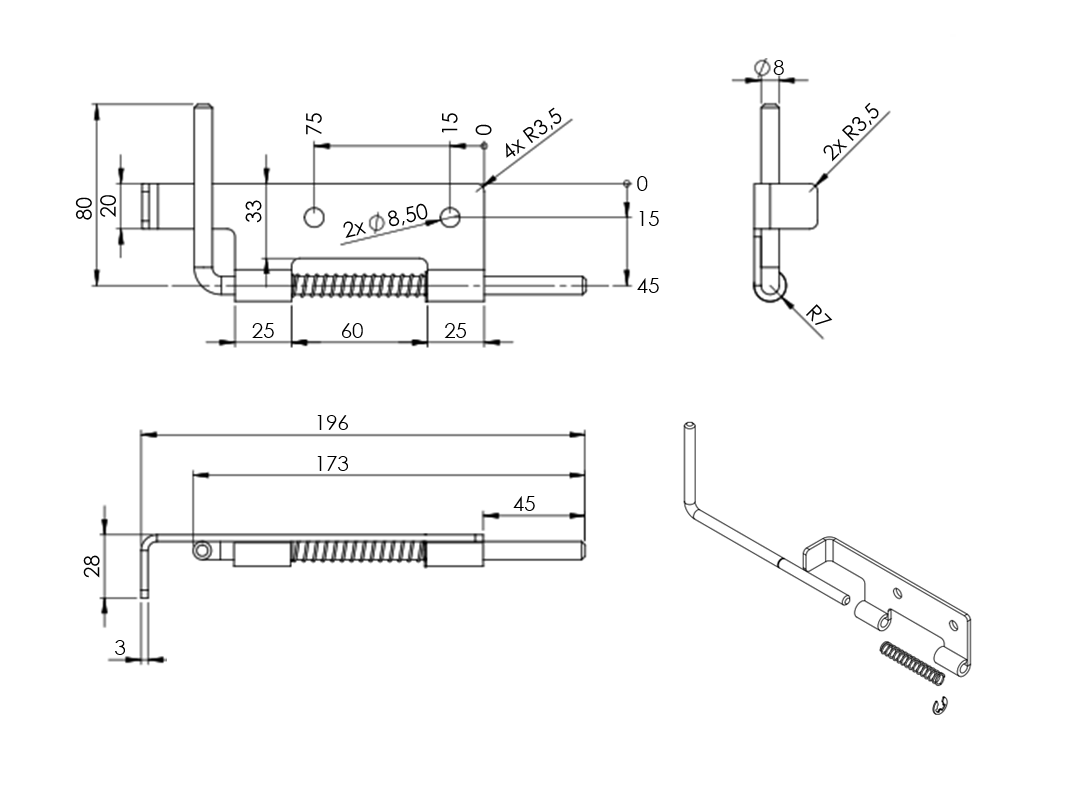

Sliding bolt, acid proof stainless steel, screw mounting, length=196, width=52, height=28
MT109180

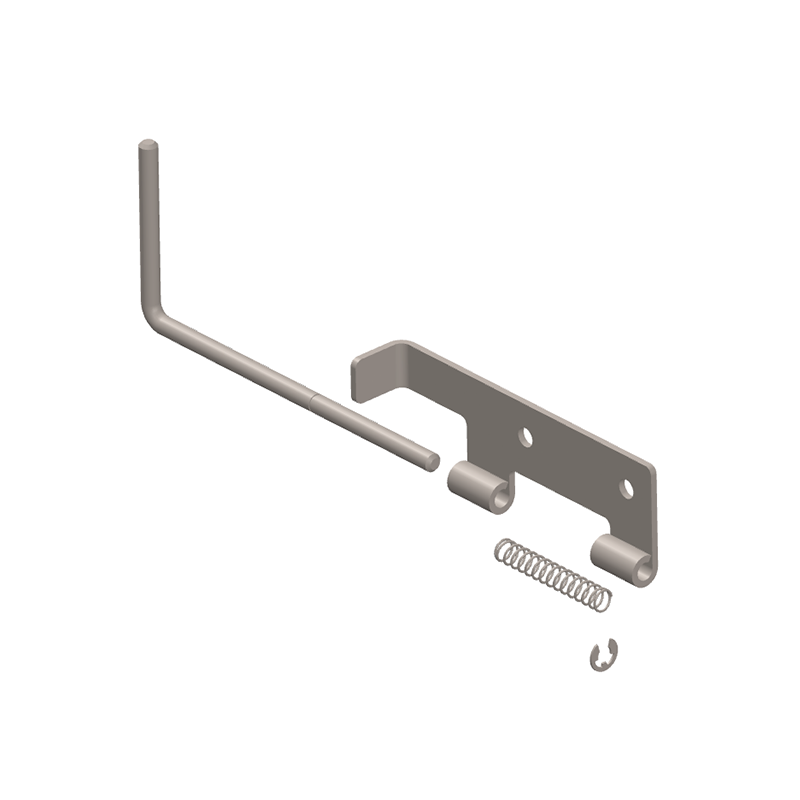

Sliding bolt manufactured in acid proof stainless steel which is mounted by screw mounting. The length is 196mm, the width is 52mm and the height 28mm. Material of the spring and circlip is: stainless steel.
Spring-loaded
Yes
Hole type
Simple
Padlockable
No
Components
Sliding bolt
Material
AISI 316
Material type
Acid proof Stainless Steel
Mounting type
Screw mounting
Diameter in mm
8
Thread length in mm
0
Hole diameter in mm
8.5
Hole distance in mm
60
Height in mm
28
Length in mm
196
Thickness in mm
3
Long description
Sliding bolt manufactured in acid proof stainless steel which is mounted by screw mounting. The length is 196mm, the width is 52mm and the height 28mm. Material of the spring and circlip is: stainless steel.
