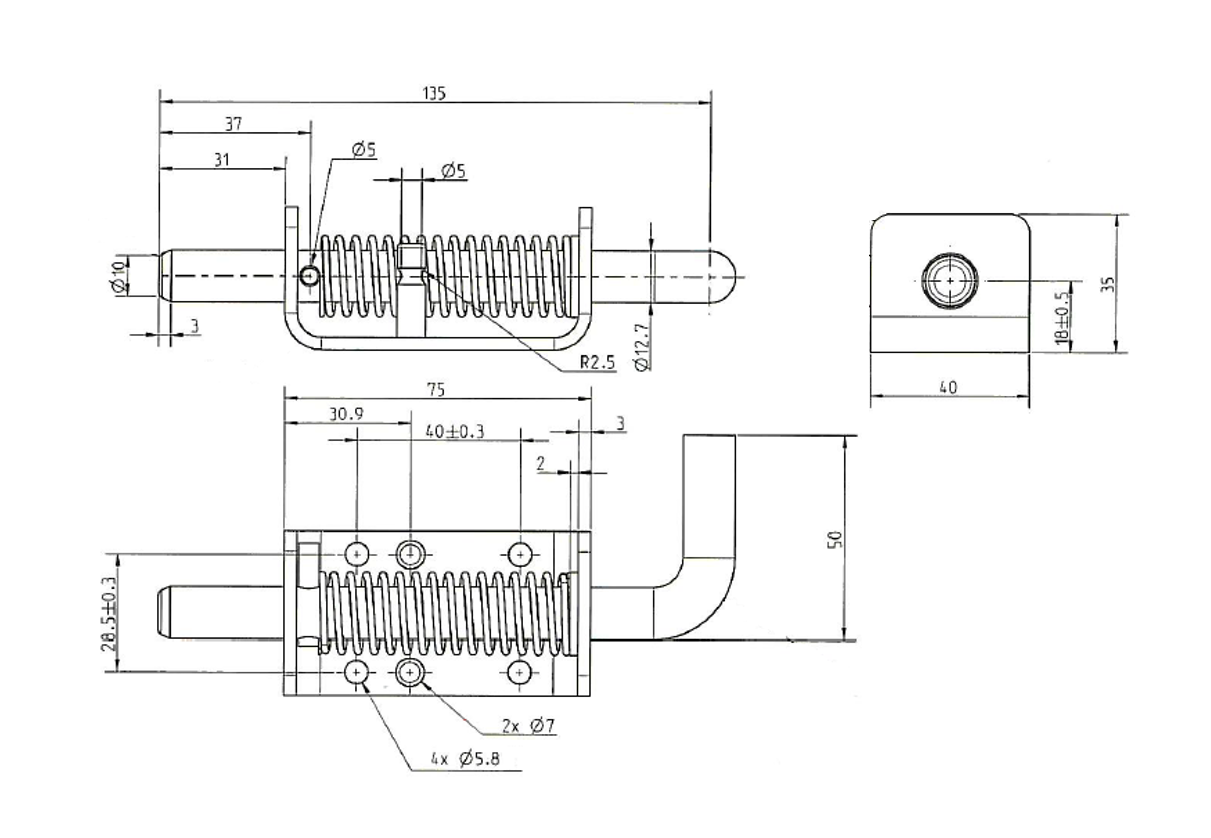

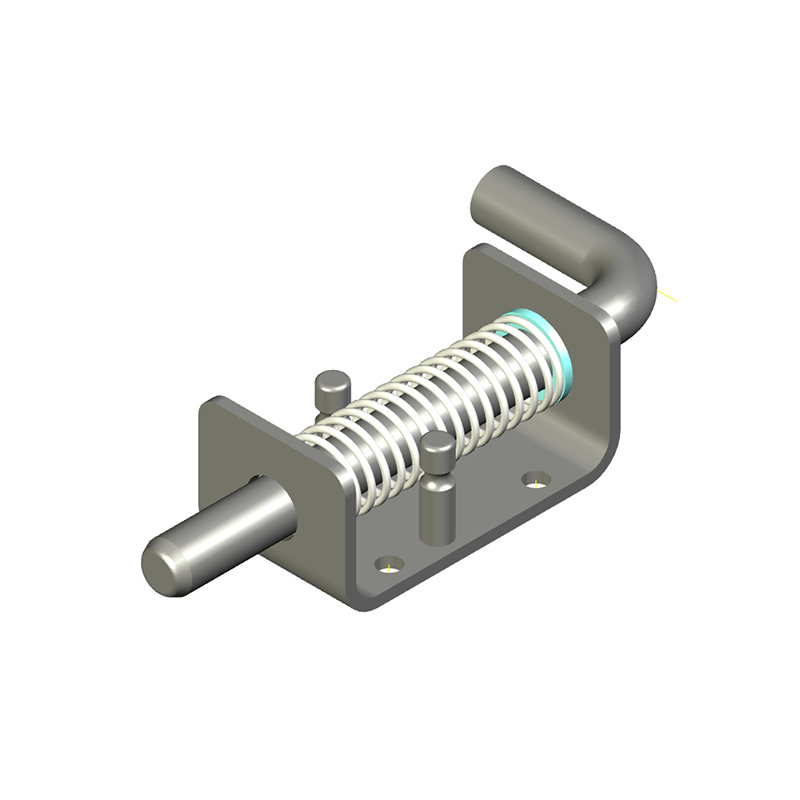

Sliding bolt, steel, screw mounting, length=135, width=40, height=35
MT110852
Sliding bolt manufactured in steel which is mounted by screw mounting. The length is 135mm, the width is 40mm and the height 35mm. The shortest hole distance is 28,5mm.
Material of the spring is stainless steel AISI 304.
Fjedervirkning
Yes
Hole type
Simple
Padlockable
No
Components
Sliding bolt
Material type
Steel
Mounting type
Screw mounting
Surface finish
Hot-dip galvanized
Diameter in mm
12.7
Gevindlængde i mm
0
Hole diameter in mm
5.8
Hulmål i mm
40
Height in mm
35
Length i mm
135
Thickness in mm
0
Nettovægt
0.32
Varekode
8302490099
Lande-/områdekode for oprindelse
CN
Long description
Sliding bolt manufactured in steel which is mounted by screw mounting. The length is 135mm, the width is 40mm and the height 35mm. The shortest hole distance is 28,5mm.
Material of the spring is stainless steel AISI 304.
