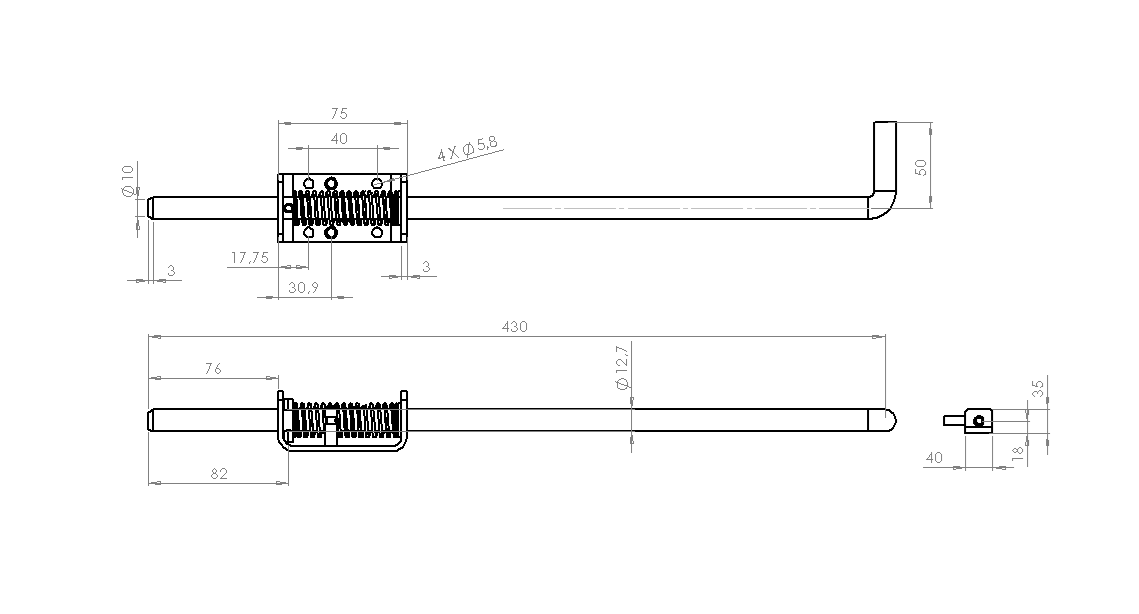

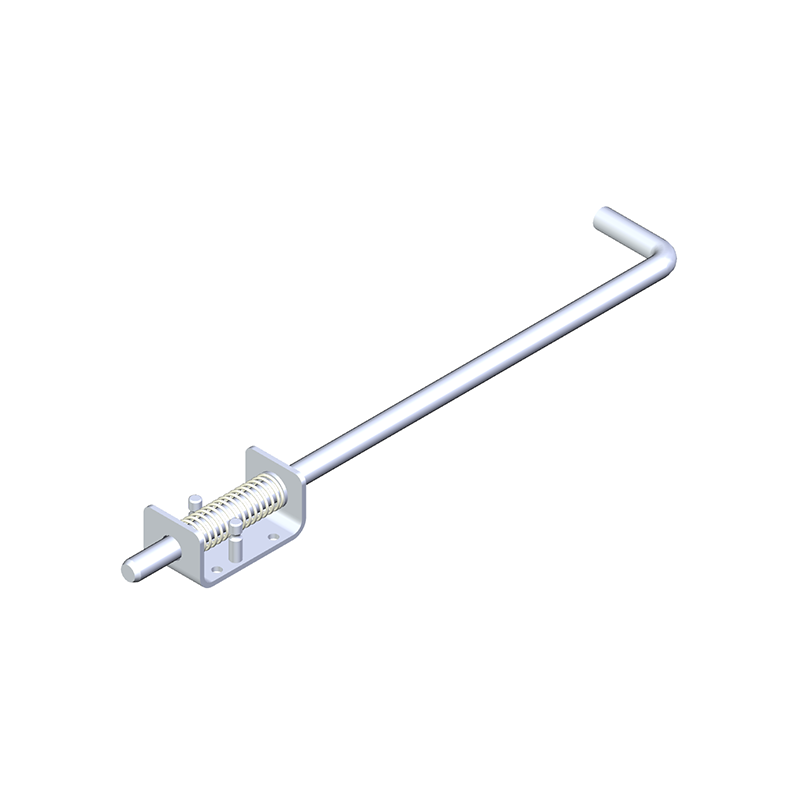

Sliding bolt, steel, screw mounting, length=430, width=40, height=35
MT110854
Sliding bolt manufactured in steel which is mounted by screw mounting. The length is 430mm, the width is 40mm and the height 35mm. The shortest hole distance is 28,5mm.
Material of the spring is stainless steel AISI 301.
A-measure
Spring-loaded
Yes
Hole type
Simple
Padlockable
No
Components
Sliding bolt
Material type
Steel
Mounting type
Screw mounting
Surface finish
Hot-dip galvanized
Diameter in mm
12.7
Thread length in mm
0
Hole diameter in mm
5.8
Hole distance in mm
40
Height in mm
35
Length in mm
430
Thickness in mm
0
Long description
Sliding bolt manufactured in steel which is mounted by screw mounting. The length is 430mm, the width is 40mm and the height 35mm. The shortest hole distance is 28,5mm.
Material of the spring is stainless steel AISI 301.
