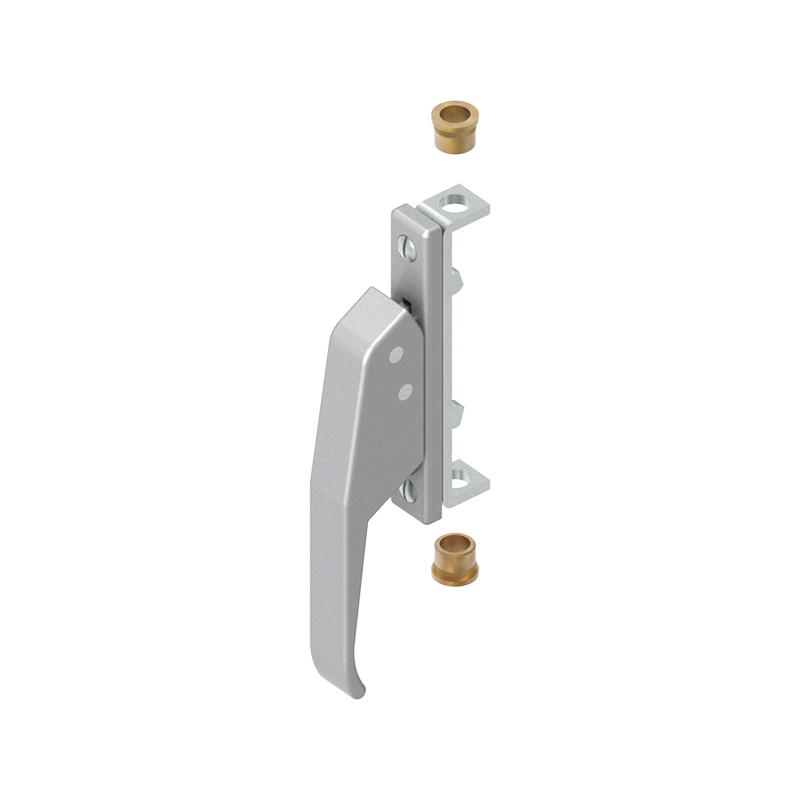

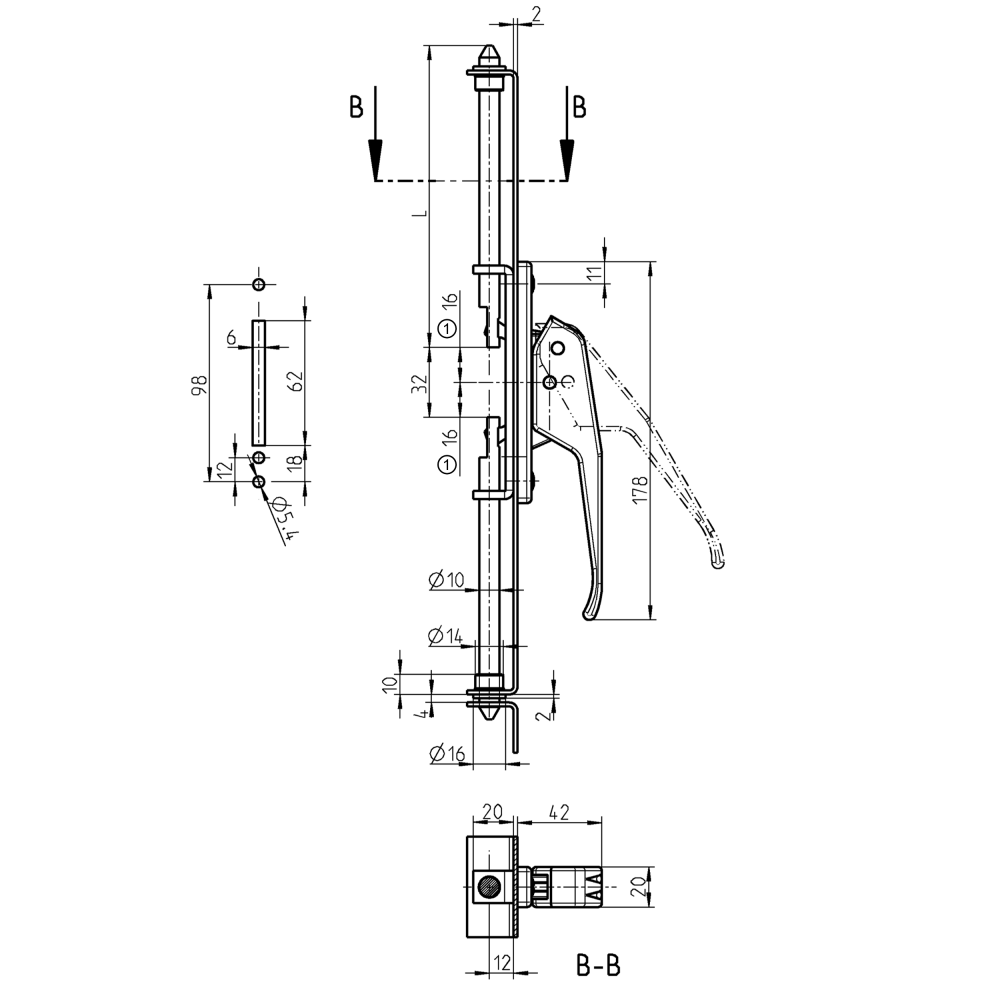

Lifthandle, die-cast zinc, screw-on, L=178, D=10
MT102699
Lifthandle manufactured in die-cast zinc, which is mounted by screw-on. The product has a length of 178mm. The diameter is 10mm. 2-point latch. Suitable for Ø10mm round rods.
A-measure
Components
Lifthandle
Material type
Die-cast zinc
Mounting type
Screw-on
Surface finish
Silver powder coated
Type
Rod control
Diameter in mm
10
Height in mm
42
Length in mm
178
Net Weight (Kg)
0.42282
HS Code
8302490099
Long description
Lifthandle manufactured in die-cast zinc, which is mounted by screw-on. The product has a length of 178mm. The diameter is 10mm. 2-point latch. Suitable for Ø10mm round rods.
