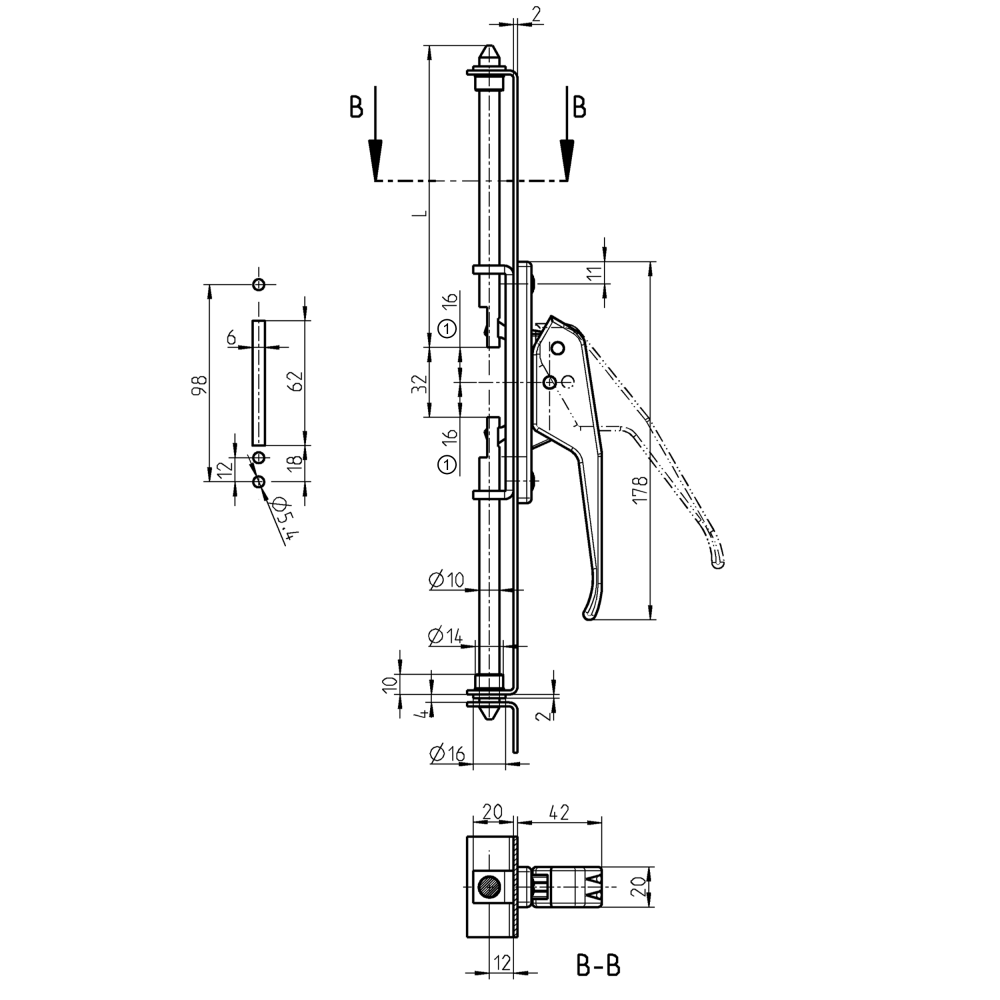

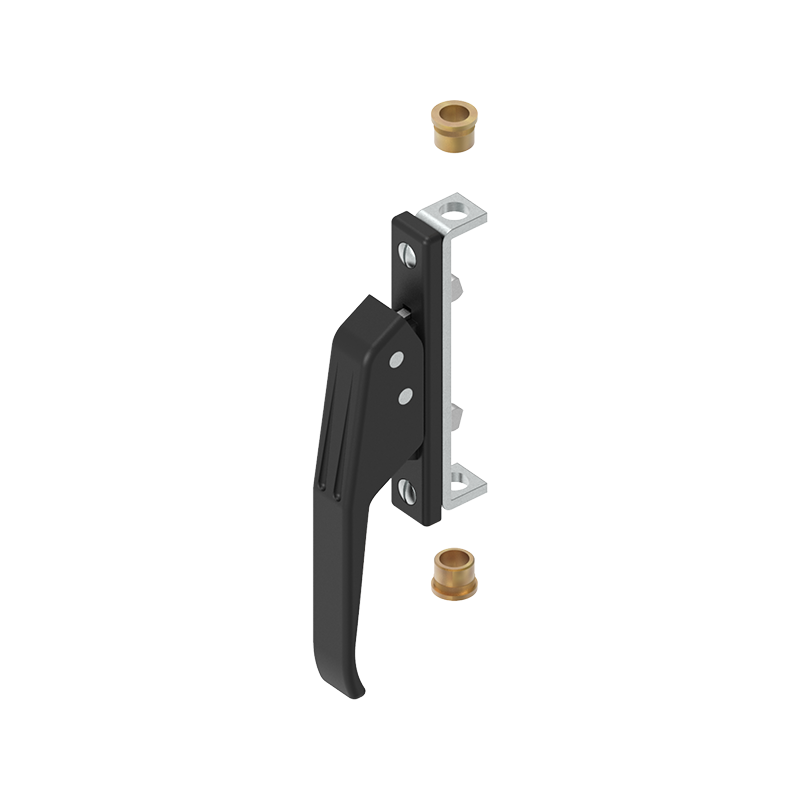

Lifthandle, glass fiber reinforced polyamide, screw-on, L=178, D=10
MT102700
Lifthandle manufactured in glass fiber reinforced polyamide, which is mounted by screw-on. The product has a length of 178mm. The diameter is 10mm. 2-point latch. Suitable for Ø10mm round rods.
A-measure
Components
Lifthandle
Material type
Glass fiber reinforced polyamide
Mounting type
Screw-on
Type
Rod control
Diameter in mm
10
Height in mm
42
Length in mm
178
Net Weight (Kg)
0.17278
HS Code
8302490099
Country of Origin
DE
Long description
Lifthandle manufactured in glass fiber reinforced polyamide, which is mounted by screw-on. The product has a length of 178mm. The diameter is 10mm. 2-point latch. Suitable for Ø10mm round rods.
