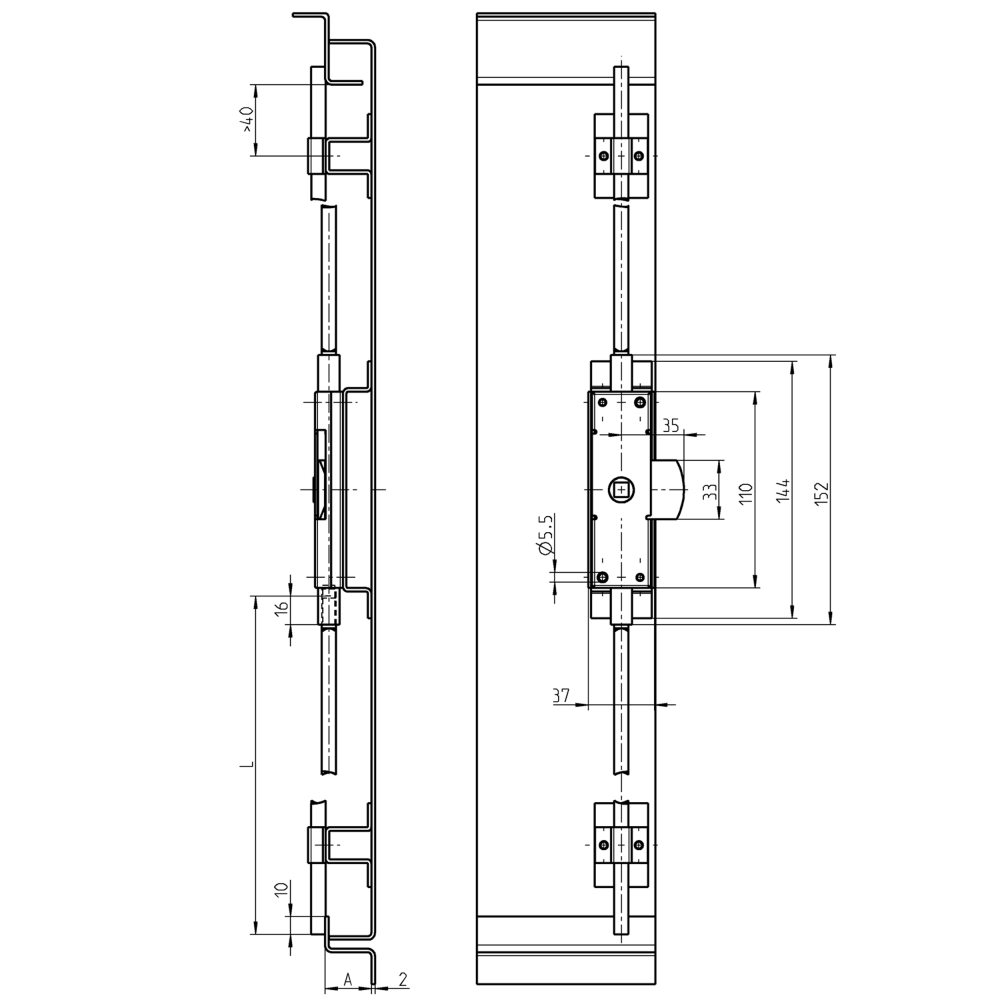

Lock, steel, universal, L=152, M8, A-measure=20 and 26
MT101482
Lock manufactured in steel with universal mounting. The product has a length of 152mm. The A-measure is 20 and 26mm. 3-point latch. Used with screwable rods with M8 thread.
A-measure
20 and 26
Components
Lock
Material type
Steel
Mounting type
Universal
Surface finish
Electro zinc plated
Type
Rod control
Version
Right
Stroke
13
Height in mm
0
Length in mm
152
Long description
Lock manufactured in steel with universal mounting. The product has a length of 152mm. The A-measure is 20 and 26mm. 3-point latch. Used with screwable rods with M8 thread.
