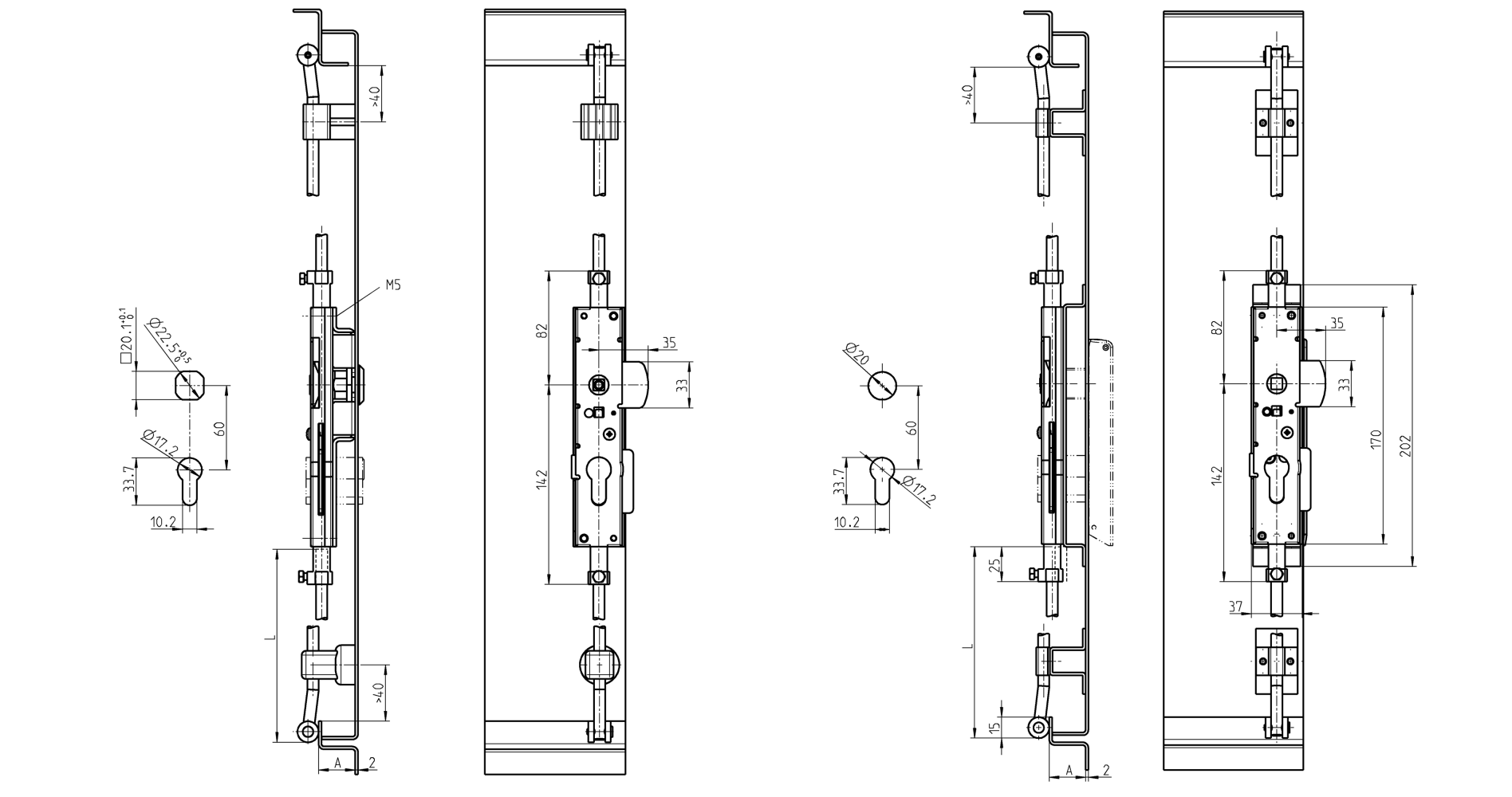

Lock, steel, universal, L=224, D=8, A-dimension=20 og 26
MT102428
Lock manufactured in steel with universal mounting. The product has a length of 224mm. The diameter is 8mm. The A-dimension is 20 og 26mm. 3-point latch. Suitable for Ø8mm round rods og profile half cylinders.
A-mål
Components
Lock
Material type
Steel
Mounting type
Universal
Surface finish
Electro zinc plated
Type
Rod control
Version
Left
Vandring
18
Diameter in mm
8
Height in mm
0
Length i mm
224
Long description
Lock manufactured in steel with universal mounting. The product has a length of 224mm. The diameter is 8mm. The A-dimension is 20 og 26mm. 3-point latch. Suitable for Ø8mm round rods og profile half cylinders.
