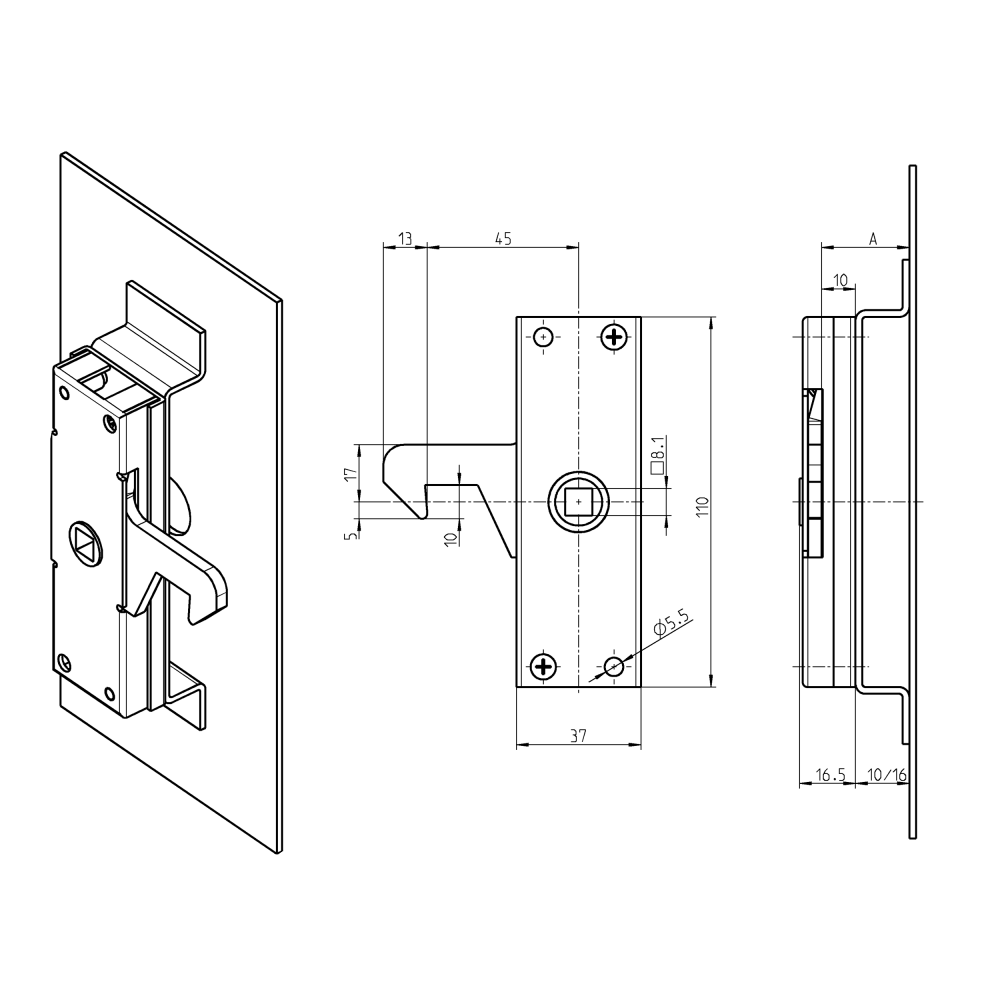

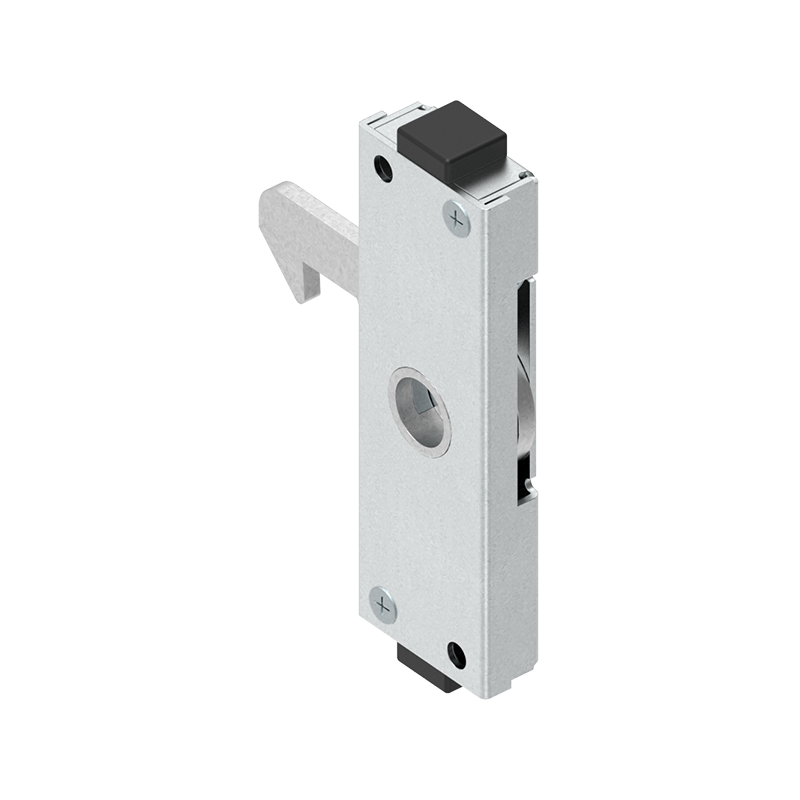

Lock, steel, weld-on, L=110, A-dimension=20 og 26
MT101504
Lock manufactured in steel, which is mounted by weld-on. The product has a length of 110mm. The A-dimension is 20 og 26mm. 1-point latch.
A-measure
20 and 26
Components
Lock
Material type
Steel
Mounting type
Weld-on
Surface finish
Electro zinc plated
Type
Hook
Version
Right
Diameter in mm
0
Height in mm
0
Length in mm
110
Long description
Lock manufactured in steel, which is mounted by weld-on. The product has a length of 110mm. The A-dimension is 20 og 26mm. 1-point latch.
