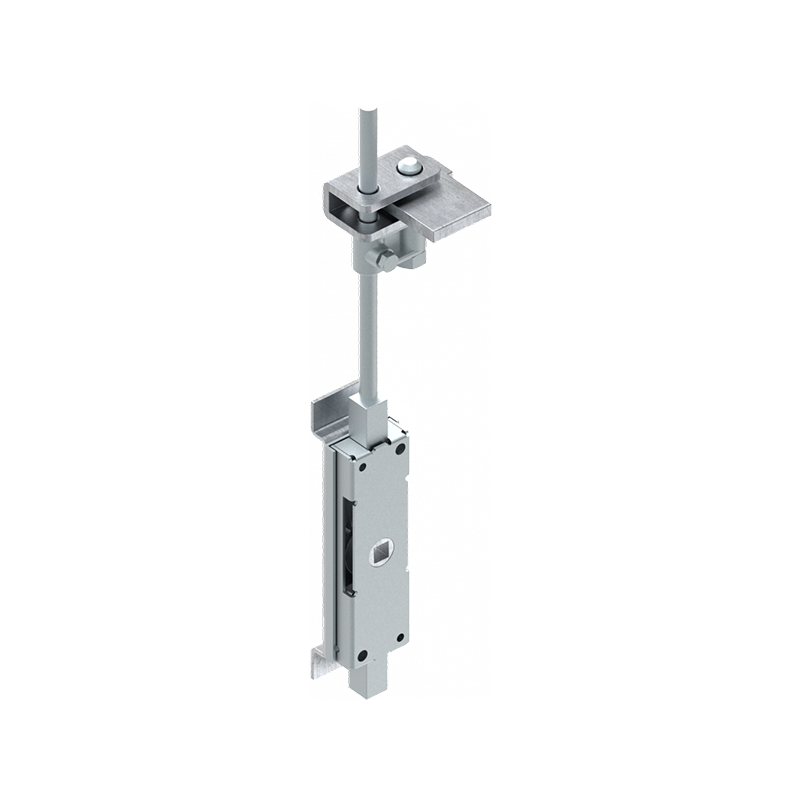

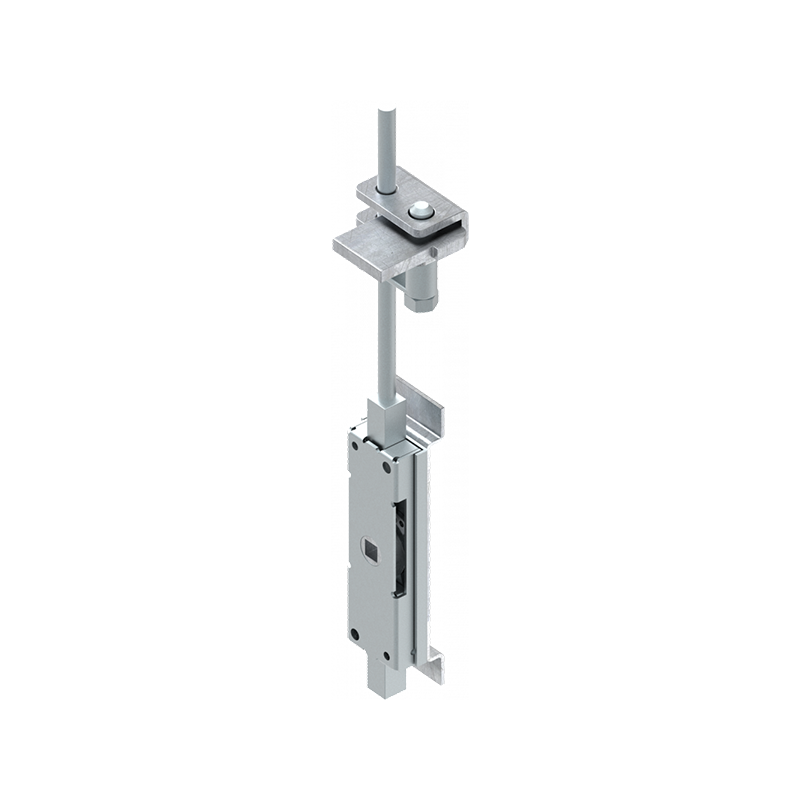

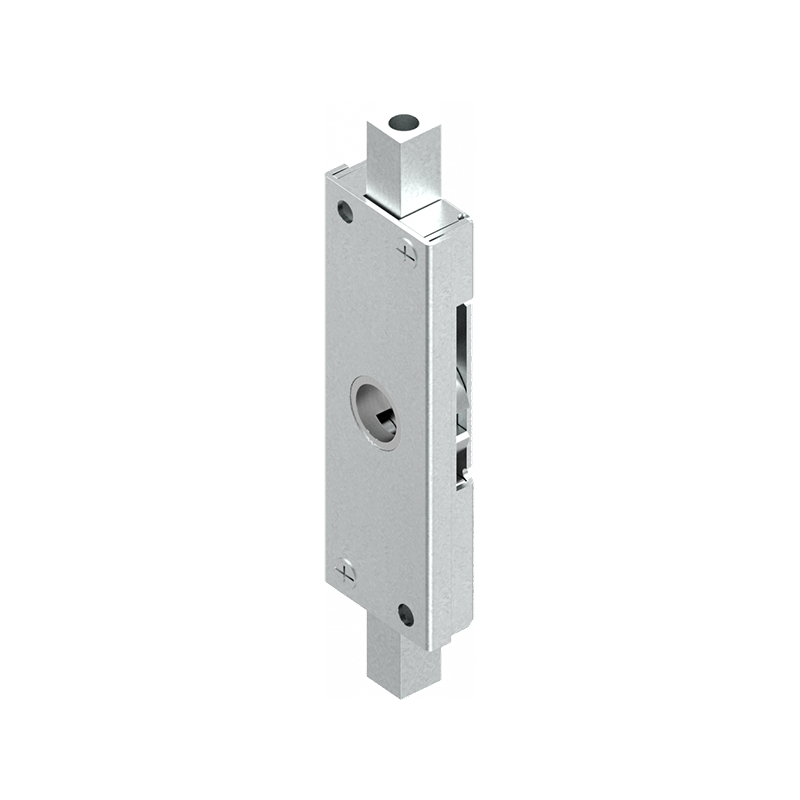

Lock, steel, weld-on, L=152, A-dimension=20
MT101512
Lock manufactured in steel which is mounted by weld-on. The product has a length of 152mm. The A-dimension is 20mm. 2-point latch. Suitable for rods with M8 threads.
A-measure
20
Components
Lock
Material type
Steel
Mounting type
Weld-on
Surface finish
Electro zinc plated
Type
Rod control
Version
Right
Stroke
18
Height in mm
0
Length in mm
152
Long description
Lock manufactured in steel which is mounted by weld-on. The product has a length of 152mm. The A-dimension is 20mm. 2-point latch. Suitable for rods with M8 threads.
Product data
