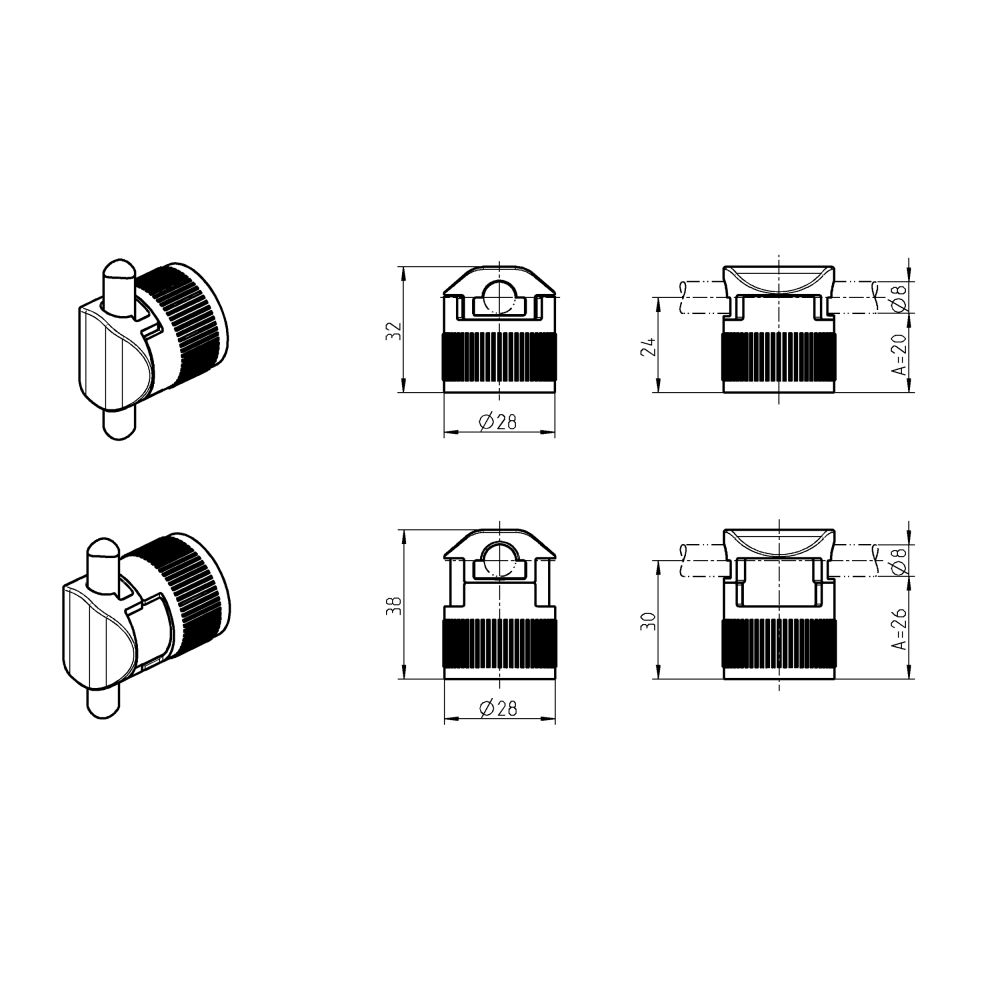

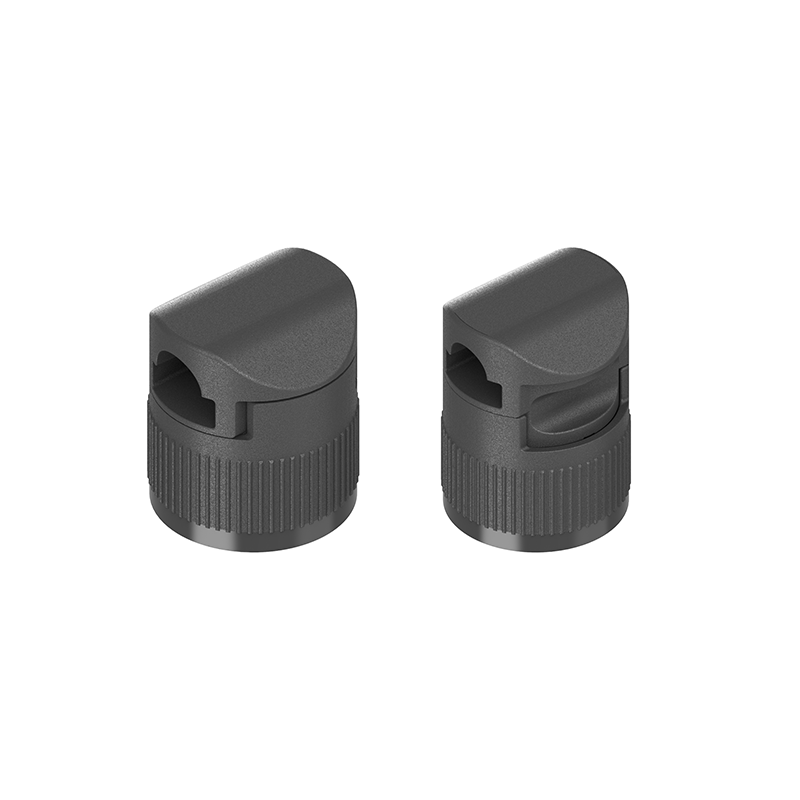

Rod guide, glass fiber reinforced polyamide, screw-on, D=8, A-dimension=20 and 26
MT101511
Rod guide manufactured in glass fiber reinforced polyamide, which is mounted by screw-on. The diameter is 8mm. The A-dimension is 20 and 26mm. Weld stud M6x16 fixing for A=20mm and M6x20 fixing for A=26mm. Suitable for Ø8mm round rods.
A-mål
20 and 26
Components
Rod guide
Material type
Glass fiber reinforced polyamide
Mounting type
Screw-on
Diameter in mm
8
Height in mm
0
Length i mm
0
Long description
Rod guide manufactured in glass fiber reinforced polyamide, which is mounted by screw-on. The diameter is 8mm. The A-dimension is 20 and 26mm. Weld stud M6x16 fixing for A=20mm and M6x20 fixing for A=26mm. Suitable for Ø8mm round rods.
