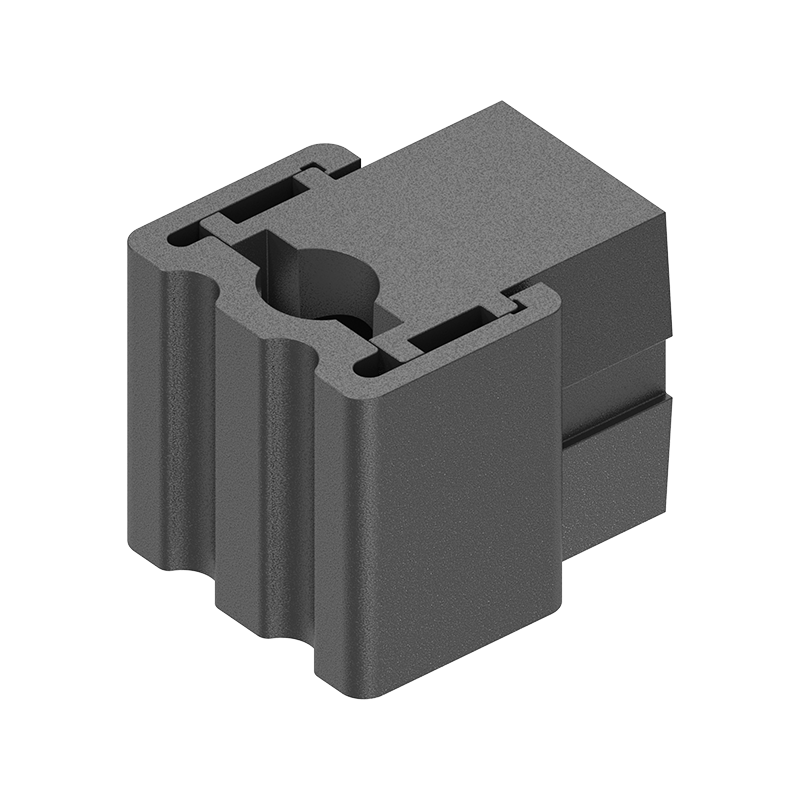

Rod guide, glass fiber reinforced polyamide, screw-on, D=8, A-dimension=20, B=31
MT101509

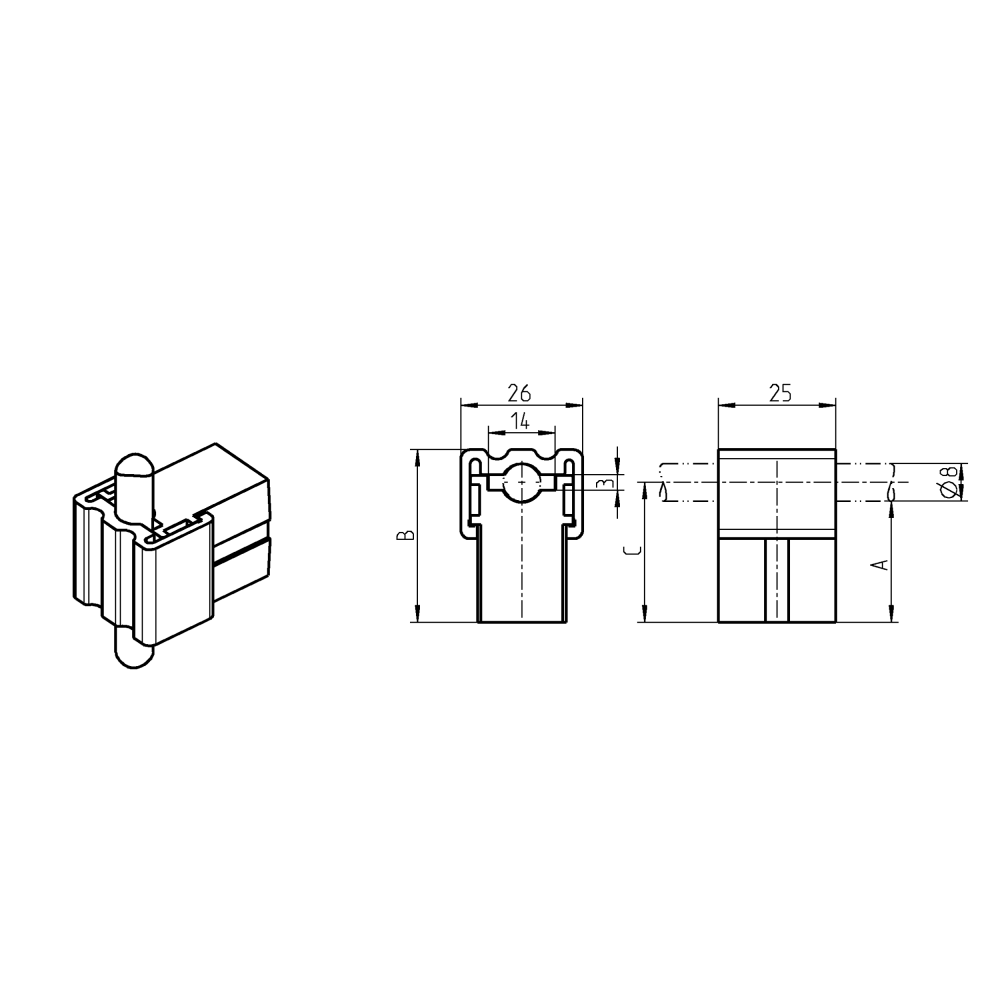

Rod guide manufactured in glass fiber reinforced polyamide, which is mounted by screw-on. The diameter is 8mm. The A-dimension is 20mm. The dimension B is 31mm. Weld stud M6x12/M6x16/M6x20 fixing. Suitable for 14x3mm flat rods and Ø8mm round rods.
A-mål
20
B
31
C
24
Components
Rod guide
Material type
Glass fiber reinforced polyamide
Mounting type
Screw-on
Diameter in mm
8
Height in mm
0
Length i mm
0
Long description
Rod guide manufactured in glass fiber reinforced polyamide, which is mounted by screw-on. The diameter is 8mm. The A-dimension is 20mm. The dimension B is 31mm. Weld stud M6x12/M6x16/M6x20 fixing. Suitable for 14x3mm flat rods and Ø8mm round rods.
