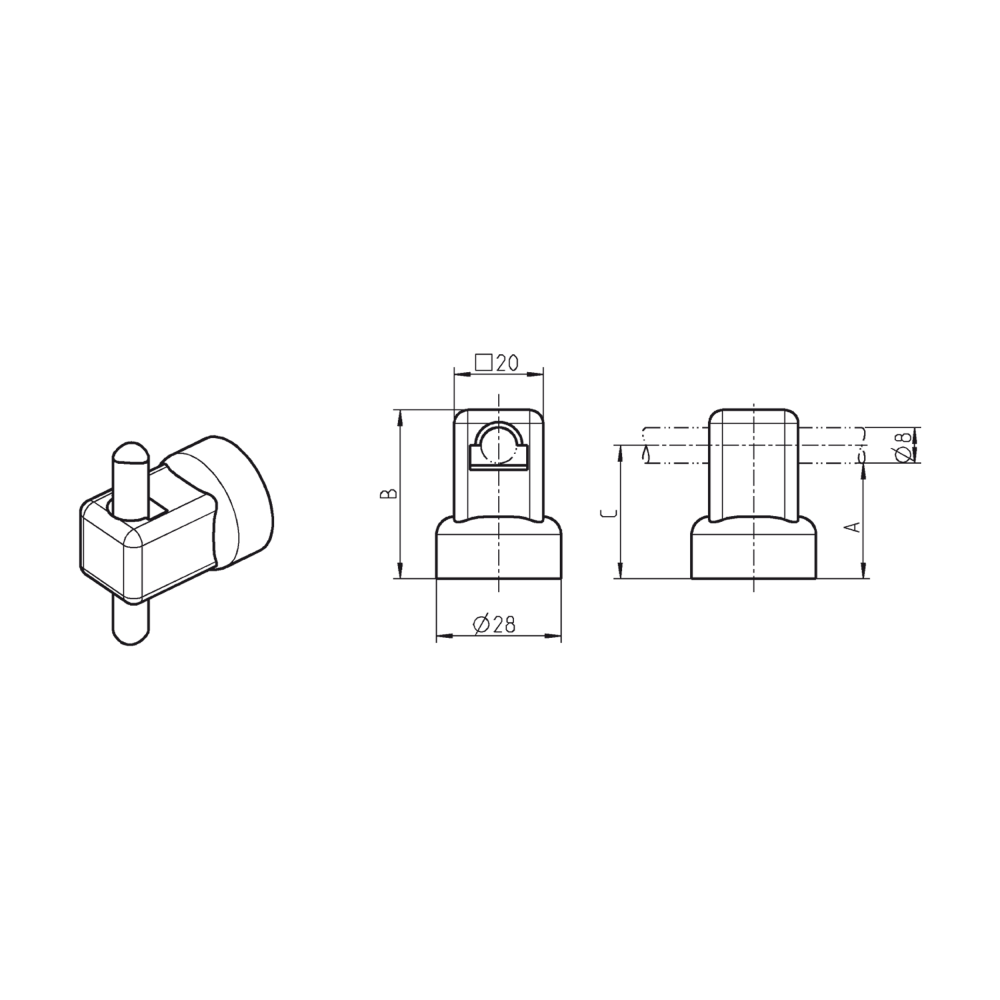

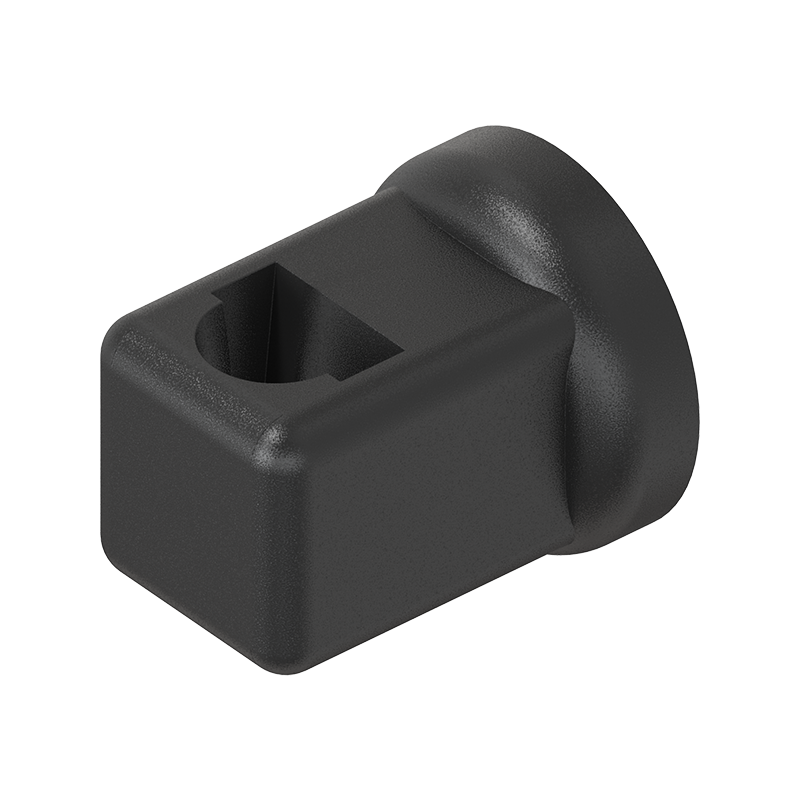

Rod guide, glass fiber reinforced polyamide, screw-on, D=8, A-dimension=20, B=32
MT101484
Rod guide manufactured in glass fiber reinforced polyamide, which is mounted by screw-on. The diameter is 8mm. The A-dimension is 20mm. The dimension B is 32mm. Weld stud M6x16 fixing. Suitable for Ø8mm round rods.
A-measure
20
B
32
C
24
Components
Rod guide
Material type
Glass fiber reinforced polyamide
Mounting type
Screw-on
Diameter in mm
8
Height in mm
0
Length in mm
0
Long description
Rod guide manufactured in glass fiber reinforced polyamide, which is mounted by screw-on. The diameter is 8mm. The A-dimension is 20mm. The dimension B is 32mm. Weld stud M6x16 fixing. Suitable for Ø8mm round rods.
